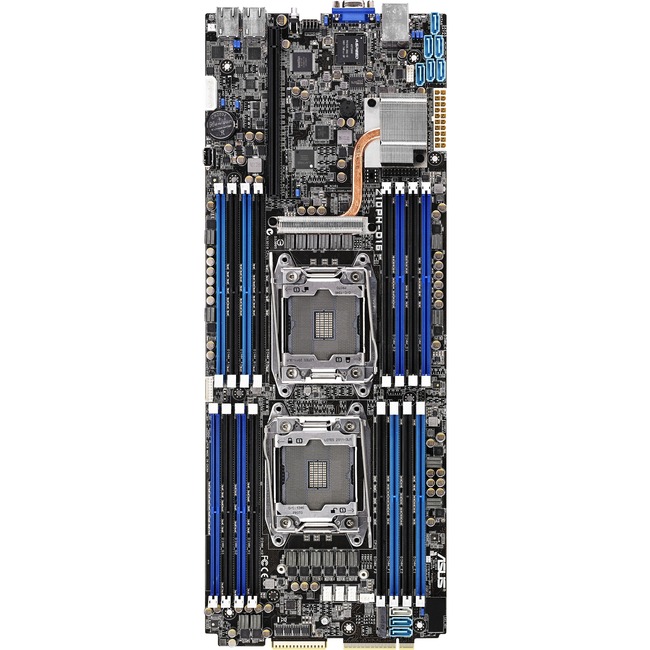

Asus Z10PH-D16 Server Motherboard - Intel C612 Chipset - Socket LGA 2011-v3 - Half SSI - 1 TB DDR4 SDRAM Maximum RAM - 16 x Memory Slots - Gigabit Ethernet - 1 x SATA Interfaces
1 TB DDR4 SDRAM Maximum RAM - 16 x Memory Slots - Gigabit Ethernet - 1 x SATA Interfaces
Chipset Manufacturer | Intel |
Chipset Model | C612 |
Graphics Controller Manufacturer | ASPEED |
Graphics Controller Memory | 32 MB |
Graphics Controller Model | AST2400 |
Graphics Memory Accessibility | Shared |
Graphics Memory Technology | VRAM |
Maximum Memory Supported | 1 TB |
Memory Speed Supported | 1600 MHz |
Memory Speed Supported | 1866 MHz |
Memory Speed Supported | 2133 MHz |
Memory Standard | DDR4-1600/PC4-12800 |
Memory Standard | DDR4-1866/PC4-14900 |
Memory Standard | DDR4-2133/PC4-17000 |
Number of Memory Slots | 16 |
Onboard Video | On-board Video Chipset |
PCI Express Standard | PCI Express 3.0 |
Processor Socket | Socket LGA 2011-v3 |
Processor Supported | Xeon |
QuickPath Interconnect | 9.60 GT/s |
Sound Controller Manufacturer | No |
Total Processor Supported | 2 |
Brand Name | Asus |
Certifications & Standards | |
Controller Type | Serial ATA/600 |
Country of origin | China |
Depth | 6.9" |
Environmental Certification | RoHS |
Environmental Certification | WEEE |
Environmentally Friendly | Yes |
Form factor | Half SSI |
Manufacturer | ASUS Computer International |
Manufacturer Part Number | Z10PHD16 |
Manufacturer Website Address | http://usa.asus.com |
Marketing Information | High Density and Best Streamlined Airflow with Optimized Efficiency
The ASUS Z10PH-D16 is a server board designed to provide high-density computing power with efficiency and best streamlined airflow. Z10PH-D16 supports the latest CPU technology to maximize processing performance along with premium components for premium efficiency and flexible expansion - so it is ideal as a computing node in HPC and IPDC markets or in any applications that require true high density. |
Memory form factor | LRDIMM |
Memory form factor | DIMM |
Memory form factor | RDIMM |
Memory Technology | DDR4 SDRAM |
Number of Network (RJ-45) Ports | 3 |
Product Model | Z10PH-D16 |
Product Name | Z10PH-D16 Server Motherboard |
Product Type | Server Motherboard |
RAID Levels | 5 |
RAID Levels | 1 |
RAID Levels | 0 |
RAID Levels | 10 |
Width | 18" |
