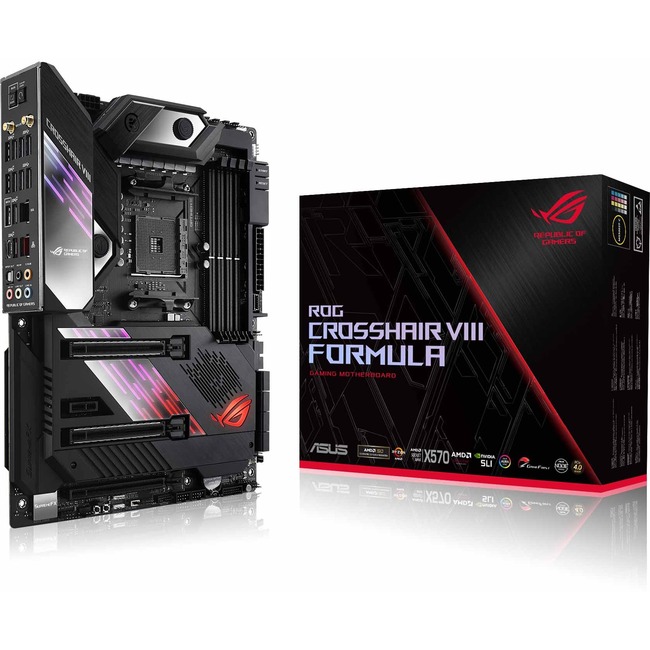

Asus ROG Crosshair VIII Formula Desktop Motherboard - AMD X570 Chipset - Socket AM4 - ATX - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11ax - 8 x SATA Interfaces
128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11ax - 8 x SATA Interfaces
| Chipset Manufacturer | AMD |
| Chipset Model | X570 |
| Maximum Memory Supported | 128 GB |
| Multi GPU Supported | SLI |
| Multi GPU Supported | CrossFireX |
| Number of Memory Slots | 4 |
| Number of PCI Express x16 Slots | 3 |
| Number of SATA Interfaces | 8 |
| Processor Socket | Socket AM4 |
| Processor Supported | Ryzen 9 |
| Processor Supported | Ryzen 3 |
| Processor Supported | Ryzen 3 PRO |
| Processor Supported | Ryzen 7 PRO |
| Processor Supported | Ryzen 5 |
| Processor Supported | Ryzen 7 |
| Processor Supported | Ryzen 5 PRO |
| S/PDIF | Yes |
| Total Number of Onboard USB Ports | 9 |
| Wireless LAN Standard | IEEE 802.11ax |
| Audio Channels | 7.1 |
| Brand Name | Asus ROG |
| Controller Type | Serial ATA/600 |
| Depth | 9.6" |
| Environmental Certification | RoHS |
| Form factor | ATX |
| Limited Warranty | 3 Year |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROG CROSSHAIR VIII FORMULA |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | AMD X570 ATX gaming motherboard with PCIe 4.0 16 power stages OptiMem III on-board Wi-Fi 6 (802.11ax) 5 Gbps LAN USB 3.2 SATA M.2 ASUS NODE and Aura Sync RGB lighting - AMD AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen™ processors and up to two M.2 drives USB 3.2 Gen2 and AMD StoreMI to maximize connectivity and speed.
- Comprehensive thermal design: Integrated Crosschill EK III active chipset heatsink M.2 aluminum heatsink and ROG Cooling Zone.
- Robust power delivery: Designed power solution with 14+2 IR3555 PowIRstages ProCool II power connectors microfine alloy chokes and 10K Japanese-made black metallic capacitors
- High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support 5G and Gigabit Ethernet courtesy of Aquantia and Intel both with ASUS LANGuard protection and support for GameFirst V software.
- 5-Way Optimization: Automated system-wide tuning providing overclocking and cooling profiles that are tailor made for your rig.
- DIY Friendly Design: Pre-mounted I/O shield ASUS SafeSlot BIOS flashback and premium components for maximum endurance.
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting including RGB headers and addressable Gen 2 RGB headers
- Industry-leading ROG audio: SupremeFX S1220 and ESS® ES9023P for enthusiast-grade audio performance driven by Japanese capacitors.
The Crosshair VIII Formula
ROG has partnered with EK Water Blocks to create an integrated VRM water-cooling solution that keeps the massive power of the latest AMD Ryzen processors under control. Keeping with the water-cooling theme the ROG Crosshair VIII Formula features on-board lighting that casts a "rainfall" design which pops against the board's mirror finish and is accented by the ROG logo. With its incredible cooling performance and gamer-oriented features ROG Crosshair VIII Formula is the perfect foundation for your next high-performance gaming rig. COOLING CHILLING DESIGN Effective cooling is extremely important so the ROG Crosshair VIII Formula provides comprehensive cooling features that enable higher performance at lower temperatures. CROSSCHILL EK III EXPERTLY TOOLED TOTALLY COOLED CROSSCHILL EK III
CrossChill EK III lets you cool with air and water. The redesigned cooling channels provide wider copper delivering up to 29.3°C-lower MOSFET temperatures on water and the standard G1/4" threaded fittings mean CrossChill EK III easily fits existing setups - so you can enjoy efficient quiet cooling with the minimum effort. COOLER BY DESIGN COMPREHENSIVE COOLING ZONE ROG Crosshair VIII Formula features the most comprehensive cooling options ever configurable via Fan Xpert 4 or the UEFI BIOS. HEATSINKS HEATSINKS Heatsinks are extremely important for motherboards as they absorb heat from critical areas to ensure components do not stagger due to overheating. With VRM chipset and M.2 heatsinks ROG Crosshair VIII Formula ensures efficient and stable operation even when pushed hard. ACTIVE CHIPSET HEATSINK ACTIVE CHIPSET HEATSINK DESIGN PCle 4.0 provides twice the bandwidth for data flowing through the chipset which creates more heat than the previous generation.
The Formula features an actively cooled heatsink to prevent throttling during sustained transfers. |
| Memory form factor | DIMM |
| Memory form factor | UDIMM |
| Memory Technology | DDR4 SDRAM |
| Number of Network (RJ-45) Ports | 2 |
| Package Contents | - Crosshair VIII Formula Desktop Motherboard
- User's Manual
- 1 x ROG Logo Plate Sticker
- 4 x SATA Power Cable
- 1 x M.2 Screw Package
- 1 x Supporting DVD
- 1 x ROG Big Sticker
- 1 x Q-Connector
- 1 x Wi-Fi Antenna(s)
- 1 x Extension Cable for RGB strips (80 cm)
- 1 x Extension Cable for Addressable LED
- 1 x ROG Coaster(s)
- 2 x ROG Weave SATA 6G Cable
- 1 x ROG Thank you Card
|
| Product Line | Crosshair VIII Formula |
| Product Name | Crosshair VIII Formula Desktop Motherboard |
| Product Type | Desktop Motherboard |
| RAID Levels | 0 |
| RAID Levels | 10 |
| RAID Levels | 1 |
| Total Number of USB Ports | 12 |
| Width | 12" |
