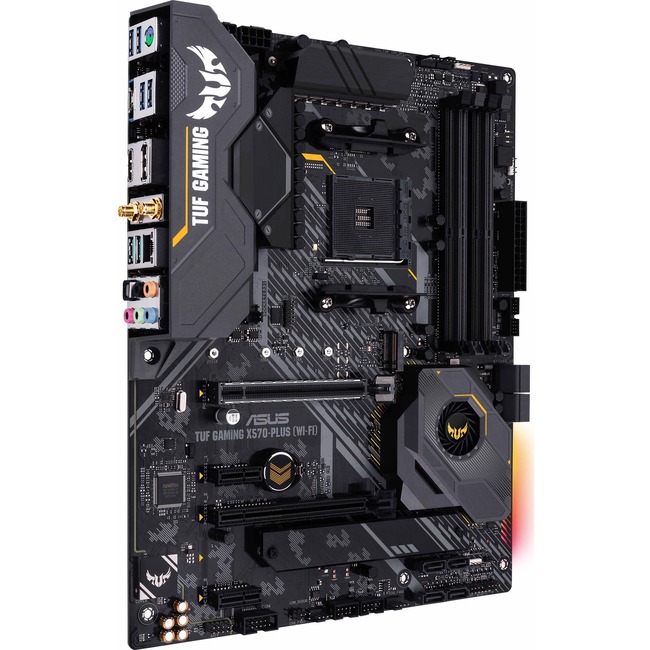

TUF GAMING X570-PLUS (WI-FI) Desktop Motherboard - AMD X570 Chipset - Socket AM4 - ATX - Ryzen 7, Ryzen 7 PRO, Ryzen 5, Ryzen 5 Pro, Ryzen 3, Ryzen 3 PRO, Ryzen 9 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11a/b/g/n/ac - HDMI - DisplayPort - 8 x SATA Interfaces
Ryzen 7, Ryzen 7 PRO, Ryzen 5, Ryzen 5 Pro, Ryzen 3, Ryzen 3 PRO, Ryzen 9 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11a/b/g/n/ac - HDMI - DisplayPort - 8 x SATA Interfaces
| Chipset Manufacturer | AMD |
| Chipset Model | X570 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 4400 MHz |
| Memory Speed Supported | 3200 MHz |
| Memory Speed Supported | 2666 MHz |
| Memory Speed Supported | 2133 MHz |
| Memory Speed Supported | 3466 MHz |
| Memory Speed Supported | 2400 MHz |
| Memory Speed Supported | 3000 MHz |
| Memory Speed Supported | 3400 MHz |
| Memory Speed Supported | 2933 MHz |
| Memory Speed Supported | 2800 MHz |
| Multi GPU Supported | CrossFireX |
| Number of Memory Slots | 4 |
| Number of PCI Express x1 Slots | 2 |
| Number of SATA Interfaces | 8 |
| Onboard Video | CPU Dependent Video |
| Processor Socket | Socket AM4 |
| Processor Supported | Ryzen 3 PRO |
| Processor Supported | Ryzen 7 PRO |
| Processor Supported | Ryzen 3 |
| Processor Supported | Ryzen 9 |
| Processor Supported | Ryzen 5 |
| Processor Supported | Ryzen 5 Pro |
| Processor Supported | Ryzen 7 |
| S/PDIF | Yes |
| Total Number of Onboard USB Ports | 6 |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
| Audio Channels | 7.1 |
| Brand Name | TUF |
| Controller Type | Serial ATA/600 |
| Depth | 9.6" |
| Environmental Certification | RoHS |
| Form factor | ATX |
| Limited Warranty | 3 Year |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | TUF GAMING X570-PLUSWI-FI |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | TUF Gaming Alliance
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts such as PC Cases power supplies CPU coolers memory kits and more. With more partnerships and components being added regularly the TUF Gaming Alliance will continue to grow even stronger.
Dr. MOS The very first time that TUF GAMING's CPU VRM utilizes 12+2 with Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into a single package delivering the power and efficiency that AMD's latest processors demand. PCB Layers Matter Bottom up from 6 layers of PCB design provides ultra-smooth and ultra-clean power delivery. It is also the savior not only for DRAM O.C. performance but also for thermal result. Active Chipset Heatsink
Dedicated cooling for unthrottled transfers With double the bandwidth via PCIe 4.0 the X570 platform poses greater thermal challenges than its X470 predecessor. We have a full package of thermal solution to deal with it. Superflo bearing fan The life cycle of PCH fan is up to 60000 hrs. which may be the longest among competitors. All PCH fan of X570 models are using a quality trusted brand - Delta. Air duct ALL X570 models quipped air conduct housing to ensure cooling path. Finned heatsink ALL PCH Heatsink of X570 models have finned design to enlarge dissipate area. PCIe Gen 4
ASUS X570 motherboards support PCI Express 4.0. A new advancement in PCIe standard doubling the bandwidth from 8GT/s to 16GT/s which is 2X faster than 8GT/s PCIe 3.0 and 3X faster than 5GT/s PCIe 2.0. Intel® Wireless-AC 9260 The Intel® Wireless-AC 9260 adapter* with integrated Intel wireless solution includes 2X2 802.11ac Wi-Fi and Bluetooth 5 allowing users a more speedy connecting experience. Realtek Exclusive Ethernet
Experience ultra-fast gaming performance with the ASUS-exclusive Realtek® L8200A Gigabit Ethernet. With performance and stability enhancements the LAN is optimized for CPU-efficient low-latency data transfers. |
| Memory form factor | DIMM |
| Memory form factor | UDIMM |
| Memory Technology | DDR4 SDRAM |
| Package Contents | - GAMING X570-PLUS (WI-FI) Desktop Motherboard
- User's Manual
- I/O Shield
- 2 x SATA 6Gb/s cable(s)
- 1 x M.2 Screw Package
- 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
- 1 x TUF GAMING Sticker
- 1 x TUF Certification card(s)
- 1 x Support DVD
- Drivers
- ASUS Utilities
- ASUS EZ Update
- Anti-virus software (OEM version)
|
| Product Model | GAMING X570-PLUS (WI-FI) |
| Product Name | GAMING X570-PLUS (WI-FI) Desktop Motherboard |
| Product Type | Desktop Motherboard |
| RAID Levels | 1 |
| RAID Levels | 10 |
| RAID Levels | 0 |
| Total Number of USB Ports | 7 |
| Width | 12" |
