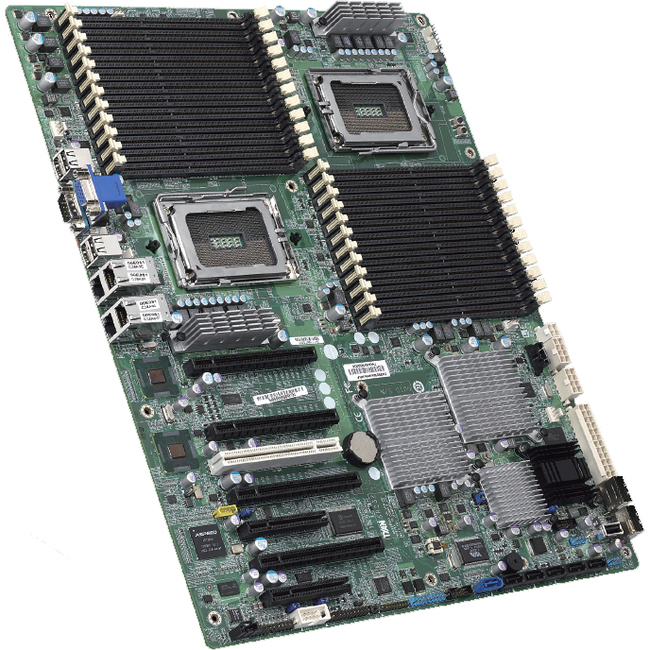

Tyan S8232 Server Motherboard - AMD SR5690 Chipset - Socket G34 LGA-1944 - SSI MEB - 256 GB DDR3 SDRAM Maximum RAM - DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - DIMM - 24 x Memory Slots - 6 x SATA Interfaces
256 GB DDR3 SDRAM Maximum RAM - DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - DIMM - 24 x Memory Slots - 6 x SATA Interfaces
| Chipset Manufacturer | AMD |
| Chipset Model | SR5690 |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Memory | 128 MB |
| Graphics Controller Model | AST2050 |
| HyperTransport Speed (MHz) | 3.2 |
| Maximum Memory Supported | 256 GB |
| Memory Speed Supported | 800 MHz |
| Memory Speed Supported | 1333 MHz |
| Memory Speed Supported | 1066 MHz |
| Memory Standard | DDR3-1333/PC3-10600 |
| Memory Standard | DDR3-800/PC3-6400 |
| Memory Standard | DDR3-1066/PC3-8500 |
| Multi GPU Supported | SLI |
| Number of Memory Slots | 24 |
| Number of PCI Express x16 Slots | 4 |
| Number of PCI Express x4 Slots | 2 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 7 |
| Onboard Video | On-board Video Chipset |
| PCI Express Standard | PCI Express 2.0 |
| Power Supply Supported | EPS12V |
| Processor Socket | Socket G34 LGA-1944 |
| Processor Supported | Opteron |
| Processor Technology | HyperTransport 3.0 Technology |
| Brand Name | Tyan |
| Buttons & Keys | Power |
| Certifications & Standards | |
| Controller Type | Serial ATA/300 |
| Depth | 13" |
| Environmental Certification | RoHS-6 |
| Environmentally Friendly | Yes |
| Form factor | SSI MEB |
| Limited Warranty | 3 Year |
| Manufacturer | Tyan Computer Corp |
| Manufacturer Part Number | S8232GM4NR |
| Manufacturer Website Address | http://www.tyan.com |
| Marketing Information | The S8232 not only empowers you in today's demanding IT environment but also offers a smooth path for future application upgradeability. All of these rich feature sets provides the S8232 with the power and flexibility to meet demanding requirements for today's IT environments. |
| Memory form factor | DIMM |
| Memory Technology | DDR3 SDRAM |
| Operating Power Consumption | 105 W |
| Package Contents | - S8232 Server Motherboard
- 1 x User Manual
- 1 x Quick Reference Guide
- 1 x Installation CD
- 1 x IO Shield
- 6 x SATA Signals Cables
|
| Package type | Retail |
| Product Model | S8232 |
| Product Name | S8232 Server Motherboard |
| Product Type | Server Motherboard |
| RAID Levels | 5 |
| RAID Levels | 0 |
| RAID Levels | 1 |
| RAID Levels | 1+0 |
| UPC Alternates | 635872030185 |
| Width | 16" |
