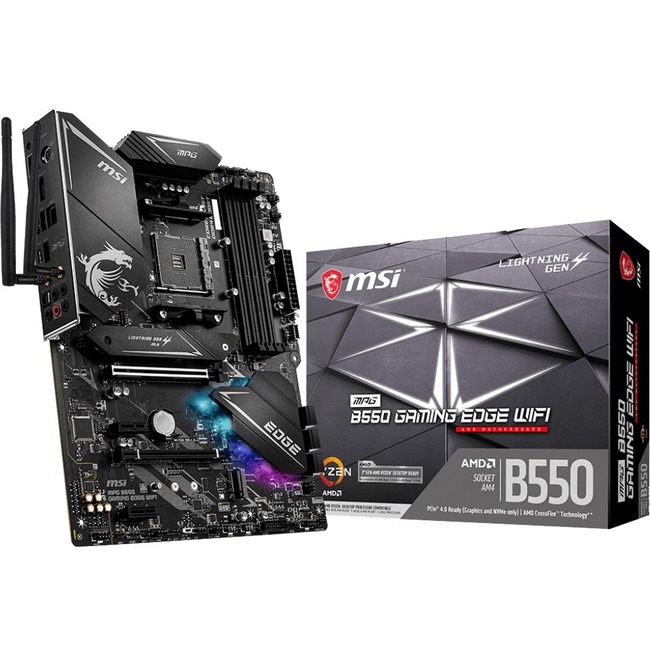

MSI MPG B550 GAMING EDGE WIFI Desktop Motherboard - AMD B550 Chipset - Socket AM4 - ATX - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 6 x SATA Interfaces
128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 6 x SATA Interfaces
| Chipset Manufacturer | AMD |
| Chipset Model | B550 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 3866 MHz |
| Memory Speed Supported | 3000 MHz |
| Memory Speed Supported | 4600 MHz |
| Memory Speed Supported | 4133 MHz |
| Memory Speed Supported | 2800 MHz |
| Memory Speed Supported | 1866 MHz |
| Memory Speed Supported | 3200 MHz |
| Memory Speed Supported | 3066 MHz |
| Memory Speed Supported | 4400 MHz |
| Memory Speed Supported | 4866 MHz |
| Memory Speed Supported | 4266 MHz |
| Memory Speed Supported | 4733 MHz |
| Memory Speed Supported | 2133 MHz |
| Memory Speed Supported | 3466 MHz |
| Memory Speed Supported | 4533 MHz |
| Memory Speed Supported | 2667 MHz |
| Memory Speed Supported | 3733 MHz |
| Memory Speed Supported | 4800 MHz |
| Memory Speed Supported | 4000 MHz |
| Memory Speed Supported | 2933 MHz |
| Memory Speed Supported | 3600 MHz |
| Memory Speed Supported | 2400 MHz |
| Multi GPU Supported | CrossFire |
| Number of Memory Slots | 4 |
| Number of Onboard USB 3.2 Ports | 3 |
| Number of PCI Express x1 Slots | 2 |
| Number of SATA Interfaces | 6 |
| Onboard Video | CPU Dependent Video |
| Processor Socket | Socket AM4 |
| Processor Supported | Ryzen 3 |
| Processor Supported | Ryzen 5 |
| Processor Supported | Ryzen 7 |
| Processor Supported | Ryzen 9 |
| S/PDIF | Yes |
| Total Number of Onboard USB Ports | 7 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Audio Channels | 7.1 |
| Controller Type | Serial ATA/600 |
| Country of origin | China |
| Depth | 9.6" |
| Form factor | ATX |
| Limited Warranty | 3 Year |
| Manufacturer | MSI |
| Manufacturer Part Number | B550GEDGEWIFI |
| Manufacturer Website Address | http://www.msi.com |
| Marketing Information | GAME IN STYLE The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications. With the MPG series transform your equipment into the center of attention and top leaderboards in style. PREMIUM
HARDWARE DESIGN With years of experience MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs evaluated a wide selection of high quality components and developed products for reliability even under extreme conditions. THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE With more cores' processors thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards. ENHANCED
PERFORMANCE High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you're a gamer prosumer or PC enthusiast. LIGHTNING GEN 4 M.2 Utilizing 3rd Gen Ryzen processors MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. CONNECTIVITY MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio advanced LAN networking capabilities USB and Mystic Light turn any gaming experience into an immerse one. HIGH-BANDWIDTH AND LOW-LATENCY NETWORK 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. MPG B550 GAMING EDGE WIFI - Support for 3rd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update
- Supports DDR4 Memory up to 4866+(OC) MHz
- Lightning Fast Game experience: PCIe 4.0 Lightning Gen 4 x4 M.2 with M.2 Shield Frozr AMD Turbo USB 3.2 GEN 2
- Enhanced Power Design: 10+2+1 Duet Rail Power Design Core Boost DDR4 Boost
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
- Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mK and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure stable and fast network connection
- Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
|
| Memory form factor | DIMM |
| Memory form factor | UDIMM |
| Memory Technology | DDR4 SDRAM |
| Package Contents | - MPG B550 GAMING EDGE WIFI Desktop Motherboard
- User Manual
- Quick Installation Guide
- SATA Cable Labels
- MSI Case Badge
- Product Registration Card
- Driver DVD
- Case Screw Guide
- 2 x SATA Cables
- 1 x Rainbow RGB LED Extension Cable
- Promotion Card
- MSI Product Catalog
|
| Product color | Black |
| Product Model | MPG B550 GAMING EDGE WIFI |
| Product Name | MPG B550 GAMING EDGE WIFI Desktop Motherboard |
| Product Type | Desktop Motherboard |
| RAID Levels | 10 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| UPC Alternates | 824142217634 |
| Width | 12" |
