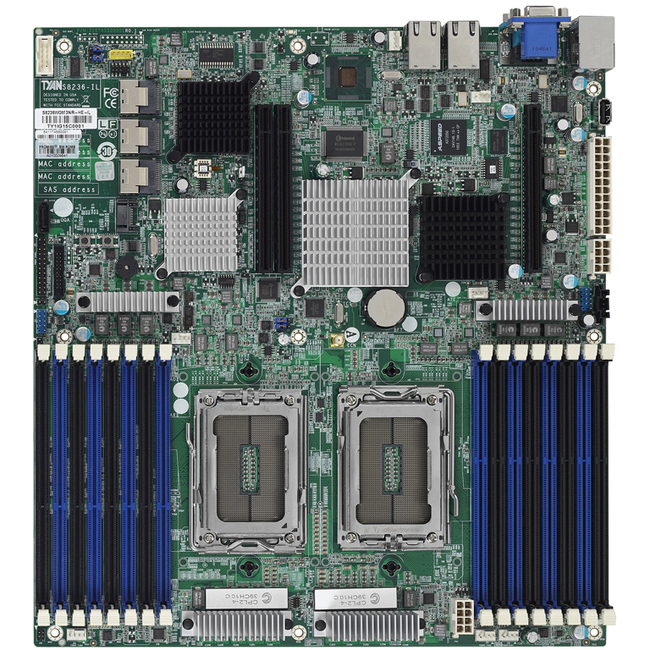

Tyan S8236-IL Server Motherboard - AMD SR5690 Chipset - Socket G34 LGA-1974 - SSI EEB - 256 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - DIMM, LRDIMM, RDIMM, UDIMM - 16 x Memory Slots - Gigabit Ethernet - 3 x SATA Interfaces
256 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - DIMM, LRDIMM, RDIMM, UDIMM - 16 x Memory Slots - Gigabit Ethernet - 3 x SATA Interfaces
| Chipset Manufacturer | AMD |
| Chipset Model | SR5690 |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2050 |
| HyperTransport Speed (GT/s) | 6.4 |
| Maximum Memory Supported | 256 GB |
| Memory Speed Supported | 1333 MHz |
| Memory Speed Supported | 1066 MHz |
| Memory Speed Supported | 800 MHz |
| Memory Speed Supported | 1600 MHz |
| Memory Standard | DDR3-800/PC3-6400 |
| Memory Standard | DDR3-1333/PC3-10600 |
| Memory Standard | DDR3-1066/PC3-8500 |
| Memory Standard | DDR3-1600/PC3-12800 |
| Number of Memory Slots | 16 |
| Number of SATA Interfaces | 3 |
| Onboard Video | On-board Video Chipset |
| PCI Express Standard | PCI Express 2.0 |
| Power Supply Supported | EPS12V |
| Processor Socket | Socket G34 LGA-1974 |
| Processor Supported | Opteron |
| Processor Technology | HyperTransport 3.0 Technology |
| Total Processor Supported | 2 |
| Brand Name | Tyan |
| Certifications & Standards | |
| Compatibility | 1U Barebone:
|
| Controller Type | Serial ATA/300 |
| Controller Type | 6Gb/s SAS |
| Depth | 13" |
| Environmental Certification | WEEE |
| Environmental Certification | China RoHS |
| Environmental Certification | RoHS-6 |
| Environmentally Friendly | Yes |
| Form factor | SSI EEB |
| Manufacturer | Tyan Computer Corp |
| Manufacturer Part Number | S8236WGM3NR-IL |
| Manufacturer Website Address | http://www.tyan.com |
| Marketing Information | AMD Opteron™ 6100/6200 series
1U/2U-optimized dual-socket server platformfor enterprise & GPGPU applications
- Dual G34 sockets support AMD Opteron™ 6100/6200 series list processors (Magny-Cours/Interlagos)
- Support (4) HyperTransport™ 3.0 linkYes bandwidth up to 25.6 GB/s @ 6.4GT/s per link
- AMD SR5690 + SR5650 + SP5100 (S8236WGM3NR-HE)
- AMD SR5690 + SP5100 (S8236WGM3NR/ S8236GM3NR)
- (16) 240-pin DDR3 DIMM slots support up to 256GB R-DDR3 1333/1066/800MHz w/ ECC memory
- (2) PCI-E Gen.2 x16 slots (S8236GM3NR/ S8236WGM3NR)
- (6) SATA-II ports via (1) Mini-SAS & (2) SATA connectors w/RAID 0 1 10 5 support
- (8) SAS 6G ports via (2) Mini-SAS connectors w/ RAID 0 1 1E10 support (S8236WGM3NR-HE/ S8236GM3NR)
- (3) GbE LAN
- Onboard BMC w/ IPMI and iKVM support
- EATX (12" x 13") form factor
|
| Memory form factor | DIMM |
| Memory form factor | UDIMM |
| Memory form factor | LRDIMM |
| Memory form factor | RDIMM |
| Memory Technology | DDR3 SDRAM |
| Package Contents | - S8236 Series S8236-IL Server Motherboard
- 1 x User's Manual / (1) Quick Ref. Guide
- 1 x TYAN Installation CD
- 1 x I/O Shield
- 2 x SATA Signal Cables / (1) Mini-SAS cable
- 3 x Mini-SAS Cables
|
| Product Model | S8236-IL |
| Product Name | S8236 Series S8236-IL Server Motherboard |
| Product Series | S8236 |
| Product Type | Server Motherboard |
| RAID Levels | 5 |
| RAID Levels | 1+0 |
| RAID Levels | 0 |
| RAID Levels | 1 |
| UPC Alternates | 635872030505 |
| Width | 12" |
