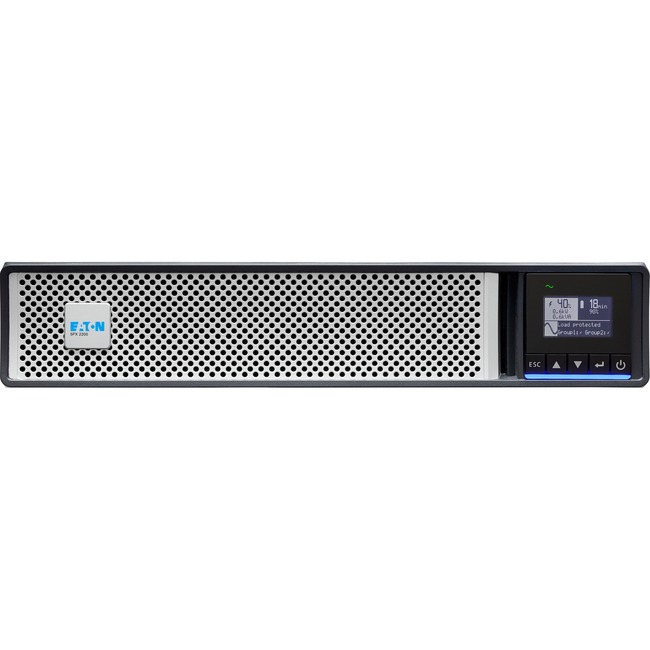

Eaton 5PX G2 2200VA 2200W 208V Line-Interactive UPS - 2 C19, 8 C13 Outlets, Cybersecure Network Card Option, Extended Run, 2U Rack/Tower - 2U Rack-mountable - 6 Minute Stand-by - 120 V AC Input - 8 x IEC 60320 C13, 2 x IEC 60320 C19
2U Rack-mountable - 6 Minute Stand-by - 120 V AC Input - 8 x IEC 60320 C13, 2 x IEC 60320 C19
| Load Capacity (VA) | 2200 VA |
| Load Capacity (W) | 2200 W |
| Receptacle Detail | 2 x IEC 60320 C19 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Application/Usage | Telecommunication |
| Application/Usage | Retail Building |
| Application/Usage | VoIP |
| Application/Usage | Server |
| Application/Usage | Enterprise |
| Application/Usage | Storage System |
| Application/Usage | Network Equipment |
| Application/Usage | Business |
| Application/Usage | Bank |
| Application/Usage | Switch |
| Application/Usage | IT Equipment |
| Backup/Run Time (Full Load) | 6 Minute |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Brand Name | Eaton |
| Country of origin | Philippines |
| Depth | 23.7" |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Height | 3.4" |
| Input frequency | 60 Hz |
| Input voltage | 120 V AC |
| Limited Warranty | 3 Year |
| Load Capacity | 2200 VA/2200 W |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 5PX2200HRTG2 |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | 2.2kVA/2.2kW/208V Battery Backup for Distributed IT Telecom or Enterprise Deployments This 5PX G2 rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts brownouts surges and line noise that can damage your valuable IT equipment or destroy data. The 5PX2200HRTG2 is ideal power management for small business education retail financial or healthcare networking components including servers VoIP phones data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating so you can connect more equipment. Reliable Expandable Battery Backup Keeps You Operational Through Power Outages The field-replaceable hot-swappable internal battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four external battery modules (5PXEBM72RTG2 sold separately) for hours of extended runtime. Optional Gigabit Network Interface Offers 24/7 Remote Access The NETWORK-M2 network card (sold separately) enables full remote configuration and management including load shedding reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2 sold separately) provides a variety of environmental monitoring capabilities including temperature and humidity conditions. Managed Outlets Protect Your Connected Components Eight C13 and two C19 managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Five outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads. |
| Package Contents | - 5PX G2 UPS
- Tower Pedestal Feet
- Four-post Rail Kit
- Quick Start Guide
- Safety Guide
- USB Cable
- RS-232 Cable
- 2 x IEC C13 to IEC C14 Jumper Cables
|
| Plug/Connector Type | NEMA L6-20P |
| Product color | Black |
| Product Name | 5PX G2 UPS |
| Product Series | 5PX G2 |
| Product Type | Line-interactive UPS |
| Rack Height | 2U |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| Status Indicators | LCD Graphical Display |
| UPC Alternates | 743172105790 |
| Weight (Approximate) | 62.20 lb |
| Width | 17.2" |
