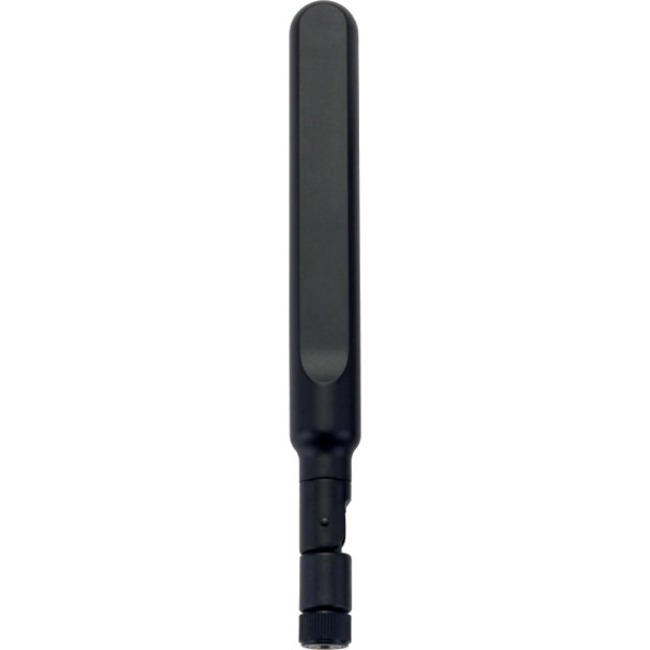

B+B SmartWorx BB-TG.10.0113 Antenna - 698 MHz to 960 MHz, 1710 MHz to 2690 MHz - Cellular Network, Gateway, Wireless Router, GPSSMA Connector
698 MHz to 960 MHz, 1710 MHz to 2690 MHz - Cellular Network, Gateway, Wireless Router, GPSSMA Connector
| Operating Frequency Range | 698 MHz to 960 MHz |
| Operating Frequency Range | 1710 MHz to 2690 MHz |
| Application/Usage | Wireless Router |
| Application/Usage | Gateway |
| Application/Usage | GPS |
| Application/Usage | Cellular Network |
| Brand Name | B+B SmartWorx |
| Connector Type | SMA |
| Diameter | 0.51" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 6.61" |
| Manufacturer | Advantech Co. Ltd |
| Manufacturer Part Number | BB-TG.10.0113 |
| Manufacturer Website Address | http://www.advantech.com |
| Marketing Information | The BB-TG.10.0113 Triton dipole Antenna designed primarily for use with 3G and 4G Cellular Gateways and Routers with assisted GPS. It does not require a ground-plane to connect to. It has a quality robust PC+ABS housing. The antenna has a SMA(M) connector. It can be used straight or hinged 90 degrees. The antenna has a wide-band high efficiency response on nearly all 4G/3G/2G frequency bands worldwide and can also be used for other cellular and wireless applications such as GSM and 2.4GHz Wi-Fi. |
| Product Name | BB-TG.10.0113 Antenna |
| Product Type | Antenna |
| Weight (Approximate) | 0.85 oz |
| Width | 0.71" |
