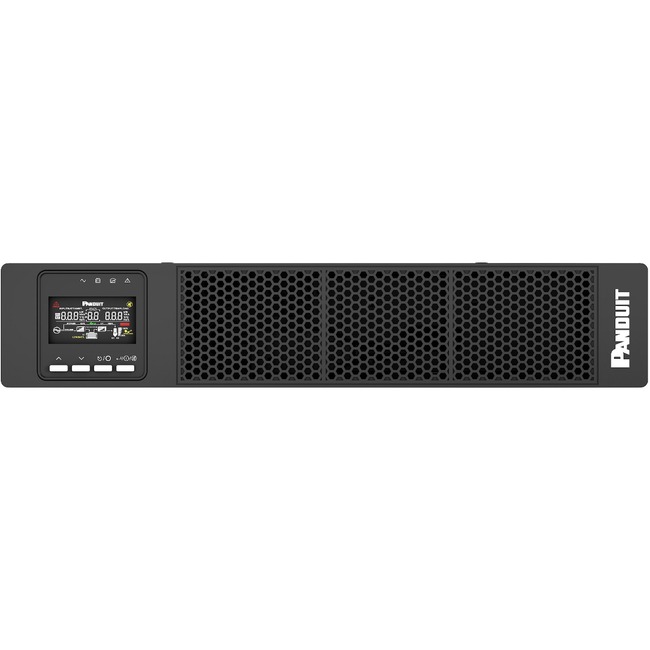

Panduit SmartZone U03N11V 3000VA Rack/Tower UPS

Panduit SmartZone U03N11V 3000VA Rack/Tower UPS

New
Panduit SmartZone U03N11V 3000VA Rack/Tower UPS - 2U Rack/Tower, Rail Mountable - AVR - 6 Hour Recharge - 120 V AC Input - 100 V AC, 110 V AC, 120 V AC, 115 V AC, 125 V AC Output - Single Phase - Serial Port - 1 x NEMA L5-30R, 4 x NEMA 5-20R
0 Review(s) Item: U03N11V | By: Panduit |  0 In Stock

Sorry This Product is Currently not Available to Buy.

  • Rack/Tower convertible: Supports rack /tower installation with rotatable colorful LCD display
  • Online Double Conversion with fully digital control: Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR) and surge protection
  • Wide input voltage range: 110-300 VAC for EU units and 55-150 VAC for NA units, covering extended voltage range, applicable for severe situation such as large power grid fluctuation
  • High efficiency: Up to 96.5%, reducing the energy waste and the cost of electricity
  • Energy savings: High Efficiency on Smart ECO mode for Online Double Conversion models
  • Green design: RoHS and Reach, CE/UL/ENERGY STAR® 2.0 compliant for North America units
  • Output unity power factor: Means more active power for IT equipment load
  • Input power factor: Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
    • More Details
Sorry This Product is Currently not Available to Buy.

You may be also interested
r1
-31% Quick View
Cisco Mounting Tray for Cable
$2,434.97 $3,506.58 0 Review(s)
r1
-31% Quick View
Cisco Surge-Gap Tap 1.25 GHz, 4-way, 14 dB
$20.20 $29.10 0 Review(s)
r1
-17% Quick View
Schneider Electric Galaxy VS Seismic Kit for Maintenance Bypass Cabinet
$203.49 $245.00 0 Review(s)
r1
-33% Quick View
APC by Schneider Electric Replacement Battery Cartridge #135
$117.75 $177.00 0 Review(s)
r1
-30% Quick View
Eaton 8-Slot External Battery Enclosure
$3,884.13 $5,559.00 0 Review(s)
r1
Quick View
Tripp Lite HDMI Over Cat6 Extender Kit w/ Power Over Cable 4K@60Hz 4:4:4
$373.73 0 Review(s)
r1
-11% Quick View
Vaddio PoE+ Injector
$140.76 $158.00 0 Review(s)
r1
-18% Quick View
Schneider Electric Roof Height Adapter, VX42U to SX48U, 600mm
$935.20 $1,140.00 0 Review(s)
r1
-34% Quick View
APC by Schneider Electric Mounting Rail Kit for UPS
$235.40 $355.00 0 Review(s)
r1
Quick View
Tycon Power TP-POE-48GD POE Injector
$52.56 $48.95 0 Review(s)
r1
-99% Quick View
APC by Schneider Electric Power Distribution Module
$7.82 $943.00 0 Review(s)
r1
-12% Quick View
Wasp Battery Cover for WDT3200/WDT3250
$11.46 $12.99 0 Review(s)
r1
-17% Quick View
APC by Schneider Electric NetShelter SX AR3100X605 Rack Cabinet
$2,529.64 $3,045.00 0 Review(s)
r1
-36% Quick View
Middle Atlantic Grounding Wire (10 Pcs)
$38.18 $60.00 0 Review(s)
r1
-20% Quick View
HPE Connector Kit
$172.54 $215.00 0 Review(s)
r1
Quick View
Tycon Power Passive POE to 802.3af /at Converter
$61.84 $61.95 0 Review(s)
r1
-18% Quick View
APC by Schneider Electric Galaxy VS Maintenance Bypass Cabinet, Single Unit, 10-100kW, 77.6in Tall
$8,691.01 $10,545.00 0 Review(s)
r1
-30% Quick View
APC by Schneider Electric NetShelter SV 48U 1200mm Deep Side Panel Black
$359.31 $511.00 0 Review(s)
r1
-32% Quick View
Vertiv Liebert 9 Ah, 288V External Battery Cabinet for Liebert GXT4-8000RT208 and GXT4-10000RT208
$2,103.54 $3,076.00 0 Review(s)
r1
-25% Quick View
APC by Schneider Electric Power Distribution Module
$666.05 $894.00 0 Review(s)
Panduit SmartZone U03N11V 3000VA Rack/Tower UPS - 2U Rack/Tower, Rail Mountable - AVR - 6 Hour Recharge - 120 V AC Input - 100 V AC, 110 V AC, 120 V AC, 115 V AC, 125 V AC Output - Single Phase - Serial Port - 1 x NEMA L5-30R, 4 x NEMA 5-20R
2U Rack/Tower, Rail Mountable - AVR - 6 Hour Recharge - 120 V AC Input - 100 V AC, 110 V AC, 120 V AC, 115 V AC, 125 V AC Output - Single Phase - Serial Port - 1 x NEMA L5-30R, 4 x NEMA 5-20R

Product Specifications

Backup/Run Time With External Battery Cabinet (Full Load)4.60 Minute
Backup/Run Time With External Battery Cabinet (Full Load)4.60 Minute
Backup/Run Time With External Battery Cabinet (Full Load)4.60 Minute
Backup/Run Time With External Battery Cabinet (Half Load)14.10 Minute
Backup/Run Time With External Battery Cabinet (Half Load)14.10 Minute
Backup/Run Time With External Battery Cabinet (Half Load)14.10 Minute
DC System Voltage72 V DC
DC System Voltage72 V DC
DC System Voltage72 V DC
Load Capacity (VA)3000 VA
Load Capacity (VA)3000 VA
Load Capacity (VA)3000 VA
Load Capacity (W)3000 W
Load Capacity (W)3000 W
Load Capacity (W)3000 W
Maximum Operating Elevation9842.52 ft
Maximum Operating Elevation9842.52 ft
Maximum Operating Elevation9842.52 ft
Output Frequency60 Hz
Output Frequency60 Hz
Output Frequency60 Hz
PhaseSingle Phase
PhaseSingle Phase
PhaseSingle Phase
Receptacle Detail4 x NEMA 5-20R
Receptacle Detail1 x NEMA L5-30R
Receptacle Detail1 x NEMA L5-30R
Receptacle Detail1 x NEMA L5-30R
Receptacle Detail4 x NEMA 5-20R
Receptacle Detail4 x NEMA 5-20R
Storage Temperature-13°F (-25°C) - 131°F (55°C)
Storage Temperature-13°F (-25°C) - 131°F (55°C)
Storage Temperature-13°F (-25°C) - 131°F (55°C)
Waveform TypePure Sine Wave
Waveform TypePure Sine Wave
Waveform TypePure Sine Wave
Additional Warranty Information
  • 3 Years for UPS
  • 2 Years for Internal Battery and EBP
Additional Warranty Information
  • 3 Years for UPS
  • 2 Years for Internal Battery and EBP
Additional Warranty Information
  • 3 Years for UPS
  • 2 Years for Internal Battery and EBP
Application/UsageComputer
Application/UsageEnterprise
Application/UsageIT Equipment
Application/UsageComputer
Application/UsageEnterprise
Application/UsageData Center
Application/UsageEdge Computing
Application/UsageIT Equipment
Application/UsageData Center
Application/UsageEdge Computing
Application/UsageData Center
Application/UsageEdge Computing
Application/UsageIT Equipment
Application/UsageEnterprise
Application/UsageComputer
Battery capacity9000 mAh
Battery capacity9000 mAh
Battery capacity9000 mAh
Battery ChemistrySealed Lead Acid (VRLA)
Battery ChemistrySealed Lead Acid (VRLA)
Battery ChemistrySealed Lead Acid (VRLA)
Battery life5 Year
Battery life5 Year
Battery life5 Year
Battery Size12V
Battery Size12V
Battery Size12V
Brand NamePanduit
Brand NamePanduit
Brand NamePanduit
Dataline ProtectionRJ-45
Dataline ProtectionRJ-45
Dataline ProtectionRJ-45
Depth23.6"
Depth23.6"
Depth23.6"
Environmental CertificationREACH
Environmental CertificationENERGY STAR 2.0
Environmental CertificationRoHS
Environmental CertificationRoHS
Environmental CertificationENERGY STAR 2.0
Environmental CertificationREACH
Environmental CertificationENERGY STAR 2.0
Environmental CertificationRoHS
Environmental CertificationREACH
Form factorRack/Tower
Form factorRack/Tower
Form factorRail Mountable
Form factorRail Mountable
Form factorRail Mountable
Form factorRack/Tower
Height3.4"
Height3.4"
Height3.4"
Hot SwappableYes
Hot SwappableYes
Hot SwappableYes
Input frequency70 Hz
Input frequency70 Hz
Input frequency70 Hz

Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.
