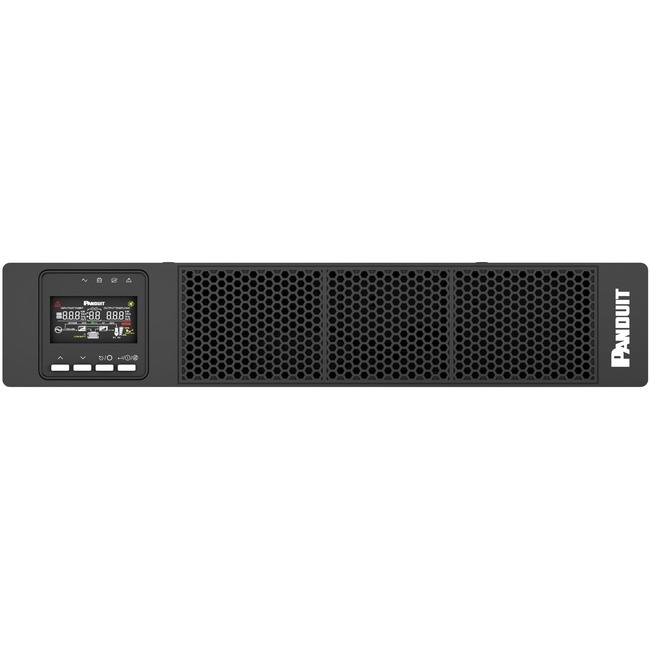

Panduit SmartZone U03S11L 3000VA Rack/Tower/Compact UPS - 2U Rack/Tower/Compact, Rail Mountable - AVR - 4 Hour Recharge - 120 V AC Input - 100 V AC, 110 V AC, 115 V AC, 120 V AC, 125 V AC Output - Single Phase - Serial Port - 1 x NEMA L5-30R, 2 x NEMA 5-20R
2U Rack/Tower/Compact, Rail Mountable - AVR - 4 Hour Recharge - 120 V AC Input - 100 V AC, 110 V AC, 115 V AC, 120 V AC, 125 V AC Output - Single Phase - Serial Port - 1 x NEMA L5-30R, 2 x NEMA 5-20R
| Backup/Run Time With External Battery Cabinet (Full Load) | 9 Minute |
| Backup/Run Time With External Battery Cabinet (Full Load) | 9 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 22 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 22 Minute |
| DC System Voltage | 76.8 V DC |
| DC System Voltage | 76.8 V DC |
| Load Capacity (VA) | 3000 VA |
| Load Capacity (VA) | 3000 VA |
| Load Capacity (W) | 2700 W |
| Load Capacity (W) | 2700 W |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Operating Elevation | 9842.52 ft |
| Output Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Phase | Single Phase |
| Phase | Single Phase |
| Receptacle Detail | 1 x NEMA L5-30R |
| Receptacle Detail | 1 x NEMA L5-30R |
| Receptacle Detail | 2 x NEMA 5-20R |
| Receptacle Detail | 2 x NEMA 5-20R |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Waveform Type | Pure Sine Wave |
| Waveform Type | Pure Sine Wave |
| Additional Warranty Information | 5 Years (UPS & Battery) |
| Additional Warranty Information | 5 Years (UPS & Battery) |
| Application/Usage | Computer |
| Application/Usage | Enterprise |
| Application/Usage | Edge Computing |
| Application/Usage | Enterprise |
| Application/Usage | IT Equipment |
| Application/Usage | Computer |
| Application/Usage | Data Center |
| Application/Usage | IT Equipment |
| Application/Usage | Data Center |
| Application/Usage | Edge Computing |
| Battery Chemistry | Lithium-Ion (LiFePO4) |
| Battery Chemistry | Lithium-Ion (LiFePO4) |
| Battery life | 10 Year |
| Battery life | 10 Year |
| Brand Name | Panduit |
| Brand Name | Panduit |
| Dataline Protection | RJ-45 |
| Dataline Protection | RJ-45 |
| Depth | 25.2" |
| Depth | 25.2" |
| Environmental Certification | REACH |
| Environmental Certification | ENERGY STAR 2.0 |
| Environmental Certification | RoHS |
| Environmental Certification | ENERGY STAR 2.0 |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Form factor | Rail Mountable |
| Form factor | Rack/Tower/Compact |
| Form factor | Rail Mountable |
| Form factor | Rack/Tower/Compact |
| Height | 3.4" |
| Height | 3.4" |
| Hot Swappable | Yes |
| Hot Swappable | Yes |
| Input voltage | 120 V AC |
| Input voltage | 120 V AC |
| Input Voltage Range | 75 V AC - 146 V AC |
| Input Voltage Range | 75 V AC - 146 V AC |
| Limited Warranty | 5 Year |
| Limited Warranty | 5 Year |
| Load Capacity | 3000 VA/2700 W |
| Load Capacity | 3000 VA/2700 W |
| Manufacturer | PANDUIT CORP |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | U03S11L |
| Manufacturer Part Number | U03S11L |
| Manufacturer Website Address | http://www.panduit.com |
| Manufacturer Website Address | http://www.panduit.com |
| Marketing Information | The Panduit ® SmartZone™ Intelligent Rack UPS with compact high capacity and long life Lithium Ion battery 1-3kVA single phase 120 V Line-Interactive unit and 230 V unit with pure Online Double Conversion system that delivers highly efficient and reliable power protection and backup power for your computer IT equipment. With excellent electrical performance enhanced intelligent monitoring and network functions and complying with EMC and safety standards to meet the continually growing power demands of Data Center Enterprise and Edge IT equipment. |
| Marketing Information | The Panduit ® SmartZone™ Intelligent Rack UPS with compact high capacity and long life Lithium Ion battery 1-3kVA single phase 120 V Line-Interactive unit and 230 V unit with pure Online Double Conversion system that delivers highly efficient and reliable power protection and backup power for your computer IT equipment. With excellent electrical performance enhanced intelligent monitoring and network functions and complying with EMC and safety standards to meet the continually growing power demands of Data Center Enterprise and Edge IT equipment. |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Output voltage | 125 V AC |
| Output voltage | 100 V AC |
| Output voltage | 115 V AC |
| Output voltage | 125 V AC |
| Output voltage | 100 V AC |
| Output voltage | 110 V AC |
| Output voltage | 115 V AC |
| Output voltage | 110 V AC |
| Plug/Connector Type | NEMA L5-30P |
| Plug/Connector Type | NEMA L5-30P |
| Product color | Black |
| Product color | Black |
| Product Line | SmartZone |
| Product Line | SmartZone |
| Product Name | SmartZone U03S11L 3000VA Rack/Tower/Compact UPS |
| Product Name | SmartZone U03S11L 3000VA Rack/Tower/Compact UPS |
| Product Type | Line-interactive UPS |
| Product Type | Line-interactive UPS |
| Rack Height | 2U |
| Rack Height | 2U |
| Receptacle Type | NEMA 5-20R |
