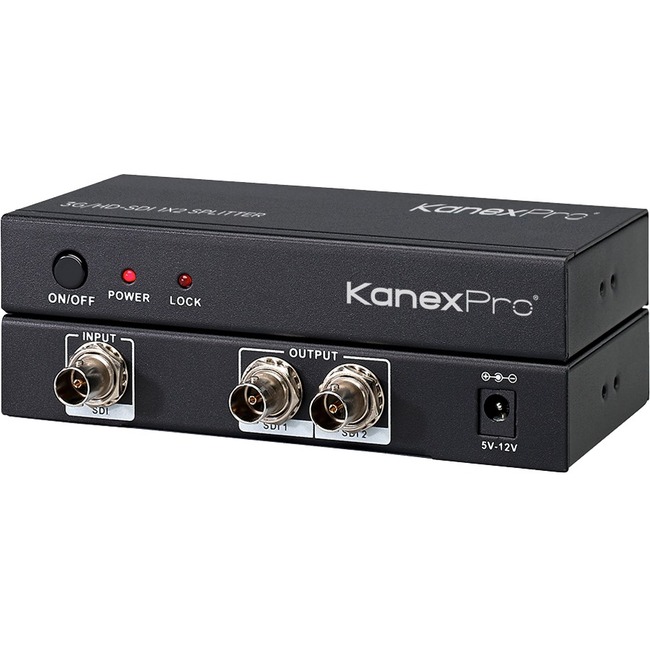

KanexPro 3G /HD-SDI 1x2 Distribution Amplifier

Name: KanexPro 3G /HD-SDI 1x2 Distribution Amplifier
Brand: KanexPro
SKU: 813982020474
Price: 102.33 USD

New

KanexPro 3G /HD-SDI 1x2 Distribution Amplifier - 1920 x 1080 - 984.25 ft Maximum Operating Distance

0 Review(s) Item: SP-SDIX2 | By: KanexPro | 0 In Stock

Sorry This Product is Currently not Available to Buy.

Get the highest quality 3G SDI distribution to 2 SDI monitors
Outputs video on 2 separate buffered and re-clocked BNC ports.
Built-in equalizer for I/O drive at long distances up to 300 meters
Supports embedded audio
Supports multiple video resolutions:
SDI 525i, 625i
HD: 720p 24, 25,30,50 & 60 Hz.
HD: 1080i 50 & 60 Hz.
HD: 1080p 24, 25,30, 50 & 60 Hz.
3G: 1080p 50/60Hz.

More Details

Sorry This Product is Currently not Available to Buy.

You may be also interested

Description
Reviews

KanexPro 3G /HD-SDI 1x2 Distribution Amplifier - 1920 x 1080 - 984.25 ft Maximum Operating Distance
1920 x 1080 - 984.25 ft Maximum Operating Distance

Product Specifications

BNC In	Yes
BNC In	Yes
BNC In	Yes
Number of BNC Inputs	1
Number of BNC Inputs	1
Number of BNC Inputs	1
Number of BNC Outputs	2
Number of BNC Outputs	2
Number of BNC Outputs	2
Depth	5.7"
Depth	5.7"
Depth	5.7"
Height	1"
Height	1"
Height	1"
Input voltage	12 V DC
Input voltage	12 V DC
Input voltage	12 V DC
Limited Warranty	3 Year
Limited Warranty	3 Year
Limited Warranty	3 Year
Manufacturer	KanexPro
Manufacturer	KanexPro
Manufacturer	KanexPro
Manufacturer Part Number	SP-SDIX2
Manufacturer Part Number	SP-SDIX2
Manufacturer Part Number	SP-SDIX2

Manufacturer Website Address	http://www.kanexpro.com
Manufacturer Website Address	http://www.kanexpro.com
Manufacturer Website Address	http://www.kanexpro.com
Marketing Information	The KanexPro 1x2 SDI unit can split re-clock and amplify SDI source video to 2 SDI outputs providing full HD 1080p resolution to up to 2 displays simultaneously for faster broadcasting and production. The splitter accepts one SDI input from the SD-SDI HD-SDI or 3G-SDI video source such as VTR SDI recorders and other sources. After replicating the signal perfectly it automatically deploys cable equalization to simultaneously transmit SDI signals as far as 1000 feet (300 m) over 8 x BNC coax runs to 2 monitors. For HD-SDI video the splitter goes up to 500 feet (150 m) and for 3G-SDI video up to 328 feet (100 m). Applications: Ideally used with SDI based surveillance systems rental & staging facilities post-production TV studio digital cinema or other A/V applications where you need to split and extend from a camera or other device equipped with 3G/HD/SD-SDI outputs to dual SDI-compliant displays or video processors.
Marketing Information	The KanexPro 1x2 SDI unit can split re-clock and amplify SDI source video to 2 SDI outputs providing full HD 1080p resolution to up to 2 displays simultaneously for faster broadcasting and production. The splitter accepts one SDI input from the SD-SDI HD-SDI or 3G-SDI video source such as VTR SDI recorders and other sources. After replicating the signal perfectly it automatically deploys cable equalization to simultaneously transmit SDI signals as far as 1000 feet (300 m) over 8 x BNC coax runs to 2 monitors. For HD-SDI video the splitter goes up to 500 feet (150 m) and for 3G-SDI video up to 328 feet (100 m). Applications: Ideally used with SDI based surveillance systems rental & staging facilities post-production TV studio digital cinema or other A/V applications where you need to split and extend from a camera or other device equipped with 3G/HD/SD-SDI outputs to dual SDI-compliant displays or video processors.
Marketing Information	The KanexPro 1x2 SDI unit can split re-clock and amplify SDI source video to 2 SDI outputs providing full HD 1080p resolution to up to 2 displays simultaneously for faster broadcasting and production. The splitter accepts one SDI input from the SD-SDI HD-SDI or 3G-SDI video source such as VTR SDI recorders and other sources. After replicating the signal perfectly it automatically deploys cable equalization to simultaneously transmit SDI signals as far as 1000 feet (300 m) over 8 x BNC coax runs to 2 monitors. For HD-SDI video the splitter goes up to 500 feet (150 m) and for 3G-SDI video up to 328 feet (100 m). Applications: Ideally used with SDI based surveillance systems rental & staging facilities post-production TV studio digital cinema or other A/V applications where you need to split and extend from a camera or other device equipped with 3G/HD/SD-SDI outputs to dual SDI-compliant displays or video processors.
Maximum Operating Distance	984.25 ft
Maximum Operating Distance	984.25 ft
Maximum Operating Distance	984.25 ft
Maximum Video Resolution	1920 x 1080
Maximum Video Resolution	1920 x 1080
Maximum Video Resolution	1920 x 1080
Product Name	3G /HD-SDI 1x2 Distribution Amplifier
Product Name	3G /HD-SDI 1x2 Distribution Amplifier
Product Name	3G /HD-SDI 1x2 Distribution Amplifier
Product Type	Audio/Video Distribution Amplifier
Product Type	Audio/Video Distribution Amplifier
Product Type	Audio/Video Distribution Amplifier
UPC Alternates	813982020474
UPC Alternates	813982020474
UPC Alternates	813982020474
Weight (Approximate)	11.29 oz
Weight (Approximate)	11.29 oz
Weight (Approximate)	11.29 oz
Width	2.8"
Width	2.8"
Width	2.8"
