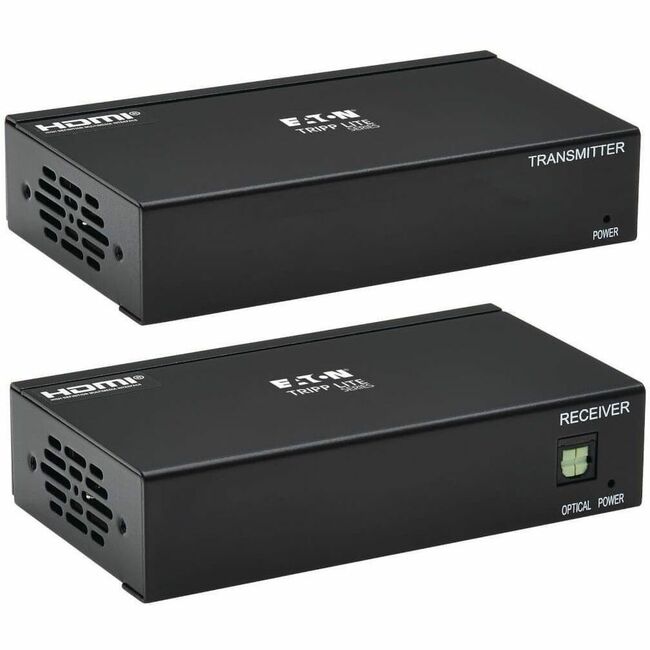

Tripp Lite HDMI Over Cat6 Extender Kit Transmitter/Receiver 4K60Hz HDR PoC

Features | Dual-Output Extender Kit Ideal for Digital Signage in Schools Restaurants and Lecture Halls
This complete transmitter and receiver system is recommended for video presentations in conference rooms schools trade shows meeting facilities houses of worship retail settings hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.

Extends a 4K A/V Transmission up to 230 ft....or More
The B127A-2A1-BHBH extends 4K signals from an HDMI source device to two HDMI displays up to 230 feet (70.1 meters) away via user-supplied Cat6 cabling. By adding a Tripp Lite B127A-010-H HDMI repeater (sold separately) to the application you can extend the signal up to 400 feet (121.9 meters).

Transmits Crystal-Clear 4K Video with Multi-Channel Audio HDR and 4:4:4 Color
The B127A-2A1-BHBH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz as specified by HDMI 2.0 with 7.1-channel surround sound audio. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution
To monitor the video signal being extended to the receiver connect a 4K display to the transmitter's local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities so the connected monitor must also support 4K/60 Hz to function properly.

Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
Power over Cable (PoC) technology powers the transmitter or receiver over Cat6 cable. LEDs indicate when the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the unit where needed without worrying about finding a nearby AC outlet.

Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter and receiver work right out of the package with no software required. Mounting hardware is included for installing both units on a wall pole or 19-inch rack. Connect the transmitter to the source with a user-supplied HDMI cable (such as Tripp Lite's P568- or P569-Series). Then connect the receiver to the displays with user-supplied HDMI cables. Finally connect the two units with user-supplied Cat6 cable (such as Tripp Lite N202-Series).

TAA-Compliant for GSA Schedule Purchases
The B127A-2A1-BHBH is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Typical Applications

• Extend video signals from one room to another using Cat6 cable which can pass through conduit to meet building codes
• Gain flexibility in where the units are placed with the freedom to move and relocate one away from an AC outlet
• Improve the line of sight for digital signage in a hotel restaurant theater house of worship trade show or other location

System Requirements

• Source device with HDMI output (Blu-ray player cable box laptop)
• Display device(s) with HDMI input (HDTV projector monitor)

Features | Dual-Output Extender Kit Ideal for Digital Signage in Schools Restaurants and Lecture Halls
This complete transmitter and receiver system is recommended for video presentations in conference rooms schools trade shows meeting facilities houses of worship retail settings hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.

Extends a 4K A/V Transmission up to 230 ft....or More
The B127A-2A1-BHBH extends 4K signals from an HDMI source device to two HDMI displays up to 230 feet (70.1 meters) away via user-supplied Cat6 cabling. By adding a Tripp Lite B127A-010-H HDMI repeater (sold separately) to the application you can extend the signal up to 400 feet (121.9 meters).

Transmits Crystal-Clear 4K Video with Multi-Channel Audio HDR and 4:4:4 Color
The B127A-2A1-BHBH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz as specified by HDMI 2.0 with 7.1-channel surround sound audio. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution
To monitor the video signal being extended to the receiver connect a 4K display to the transmitter's local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities so the connected monitor must also support 4K/60 Hz to function properly.

Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
Power over Cable (PoC) technology powers the transmitter or receiver over Cat6 cable. LEDs indicate when the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the unit where needed without worrying about finding a nearby AC outlet.

Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter and receiver work right out of the package with no software required. Mounting hardware is included for installing both units on a wall pole or 19-inch rack. Connect the transmitter to the source with a user-supplied HDMI cable (such as Tripp Lite's P568- or P569-Series). Then connect the receiver to the displays with user-supplied HDMI cables. Finally connect the two units with user-supplied Cat6 cable (such as Tripp Lite N202-Series).

TAA-Compliant for GSA Schedule Purchases
The B127A-2A1-BHBH is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Typical Applications

• Extend video signals from one room to another using Cat6 cable which can pass through conduit to meet building codes
• Gain flexibility in where the units are placed with the freedom to move and relocate one away from an AC outlet
• Improve the line of sight for digital signage in a hotel restaurant theater house of worship trade show or other location

System Requirements

• Source device with HDMI output (Blu-ray player cable box laptop)
• Display device(s) with HDMI input (HDTV projector monitor)

• 1 x Transmitter
• 1 x Receiver
• External power supply (Input: 100-240V 50/60 Hz 0.6A; Output: 24V 1A)
• 4 x International plug adapters (North America Europe U.K. and Australia)
• Mounting Hardware
• Owner's Manual

• 1 x Transmitter
• 1 x Receiver
• External power supply (Input: 100-240V 50/60 Hz 0.6A; Output: 24V 1A)
• 4 x International plug adapters (North America Europe U.K. and Australia)
• Mounting Hardware
• Owner's Manual
