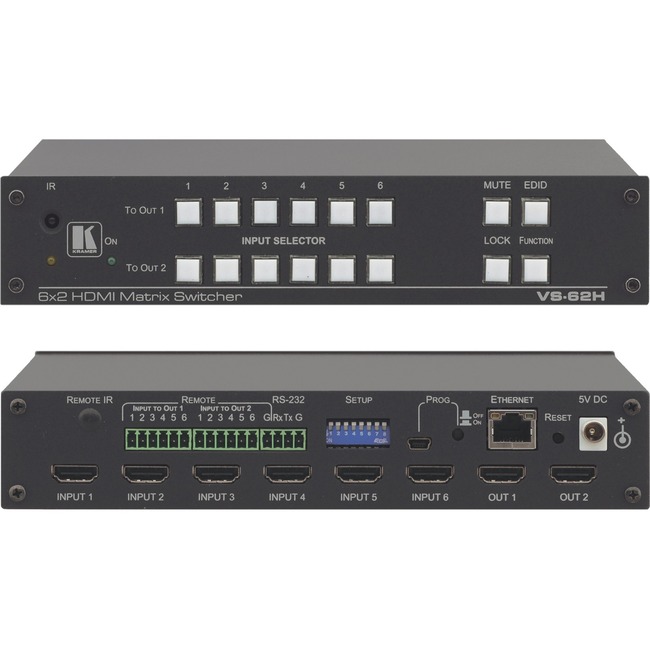

Kramer VS-62H 6x2 4K HDMI Matrix Switcher - Blu-ray Disc Player, TV, PC, HDTV Compatible - 1Serial, 1 x RJ-45 Network, 1Mini USB, 6 x HDMI Digital Audio/Video In, 2 x HDMI Digital Audio/Video Out, 1 x 3.5mm Infrared, Terminal Block
Blu-ray Disc Player, TV, PC, HDTV Compatible - 1Serial, 1 x RJ-45 Network, 1Mini USB, 6 x HDMI Digital Audio/Video In, 2 x HDMI Digital Audio/Video Out, 1 x 3.5mm Infrared, Terminal Block
| Brand Name | Kramer |
| Depth | 6.5" |
| Device Supported | TV |
| Device Supported | HDTV |
| Device Supported | PC |
| Device Supported | Blu-ray Disc Player |
| Height | 1.7" |
| Infrared | Yes |
| Limited Warranty | 7 Year |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | VS-62H |
| Manufacturer Website Address | http://www.kramerelectronics.com |
| Marketing Information | The VS-62H is a high-quality 6x2 matrix switcher for HDMI signals. It reclocks and equalizes the signals and can route any input to either or both outputs simultaneously.
- Max. Data Rate - 8.91Gbps data rate (2.97Gbps per graphics channel).
- Max. Resolution - Up to 4K (Ultra HD) and WUXGA.
- HDCP Compliant.
- HDMI Support - 3D Deep Color x.v.Color™ Lip Sync ARC HEAC pass-through Dolby® TrueHD Dolby Digital Plus DTS-HD® and 7.1 multi-channel audio.
- EDID Capture - Copies and stores the EDID from a display device.
- Programmable Step-In Functionality - When used in conjunction with compatible step-in devices such as the SID-X3N (using an HDMI cable that supports HEC the HDMI Ethernet Channel).
- True Video Clock Detection.
- Auto Switching Option - For either or both outputs last-connected or priority switching.
- Non-Volatile EDID Storage.
- Kramer reKlocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
- Lock Button - Prevents unwanted tampering with the front panel.
- Internal Pattern Generator.
- Kramer Protocol 3000 Support.
- Embedded Web Pages - Provide remote configuration and operation.
- Static or Dynamic DHCP IP Addressing.
- Flexible Control Options - Front panel buttons IR remote (included) optional external remote IR receiver RS-232 Ethernet contact closure embedded Web server.
- USB Port - For upgrading firmware.
- Size - Compact Desktop - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 adapter.
|
| Number of HDMI Inputs | 6 |
| Number of HDMI Outputs | 2 |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents | - VS-62H 6x2 4K HDMI Matrix Switcher
- Power adapter
- IR transmitter
|
| Product Name | VS-62H 6x2 4K HDMI Matrix Switcher |
| Product Type | HDMI Switcher |
| UPC Alternates | 639476326774 818252157027 |
| Weight (Approximate) | 2.20 lb |
| Width | 8.5" |
