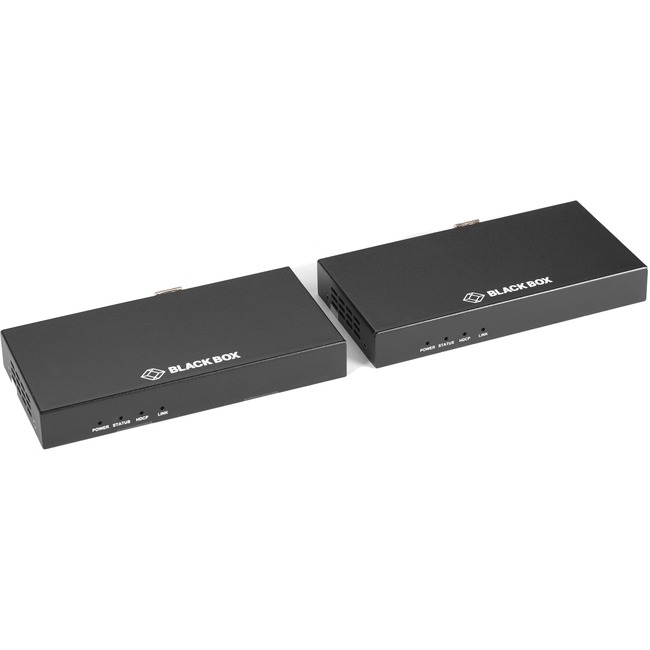

Black Box HDMI 2.0 Extender over Fiber
| $873.16 Retail $1,060.50 |
- Supports up to 4K @ 60 4:4:4 8 bit HDMI signal transmission
- Locking HDMI ports
- HDCP 22 compliant
- Supports HDR
- Transmits 4K @ 60 4:4:4 signals up to 1000 ft via multimode OM3 cable with 10 Gbps multimode SFP+ modules (SFP+ modules are included)
- Video transmission is compressed when the data rate is above 3 Gbpss
- Video transmission is uncompressed when data rate 3 Gbps or lower (eg 4K @ 30 Hz 4:4:4)
- Bi-directional IR or RS232 passthrough to allow different types of displays or sources
1 Input Device - 1 Output Device - 1000 ft Range - 1 x HDMI In - 1 x HDMI Out - 4K - Optical Fiber
Product Specifications
| Transmitter Depth | 8.25" |
| Transmitter Height | 3.50" |
| Transmitter Weight (Approximate) | 10.56 oz |
| Transmitter Width | 5.25" |
| Brand Name | Black Box |
| Connectivity technology | Wired |
| Country of origin | China |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Graphics Modes | 4K |
| Limited Warranty | 3 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | AVX-HDMI2-FO-HDB |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | Send higher-quality video and audio signals further with this HDMI 2.0 Extender. This extender kit distributes UHD video audio RS232 or IR up to 1000 feet (300 meters) over fiber optic cable. The bi-directional RS-232 or IR ports to control AV devices are easy to choose by the slide switch on the rear panels. Control sources and displays from either the transmitter or receiver end using either RS232 or IR signals. The extender supports duplex fiber up to 1000 feet (300 meters). Extend signals over duplex fiber up to 1000 feet (300 meters) while maintaining:
|
| Maximum Operating Distance | 1000 ft |
| Media Type Supported | Optical Fiber |
| Number of HDMI Inputs | 1 |
| Product Condition | New |
| Product Name | HDMI 2.0 Extender over Fiber |
| Product Type | Video Extender Transmitter/Receiver |
| UPC Alternates | 822088136187 |
