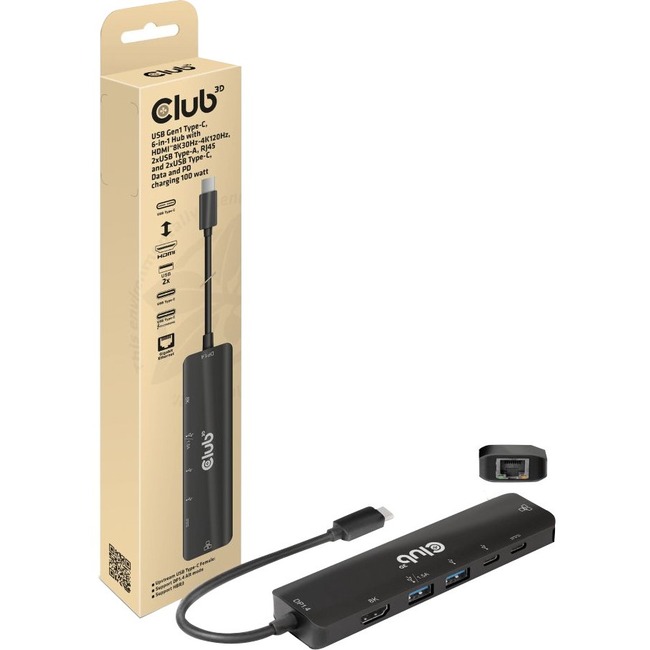

Club 3D CSV-1596 Docking Station - for Monitor/Notebook/Smartphone/Keyboard/Mouse/Headset/Flash Drive - 100 W - USB Type C - 8K, 4K - 7680 x 4320, 3840 x 2160 - 2 x USB Type-A Ports - USB Type-A - 2 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 1 x HDMI Ports - HDMI - DisplayPort - Thunderbolt - Wired - Gigabit Ethernet - Chrome OS, Windows, macOS
for Monitor/Notebook/Smartphone/Keyboard/Mouse/Headset/Flash Drive - 100 W - USB Type C - 8K, 4K - 7680 x 4320, 3840 x 2160 - 2 x USB Type-A Ports - USB Type-A - 2 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 1 x HDMI Ports - HDMI - DisplayPort - Thunderbolt - Wired - Gigabit Ethernet - Chrome OS, Windows, macOS
| DisplayPort Version | 1.4 |
| Maximum Power Supply Wattage | 100 W |
| Number of HDMI Ports | 1 |
| Number of USB Type-C Ports | 2 |
| Screen Mode Supported | 8K |
| Screen Mode Supported | 4K |
| Supported Resolutions | 7680 x 4320 |
| Supported Resolutions | 3840 x 2160 |
| Brand compatibility | Apple |
| Connectivity technology | Wired |
| Depth | 0.55" |
| Device Supported | Monitor/Notebook/Smartphone/Keyboard/Mouse/Headset/Flash Drive |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Height | 4.96" |
| Host interface | USB Type C |
| Manufacturer | Club 3D |
| Manufacturer Part Number | CSV-1596 |
| Manufacturer Website Address | http://www.club-3d.nl |
| Marketing Information | The Club 3D CSV-1596 is a USB Gen1 Type-C 6-in-1 Hub with HDMI™8K30Hz-4K120Hz 2xUSB Type-A RJ45 and 2xUSB Type-C Data and PD charging 100 watt providing an ideal solution for extending the port of Type-C/Thunderbolt host (PC/Laptop/Mobile phoneetc.) especially for those host with a single Type-C port. This hub adopts the latest DP1.4 Alt mode supported IC enabling to output HDMI™ video with max. 8K30Hz-4K120Hz and at the meanwhile transfer USB 3.1 data with max 5Gbps. The USB Type-A and Type-C data ports allow you to connect 4 USB devices simultaneously. 1 Gigabit Ethernet for super fast Ethernet. Besides the Type-C female supports PD 3.0 PD Charging 100W (15W is dedicated to the functioning of this product the rest power(max 85W) will be passed to charge for the host. This 6-in-1 Hub will work on all DP Alt mode supported Type-C hosts. |
| Operating System Supported | Windows |
| Operating System Supported | Chrome OS |
| Operating System Supported | macOS |
| Package Contents | - CSV-1596 Docking Station
- 2 x USB Type-A
- RJ45
- 2 x USB Type-C Data and PD Charging 100 Watt
|
| Product Name | CSV-1596 Docking Station |
| Product Type | Docking Station |
| UPC Alternates | 841615102594 |
| Weight (Approximate) | 4.80 oz |
| Width | 1.34" |
