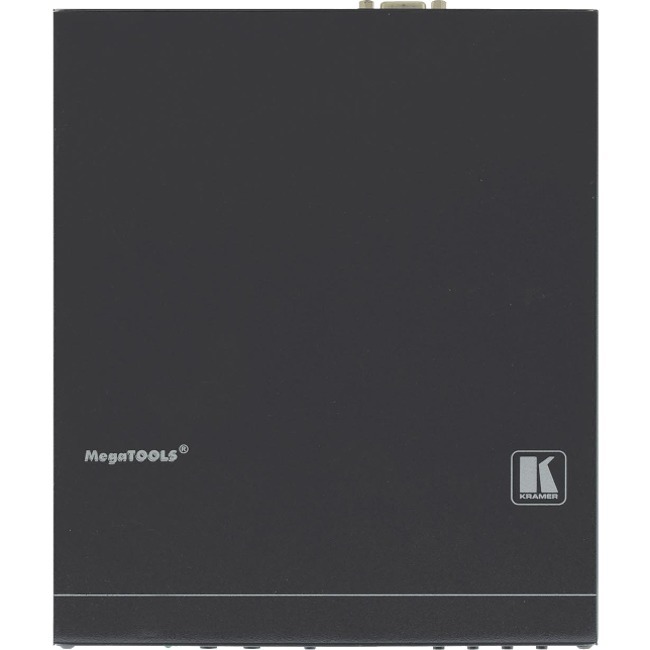

Kramer MegaTOOLS VP-428H2 Video Extender Transmitter - 3 Input Device - 328.08 ft Range - 2 x Network (RJ-45) - 1 x USB - 1 x HDMI In - 1 x VGA In - DisplayPort - 4K - 4096 x 2160 - Twisted Pair
3 Input Device - 328.08 ft Range - 2 x Network (RJ-45) - 1 x USB - 1 x HDMI In - 1 x VGA In - DisplayPort - 4K - 4096 x 2160 - Twisted Pair
| Number of Input Devices Supported | 3 |
| Transmitter Depth | 4.53" |
| Transmitter Height | 1" |
| Transmitter Weight (Approximate) | 1.98 lb |
| Transmitter Width | 7.38" |
| Brand Name | Kramer |
| Connectivity technology | Wired |
| Graphics Modes | 4K |
| Limited Warranty | 7 Year |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | VP-428H2 |
| Manufacturer Website Address | http://www.kramerelectronics.com |
| Marketing Information | VP-428H2 is an HDBaseT 4K transmitter/scaler with HDMI DP and VGA inputs. VP-428H2 supports HDBaseT tunneling of Ethernet bidirectional RS-232 and IR signals as well as PoE to provide power to the HDBaseT receiver. It receives the selected AV signal up-scales down scales or bypasses the video according to the settings selected by the user and converts it for sending via HDBaseT together with the tunneled data and PoE. - PixPerfect™ Scaling Technology - Kramer's precision pixel mapping and high-quality scaling technology.
- HDMI 2.0 Compliant.
- HDCP 2.2 Compliant.
- HDBaseT Certified.
- System Range - For the HDBaseT output extended reach of up to 100m (330ft) using Kramer recommended cables.
- Provides Power (PoE) on HDBaseT Output to Compatible Devices.
- Max. Resolutions - Input: 4K@60Hz (4:4:4); Output: 4K@60Hz (4:2:0).
- Max. VGA Resolution - 1920 x 1200 @60Hz.
- Built-in ProcAmp - Color hue sharpness noise contrast and brightness are set individually for each input.
- Constant Output Sync - No output disruption while switching between inputs when no video is detected.
- Audio - Unbalanced stereo and embedded audio.
- Auto Input Switching - Last connected & auto-scan selectable.
- HDBaseT Tunneling - Supports full HDBaseT tunneling of Ethernet and RS-232 data.
- Non-Volatile Memory - Saves final settings.
- Flexible Control Options - Front panel push buttons RS-232 OSD (on-screen display) menu with front panel navigation buttons.
Applications - Educational - classrooms lecture theaters
- Projection systems in conference rooms boardrooms hotels and churches
- Home theater up-scaling
|
| Maximum Operating Distance | 328.08 ft |
| Maximum Video Resolution | 4096 x 2160 |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 1 |
| Package Contents | - MegaTOOLS VP-428H2 Video Extender Transmitter
- Power Supply
|
| Product Line | MegaTOOLS |
| Product Name | MegaTOOLS VP-428H2 Video Extender Transmitter |
| Product Type | Video Extender Transmitter |
| USB | Yes |
