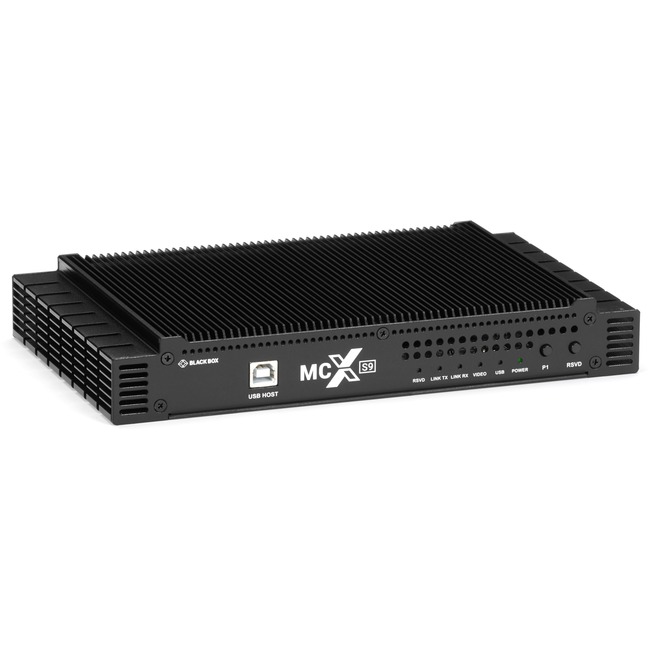

Black Box MCX S9 Video Encoder - Functions: Video Encoding, Audio Encoder, Video Scaling, Video Switcher - 3840 x 2160 - DisplayPort - Network (RJ-45) - USB - Audio Line In - Audio Line Out - 1 Pack - PC - Mountable
Functions: Video Encoding, Audio Encoder, Video Scaling, Video Switcher - 3840 x 2160 - DisplayPort - Network (RJ-45) - USB - Audio Line In - Audio Line Out - 1 Pack - PC - Mountable
| Brand Name | Black Box |
| Country of origin | China |
| Depth | 5.5" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form factor | Mountable |
| Functions | Video Encoding |
| Functions | Audio Encoder |
| Functions | Video Scaling |
| Functions | Video Switcher |
| Height | 1.4" |
| Limited Warranty | 3 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | MCX-S9D-ENC |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | MCX is a next-generation AV-over-IP solution from Black Box. MCX distributes and extends 4K 60 Hz video and audio over IP and is made for 10-Gbps network infrastructures. Uncompressed 4K 60 Hz 4:4:4 Video MCX delivers the video quality high-end AV applications require to display eye-catching content: It extends uncompressed 4K 60 Hz 4:4:4 video to an unlimited number of displays without sacrificing latency video quality or bandwidth. Even better it supports up to 10-bit HDR using Software-Defined Video over Ethernet (SDVoE) - the latest software-based AV-over-IP platform for extension and control of AV systems on Ethernet or fiber networks. Easy Flexible Deployment This video extension system is designed to work with any modern network making installation simple. MCXS9 can be deployed on 10G networks over Ethernet fiber or both. Advanced Video Wall Capabilities MCXS9 allows you to display your video wall content any way you want. It offers advanced video scaling options such as multi-view picture-in-picture split-screen and more. Zero Latency This robust video distribution system's glass-to-glass encoding and decoding happen in real-time (0.03 milliseconds). This means you never deal with annoying lag or video delay. Seamless Switching MCX switches between video sources in less than 100 milliseconds with no artifacts or screen blink. This means you can switch video content super-fast without any noticeable distortion to your image. Complete Control The MCX Web UI gives you complete control over your AV network from your preferred web browser. Comprehensive Connectivity You can connect every essential AV distribution device to your MCX through its variety of ports: discrete RS-232 IR secondary audio channel plus a separate 1-GbE connection. |
| Maximum resolution | 3840 x 2160 |
| Package Contents | - MCX S9 Video Encoder
- 1 x 12-VDC 3-A Power Adapter (With US/UK/EU/AU Cord)
- 1 x 3.5-MM 4-Pin Phoenix Connector
- 1 x IR Emitter
- 2 x Mounting Ears (With Screws)
|
| Packaged Quantity | 1 |
| Platform Supported | PC |
| Product Name | MCX S9 Video Encoder |
| Product Series | MCX S9 |
| Product Type | Video Encoder |
| UPC Alternates | 822088143611 |
| Weight (Approximate) | 3.31 lb |
| Width | 8.3" |
