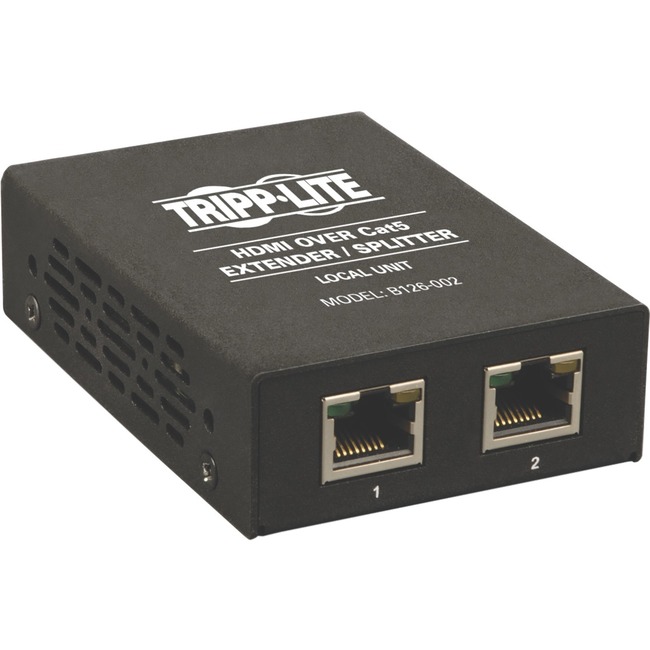

Tripp Lite 2-Port HDMI Over Cat5/Cat6 Video Extender / Splitter Intl Power Supply - 1 Input Device - 2 Output Device - 200 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - Full HD - 1920 x 1080 - Twisted Pair - Category 6a - Rack-mountable, Wall Mountable, Pole-mountable
1 Input Device - 2 Output Device - 200 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - Full HD - 1920 x 1080 - Twisted Pair - Category 6a - Rack-mountable, Wall Mountable, Pole-mountable
Receiver Depth | 3.60" |
Receiver Height | 1" |
Receiver Width | 2.50" |
Brand Name | Tripp Lite |
Connectivity technology | Wired |
Country of origin | Taiwan |
Environmental Certification | RoHS |
Environmentally Friendly | Yes |
Form factor | Pole-mountable |
Form factor | Rack-mountable |
Form factor | Wall Mountable |
Graphics Modes | Full HD |
Limited Warranty | 1 Year |
Manufacturer | Tripp Lite by Eaton |
Manufacturer Part Number | B126-002-INT |
Manufacturer Website Address | http://www.tripplite.com |
Marketing Information | The B126-002-INT 2-Port HDMI over Cat5/Cat6 Extender/Splitter works with Tripp Lite B126-Series remote receivers to split a single HDMI audio/video signal into two separate signals. It's ideal for digital signs trade shows presentations retail settings and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source. It uses HDMI cable (see Tripp Lite's P568-Series) to connect to the source and Cat5e/6 cable to transmit to the remote monitors (for best results use 24 AWG solid-wire Cat5e/6 cable such as Tripp Lite's N202-Series).
When used with Tripp Lite's B126-1A0 or B126-1A0-WP-1 active remote receivers the Extender/Splitter can extend a 1080i (60 Hz) signal up to 200 feet (61 m) a 1080p signal (60 Hz) up to 150 feet (45.7 m) and a 3D signal up to 125 feet (38.1 m). With a B126-1P0 or B126-1P0-WP-1 passive remote receiver it can extend a 1080i (60 Hz) signal up to 100 feet (30.5 m) and a 1080p (60 Hz) signal up to 50 feet (15.2 m). Add up to three B126-110 remote repeaters to each channel to fully extend the signal range or add more displays.
In addition to high-definition video the B126-002-INT delivers full rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio. Easy to set up with no software or drivers to install. Mounts to a wall rack or pole using the included hardware. Features Extends High-Definition Signals
- Extends a 1080i (60 Hz) signal up to 175 ft. (53.3 m) a 1080p (60 Hz) signal up to 125 ft. (38.1 m) and a 3D signal up to 100 ft. (30.5 m) with each optional Tripp Lite B126-110remote repeater
- Extends a 1080i (60 Hz) signal up to 200 ft. (61 m) a 1080p (60 Hz) signal up to 150 ft. (45.7 m) and a 3D signal up to 125 ft. (38.1 m) with Tripp Lite B126-1A0 or B126-1A0-WP-1 active remote receiver
- Extends a 1080i (60 Hz) signal up to 100 ft. (30.5 m) and a 1080p (60 Hz) signal up to 50 ft. (15.2 m) with Tripp Lite B126-1P0 or B126-1P0-WP-1 passive remote receiver
- Add up to 3 remote repeaters on each channel for maximum signal range
- Connects to next link in the chain with one Cat5e/6 cable (for best results use 24 AWG solid-wire Cat5e/6 cable such as Tripp Lite's N202-Series)
Supports the Latest Video and Audio Resolutions
- Works with all operating systems and HDMI video sources
- Supports HD resolutions up to 1080p (60 Hz)
- Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio
- Supports 24-bit True Color (8 bits per channel) and HDCP
Easy to Set Up and Use
- Plug-and-play engineering-no software or drivers to download and install
- Connects quickly to source with HDMI cable such as Tripp Lite's P568-Series
- LEDs indicate at a glance when the unit is receiving power and an HDMI signal from the source
- Included mounting hardware lets you install the unit on a wall rack or pole
- International power supply with CEE 7/16 Schuko BS1363 UK and AS2112 Australia plugs
Package Includes - B126-002-INT 2-Port HDMI over Cat5/Cat6 Extender/Splitter
- External power supply w/CEE 7/16 Schuko BS1363 UK and AS2112 Australia plugs (Input: 100-240V 50/60 Hz 0.5A; Output: 5V 2A)
- Mounting hardware
- Owner's manual
|
Maximum Operating Distance | 200 ft |
Maximum Video Resolution | 1920 x 1080 |
Media Type Supported | Twisted Pair |
Number of HDMI Inputs | 1 |
Number of Network (RJ-45) Ports | 2 |
Package Contents | - B126-002-INT 2-Port HDMI over Cat5/Cat6 Extender/Splitter
- External power Supply w/CEE 7/16 Schuko BS1363 UK and AS2112 Australia Plugs (Input: 100-240V 50/60 Hz 0.5A; Output: 5V 2A)
- Mounting Hardware
- Owner's Manual
|
Product color | Black |
Product Name | B126-002-INT 2-Port HDMI over Cat5/Cat6 Extender/Splitter |
Product Type | Video Extender Receiver |
Twisted Pair Cable Standard | Category 6a |
UPC Alternates | 037332192783 |
