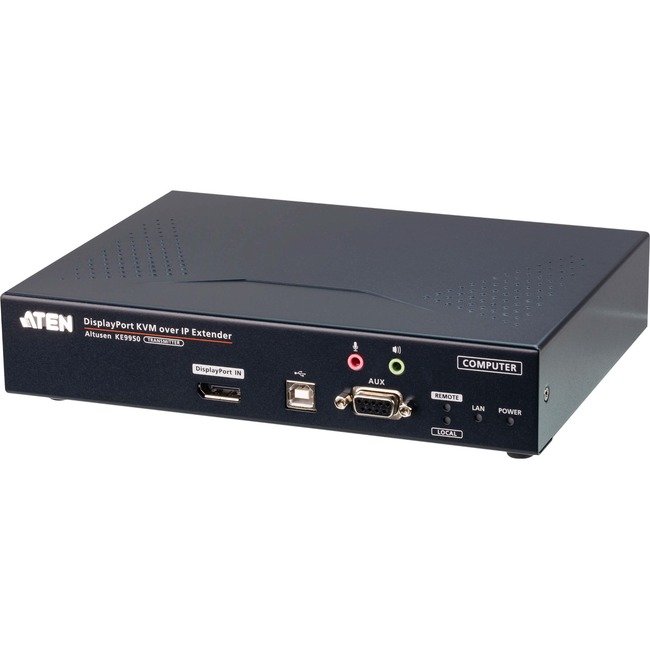

ATEN 4K DisplayPort Single Display KVM over IP Transmitter - 32808.40 ft Range - 4K - 3840 x 2160 Maximum Video Resolution - 1 x Network (RJ-45) - 2 x USB - DisplayPort - 5 V DC Input Voltage - Desktop, Wall Mountable, Rack-mountable - 0U
32808.40 ft Range - 4K - 3840 x 2160 Maximum Video Resolution - 1 x Network (RJ-45) - 2 x USB - DisplayPort - 5 V DC Input Voltage - Desktop, Wall Mountable, Rack-mountable - 0U
| KVM Technology | Digital |
| Transmitter Depth | 8.46" |
| Transmitter Height | 1.65" |
| Transmitter Weight (Approximate) | 2.47 lb |
| Transmitter Width | 6.41" |
| Brand Name | ATEN |
| Connectivity technology | Wired |
| Device type | KVM Extender |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Form factor | Rack-mountable |
| Form factor | Desktop |
| Form factor | Wall Mountable |
| Graphic Mode | 4K |
| Input voltage | 5 V DC |
| Limited Warranty | 3 Year |
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | KE9950T |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | The KE9950 4K DisplayPort Single Display KVM over IP Extender consists of a high performance IP-based transmitter KE9950T that connects to the computer and receiver KE9950R that provides console access from a separate location. The KE9950 allows access to a computer system from a remote USB console (USB keyboard USB mouse DisplayPort monitor) over an intranet enabling users to locate computers in a secure and temperature controlled environment which is isolated from users' workstation. The KE9950 supports one DisplayPort display at each end providing video resolutions up to 3840 x 2160 @30Hz (4:4:4) as well as flawless and lossless video compression quality with minimal latency.
The KE9950 supports connections via an RJ-45 port or a SFP slot as well as provides dual power supplies for redundancy. The transmitter and receiver can be connected either directly to each other or via a high-speed network over a copper-based or fiber-based LAN ensuring 24/7 availability of remote access to servers. To connect via the SFP slot the extender supports 1Gbps SFP fiber module expansions enabling connections via fiber optic network to extend transmission distances up to 10km.
The KE9950 can be set on a desk mounted on a wall or at the rear of a rack with its space-saving 0U rack-mount design. As an IP-based matrix extender the KE9950 can be used as a point-to-point / point-to-multipoint / multipoint-to-point / multipoint-to-multipoint extender or integrated into a KVM over IP Matrix System (multipoint-to-multipoint) when combined with the KE Matrix Management Software (CCKM) providing more flexible applications in different working environments.
When integrated with the KE Matrix Management Software the KE9950 supports more advanced features such as boundless switching "Push" and "Pull" video wall and multi-display setups and profile scheduling that provide uninterrupted access with quick and easy control tools to use the KE9950 over a network.
More functions include auto detection of all KE Series extenders in the same subnet for the sake of fast installation or configuration username / password authentication and authorization and the ability to define different types of connections that can be switched and shared. Security features also provide extra protection supporting AES encryption for secured data transmissions while RADIUS LDAP AD or remote user authentication provides an added layer of connection security; moreover with an OSD RS-232 support and Auto MDIX the KE9950 is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.
Whether you're monitoring operating controlling or extending computer access the KVM over IP Matrix System is made adaptable to fit an endless variety of working environments and workstation settings to provide solutions in traffic management centers retail surveillance centers facility situation rooms command control centers utilities process control centers broadcasting distribution monitoring systems network operations centers (NOC) and many other industries where matrix extending is required. |
| Maximum Operating Distance | 32808.40 ft |
| Maximum Video Resolution | 3840 x 2160 |
| Microphone | Yes |
| Number of USB Ports | 2 |
| Package Contents | - 1x 4K DisplayPort Single Display KVM over IP Transmitter
- 1x DisplayPort Cable
- 1x USB 2.0 Type-A to Type-B Cable
- 1x Power Adapter
- 1x Power Cord
- 1x Foot Pad Set (4 pcs.)
- 1x Mounting Kit
- 1x User Instructions
|
| Packaged Quantity | 1 |
| Power consumption | 9.51 W |
| Product Name | 4K DisplayPort Single Display KVM over IP Transmitter |
| Product Type | KVM Console/Extender |
| Rack Height | 0U |
| UPC Alternates | 672792008450 |
