Kramer 6-button Touch-Sensitive Ethernet Control Keypad (US)
New
Kramer 6-button Touch-Sensitive Ethernet Control Keypad (US)
| Additional Information | PORTS: 2 RS-232 and 1 K-NET on terminal block connectors 1 Ethernet on an RJ-45 connector 1 infrared sensor 1 Mini USB for programming. OUTPUTS: 2 IR-out and 3 relays (36V AC or DC 2A 60V AC maximum on non-inductive load) on terminal block connectors. POWER CONSUMPTION: 12V DC 100ma. OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F). STORAGE TEMPERATURE: -40° to +70°C (-40° to 158°F). HUMIDITY: 10% to 90% RHL non-condensing. PRODUCT DIMENSIONS: 6.90cm x 3.50cm x 11.43cm (2.72" x 1.38" x 4.50" ) W D H PRODUCT WEIGHT: 0.1kg (0.2lbs) approx. SHIPPING DIMENSIONS: 25.60cm x 11.80cm x 11.40cm (10.08" x 4.65" x 4.49" ) W D H SHIPPING WEIGHT: 0.7kg (1.6lbs) approx. INCLUDED ACCESSORIES: Power supply mounting frame labeled caps set screwdriver. OPTIONAL: RK-2WP 19" rack adapter external IR receiver (C-A35M/IRR-50) and IR receiver extension cables (C-A35M/A35F-50). |
| Application/Usage | Auditorium |
| Application/Usage | Boardroom |
| Application/Usage | Conference Room |
| Brand Name | Kramer |
| Depth | 1.4" |
| Form factor | Wall Mountable |
| Height | 4.5" |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Website Address | http://www.kramerelectronics.com |

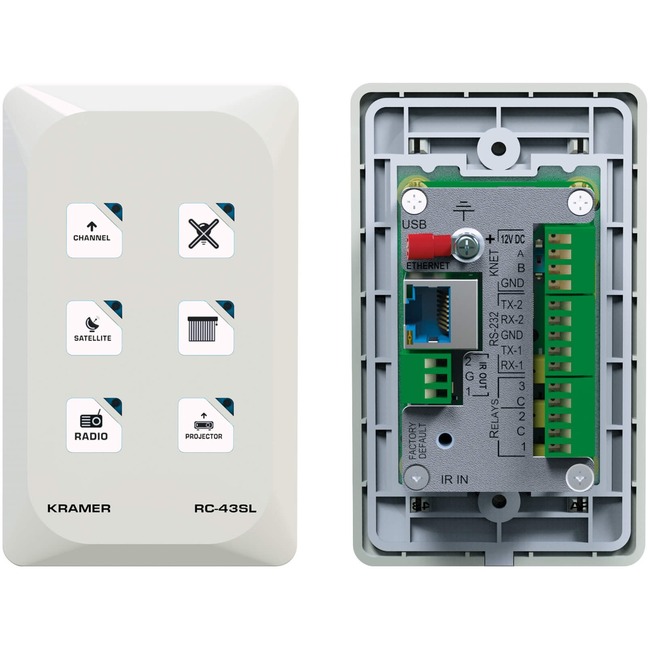

| Marketing Information | The RC-43SL is a touch-sensitive 6-button control keypad. Connected over Ethernet to Site-CTRL™ remote AV control site management & monitoring system as well as LAN-connected control gateways for extended controlled devices capacity. It also connects over KNET™ to master room controller and auxiliary keypads for remote keypad control. It can flexibly serve either as a standalone room controller part of multi-units KNET™ system or part of multi-unit Ethernet system managed by Kramer Site-CTRL™ site management platform. The RC-43SL is ideal for auditoriums and meeting rooms for convenient control of their complex multimedia systems and other room facilities such as screens lighting and shades.
|
| Package Contents |
|
| Product Model | RC-43SL |
| Product Name | 6?button Touch?Sensitive Ethernet Control Keypad (US) |
| Product Type | A/V Control Panel |
| Weight (Approximate) | 3.20 oz |
| Width | 2.7" |
