Kramer 1:2 Twisted Pair & HDMI Line Driver & Distribution Amplifier - 1 Input Device - 2 Output Device - 328.08 ft Range - 2 x Network (RJ-45) - 1 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 7 - Rack-mountable
1 Input Device - 2 Output Device - 328.08 ft Range - 2 x Network (RJ-45) - 1 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 7 - Rack-mountable
| Network (RJ-45) | Yes |
| Receiver Depth | 4.53" |
| Receiver Height | 1" |
| Receiver Weight (Approximate) | 14.11 oz |
| Receiver Width | 7.38" |
| Brand Name | Kramer |
| Connectivity technology | Wired |
| Form factor | Rack-mountable |
| Graphics Modes | Full HD |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Website Address | http://www.kramerelectronics.com |

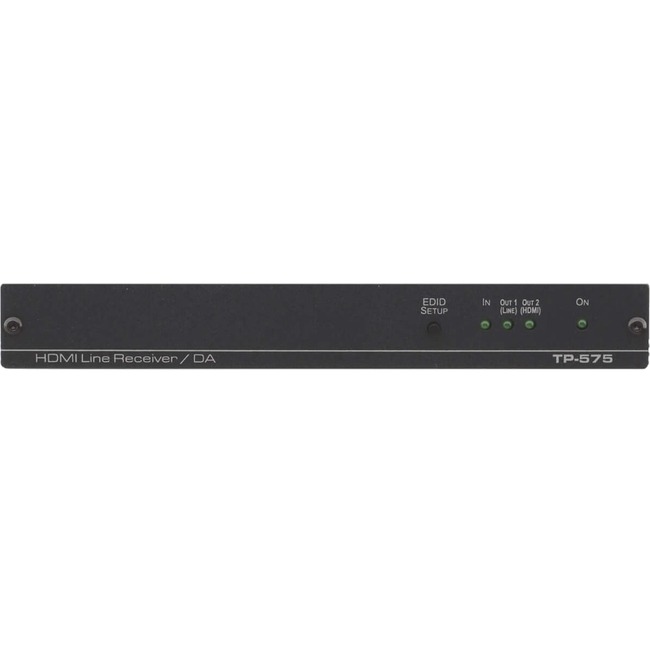

| Marketing Information | The TP-575 is a DGKat™ twisted pair line driver for HDMI over twisted pair signals. The unit receives a twisted pair signal and outputs both an HDMI and twisted pair signal to a compatible receiver. - Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant.
- DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
- HDMI Support - x.v.Color™ HDMI Uncompressed Audio Channels Dolby TrueHD DTS-HD.
- 3D Pass-Through.
- EDID PassThru - Passes EDID signals between the source and display.
- HPD Pass-Through - Passes Hot Plug Detect signals from display to source.
- Active Input/Output LED Indicators.
- System Range - Up to 90m (295ft) at 1080i or up to 30m (98ft) at 1080p on shielded BC-DGKat524 cable. Up to 90m (295ft) at 1080i or up to 70m (230ft) at 1080p on shielded BC-DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC-DGKat7a23 cable.
- Cable - For optimum range and performance use Kramer's BC-DGKat524 BC-DGKat623 and BC-DGKat7a23 cables. Note that the transmission range depends on the signal resolution graphics card and display used. The distance using non-Kramer CAT 5 CAT 6 and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
- Compatible Receivers - PT-572+ TP-574 TP-575 TP-576.
- Output Signal Reclocking - Daisy chains up to 6 receivers for maximum range of 600m using shielded BC-DGKat7a23 cable at 1080i. (For other cables and resolutions see System Range above.)
- Power Connect™ System - A single connection to the TP-575 powers the transmitter receiver and line driver units.
- Compact MegaTOOLS™ - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B universal rack adapter.
|
| Maximum Operating Distance | 328.08 ft |
| Maximum Video Resolution | 1920 x 1080 |
| Media Type Supported | Twisted Pair |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Product Model | TP-575 |
| Product Name | 1:2 Twisted Pair & HDMI Line Driver & Distribution Amplifier |
| Product Type | Video Extender Receiver |
| Twisted Pair Cable Standard | Category 7 |
