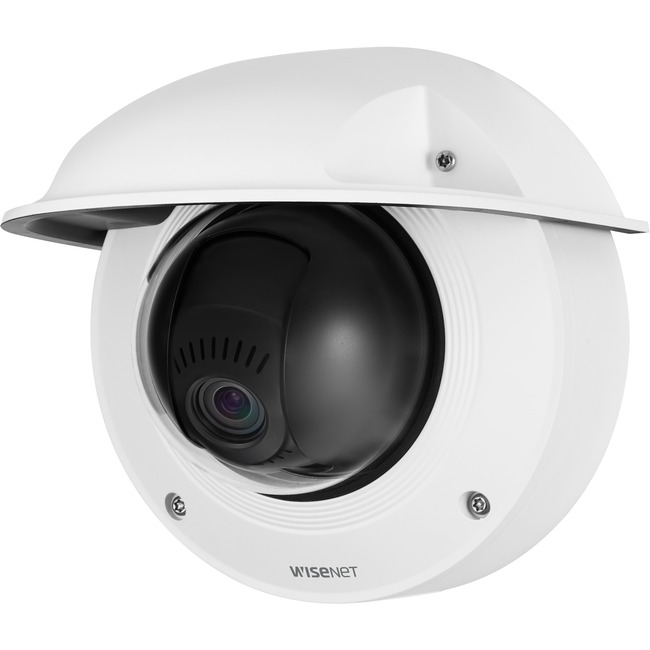

Wisenet XNV-8081Z 5 Megapixel Outdoor Network Camera - Color, Monochrome - Dome - MJPEG, H.264, H.265 - 2560 x 1920 - 3.60 mm- 9.40 mm Zoom Lens - 2.6x Optical - CMOS - Ceiling Mount, Roof Mount, Parapet Mount, Wall Mount, Pole Mount, Box Mount - IK10+ - IP67, IP66, IP6K9K - Vandal Resistant
MJPEG, H.264, H.265 - 2560 x 1920 - 3.60 mm- 9.40 mm Zoom Lens - 2.6x Optical - CMOS - Ceiling Mount, Roof Mount, Parapet Mount, Wall Mount, Pole Mount, Box Mount - IK10+ - IP67, IP66, IP6K9K - Vandal Resistant
| Field of View | H : 102.5°(Wide)~38.7°(Tele) V : 74.2°(Wide)~29.0°(Tele) D : 135.5°(Wide)~48.6°(Tele) |
| Impact Protection Rating | IK10+ |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP66 |
| Ingress Protection Rating | IP6K9K |
| Ingress Protection Rating | IP67 |
| Maximum Aperture | f/2.4 |
| Minimum Aperture | f/1.2 |
| Minimum Focal Length | 3.60 mm |
| Minimum Operating Temperature | -58°F (-50°C) |
| Network (RJ-45) | Yes |
| Operating Humidity | 90% |
| Brand Name | Wisenet |
| Color Supported | Color |
| Color Supported | Monochrome |
| Connectivity technology | Wired |
| Diameter | 7.1" |
| Durability | Vandal Resistant |
| Effective Camera Resolution | 5 Megapixel |
| Features | Defog |
| Features | Audio Compression |
| Features | Wide Dynamic Range |
| Features | Motion Detection |
| Features | SD Card Local Storage |
| Features | Gain Control |
| Features | White Balance |
| Features | Digital Noise Reduction |
| Features | Day/Night |
| Features | Privacy Masking |
| Form factor | Dome |
| Height | 4.9" |
| Image Sensor Type | CMOS |
| Input voltage | 24 V AC |
| Lens Type | Zoom |
| Limited Warranty | 3 Year |
| Longest Shutter Speed | 2 Second |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XNV-8081Z |
| Manufacturer Website Address | http://www.hanwha.com |
| Marketing Information | The Wisenet X Plus powered by Wisenet 5 network outdoor vandal dome camera features a modular structure 5MP @ 30fps motorized vari-focal lens 2.6x (3.6~9.4mm) (102.5°~38.7°) and PTRZ capability for easy installation. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additioanl features include 120dB WDR USB port for easy installation advanced video analytics sound classification and business analytics shock detection audio playback true D/N dual SD card hallway view HLC defog detection DIS (Gyro) 12VDC/PoE optional 24VAC IP67/IP66/IP6K9K IK10+ NEMA 4X -50°C ~ +60°C (-58°F ~ +140°F) white color ivory skin included optional black skin cover. The modular design allows for easy installation of the camera case separately from the camera module. In addition the camera module box includes a cutout for easy configuration without disassembling the camera/case. |
| Maximum Focal Length | 9.40 mm |
| Maximum frame rate | 30 fps |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Video Resolution | 2560 x 1920 |
| Mount Type | Ceiling Mount |
| Mount Type | Parapet Mount |
| Mount Type | Wall Mount |
| Mount Type | Pole Mount |
| Mount Type | Roof Mount |
| Mount Type | Box Mount |
| Optical zoom | 2.6x |
| Package Contents | - 5MP Vandal-Resistant Outdoor Network Dome PTRZ Camera
- Weathercap
- Ivory Skin
|
| Product color | White |
| Product Name | 5MP Vandal-Resistant Outdoor Network Dome PTRZ Camera |
| Product Series | X |
| Product Type | Network Camera |
| Shortest Shutter Speed | 1/12000 Second |
| Storage Type | Memory Card |
| Video Formats | H.264 |
| Video Formats | MJPEG |
| Video Formats | H.265 |
| Weight (Approximate) | 3.86 lb |
