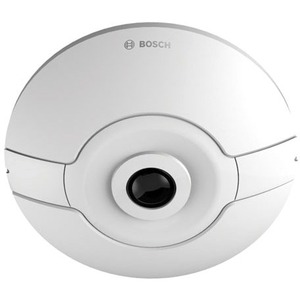

Bosch FLEXIDOME IP 12 Megapixel Indoor HD Network Camera - Color, Monochrome - 1 Pack - Dome - H.264, MJPEG - 3640 x 2160 Fixed Lens - CMOS - Pendant Mount, Surface Mount
H.264, MJPEG - 3640 x 2160 Fixed Lens - CMOS - Pendant Mount, Surface Mount
| Indoor/Outdoor | Indoor |
| Brand Name | Bosch |
| Color Supported | Color |
| Color Supported | Monochrome |
| Connectivity technology | Wired |
| Country of origin | Portugal |
| Effective Camera Resolution | 12 Megapixel |
| Environmental Certification | China RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form factor | Dome |
| Height | 1.3" |
| Image Sensor Type | CMOS |
| Lens Type | Fixed |
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | NIN-70122-F1AS |
| Manufacturer Website Address | http://www.bosch.com |
| Marketing Information | The FLEXIDOME IP panoramic 7000 MP is a discreet aesthetic low-profile camera for indoor use. The 12MP sensor operating at 30 fps provides full panoramic surveillance with complete area coverage fine details and high speeds. The camera offers full situational awareness and simultaneous E-PTZ views in high resolution.
Lens versions
The 360° version of the camera when mounted centrally on a ceiling gives complete wall-to-wall coverage. The 180° version has a higher effective resolution and is ideal for wall mounting or for ceiling mounting in corridors.
Dewarping
The lens captures a circular image. Our dewarping software transforms this circular image into several different distortion-free rectangular views. To facilitate system integration you can choose edge dewarping inside the camera or client-side dewarping on an external platform. The freely available Video Security Client from Bosch provides advanced client-side dewarping features.
Advantages of panoramic surveillance
Panoramic surveillance offers full 180° or 360° coverage of the designated area. Because our panoramic cameras cover the full area they provide complete situational awareness and are ideally suited to following movement in one continuous sweep. |
| Maximum Focal Length | 2.10 mm |
| Maximum frame rate | 30 fps |
| Maximum Video Resolution | 3640 x 2160 |
| Mount Type | Surface Mount |
| Mount Type | Pendant Mount |
| Package Contents | - FLEXIDOME IP Network Camera
- Quick Install Instructions
- Identification Labels
- Mounting Ring
- 2 x Allen Keys (T10 and 1.5)
- 4 x Screws (4.5 x 40)
- 4 x Plugs
- 2 x Washers (M4 x 14) for Mounting to 4s Box
- Surface Mount Box with 4 x M5 Screws (Delivered Separately With SMB Versions of The Camera)
|
| Packaged Quantity | 1 |
| Product Family | FLEXIDOME IP 7000 |
| Product Line | FLEXIDOME IP |
| Product Name | NIN-70122-F1AS Fixed dome 12MP 180" IVA surface-mount |
| Product Series | 7000 |
| Product Type | Network Camera |
| Recording Formats | HD |
| Video Formats | H.264 |
| Video Formats | MJPEG |
| Weight (Approximate) | 15.70 oz |
