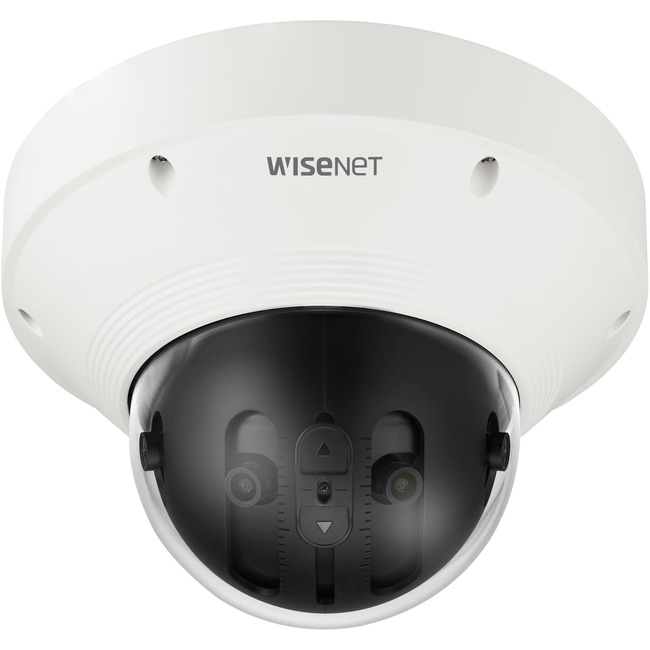

Hanwha Techwin Panoramic PNM-9022V 2 Megapixel Network Camera - Dome - H.265, H.264, MJPEG Fixed Lens - CMOS - Box Mount, Pipe Mount, Wall Mount - IK10 - IP66 - Vandal Resistant
H.265, H.264, MJPEG Fixed Lens - CMOS - Box Mount, Pipe Mount, Wall Mount - IK10 - IP66 - Vandal Resistant
| Field of View | H: 209? V: 83.3? |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Maximum Aperture | f/1.6 |
| Minimum Operating Temperature | -40°F (-40°C) |
| Network (RJ-45) | Yes |
| Number of Sensors | 4 |
| Operating Humidity | 95% |
| Brand Name | Hanwha Techwin |
| Color Supported | Color |
| Connectivity technology | Wired |
| Diameter | 10" |
| Durability | Vandal Resistant |
| Effective Camera Resolution | 2 Megapixel |
| Features | Motion Detection |
| Features | Day/Night |
| Features | Auto Gain Control |
| Features | PTZ |
| Features | HTTPS Encryption |
| Features | Audio Compression |
| Features | Back Light Compensation (BLC) |
| Features | Privacy Masking |
| Features | Audio Detection |
| Features | Alarm Triggering |
| Features | Defog |
| Features | SD Card Local Storage |
| Features | Digital Noise Reduction |
| Features | Highlight Compensation (HLC) |
| Form factor | Dome |
| Image Sensor Type | CMOS |
| Input voltage | 12 V DC |
| Lens Type | Fixed |
| Limited Warranty | 3 Year |
| Longest Shutter Speed | 2 Second |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | PNM-9022V |
| Manufacturer Website Address | http://www.hanwha.com |
| Maximum Focal Length | 2.80 mm |
| Maximum frame rate | 30 fps |
| Maximum Operating Temperature | 140°F (60°C) |
| Mount Type | Wall Mount |
| Mount Type | Box Mount |
| Mount Type | Pipe Mount |
| Product color | White |
| Product Family | Panoramic P |
| Product Line | Panoramic |
| Product Name | 8MP Panoramic Camera |
| Product Series | P |
| Product Type | Network Camera |
| Shortest Shutter Speed | 1/12000 Second |
| Video Formats | H.264 |
| Video Formats | H.265 |
| Video Formats | MJPEG |
| Weight (Approximate) | 7.05 lb |
