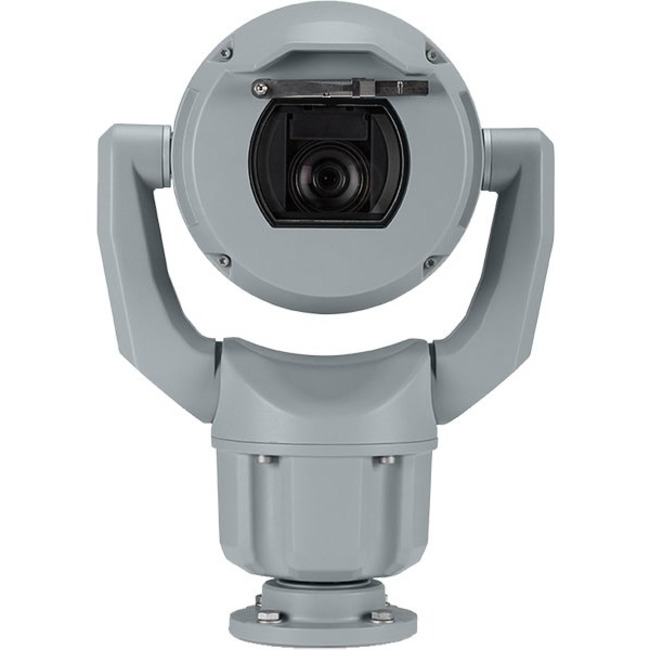

Bosch MIC IP starlight 2 Megapixel Outdoor Full HD Network Camera - Color, Monochrome - 1 Pack - Dome - 1804.46 ft Infrared Night Vision - H.265, H.264, MJPEG, JPEG - 1920 x 1080 - 6.60 mm- 198 mm Varifocal Lens - 30x Optical - CMOS - Bracket Mount, Conduit Mount, Pole Mount, Wall Mount, Corner Mount - IK10 - IP68 - Corrosion Resistant, Impact Resistant, Weather Resistant, Dust Resistant, Vibration Resistant, Shock Resistant
1804.46 ft Infrared Night Vision - H.265, H.264, MJPEG, JPEG - 1920 x 1080 - 6.60 mm- 198 mm Varifocal Lens - 30x Optical - CMOS - Bracket Mount, Conduit Mount, Pole Mount, Wall Mount, Corner Mount - IK10 - IP68 - Corrosion Resistant, Impact Resistant, Weather Resistant, Dust Resistant, Vibration Resistant, Shock Resistant
| Field of View | 2.1° to 58.3° |
| Field of View | 2.1° to 58.3° |
| Impact Protection Rating | IK10 |
| Impact Protection Rating | IK10 |
| Indoor/Outdoor | Outdoor |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP68 |
| Ingress Protection Rating | IP68 |
| Maximum Aperture | f/1.5 |
| Maximum Aperture | f/1.5 |
| Minimum Aperture | f/4.8 |
| Minimum Aperture | f/4.8 |
| Minimum Focal Length | 6.60 mm |
| Minimum Focal Length | 6.60 mm |
| Minimum Operating Temperature | -40°F (-40°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Night Vision Distance | 1804.46 ft |
| Night Vision Distance | 1804.46 ft |
| Night Vision Type | Infrared |
| Night Vision Type | Infrared |
| Operating Humidity | 100% |
| Operating Humidity | 100% |
| Brand Name | Bosch |
| Brand Name | Bosch |
| Color Supported | Color |
| Color Supported | Monochrome |
| Color Supported | Color |
| Color Supported | Monochrome |
| Connectivity technology | Wired |
| Connectivity technology | Wired |
| Depth | 8.3" |
| Depth | 8.3" |
| Durability | Vibration Resistant |
| Durability | Shock Resistant |
| Durability | Shock Resistant |
| Durability | Weather Resistant |
| Durability | Impact Resistant |
| Durability | Corrosion Resistant |
| Durability | Dust Resistant |
| Durability | Vibration Resistant |
| Durability | Weather Resistant |
| Durability | Impact Resistant |
| Durability | Dust Resistant |
| Durability | Corrosion Resistant |
| Effective Camera Resolution | 2 Megapixel |
| Effective Camera Resolution | 2 Megapixel |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Features | Privacy Masking |
| Features | Defog |
| Features | Cross Line Detection |
| Features | Automatic White Balance |
| Features | Day/Night |
| Features | Rugged Design |
| Features | Day/Night |
| Features | Wide Dynamic Range |
| Features | Dynamic Noise Reduction |
| Features | Enter/Exit Detector |
| Features | Built-in Infrared Illuminator |
| Features | Privacy Masking |
| Features | Defog |
| Features | Cross Line Detection |
| Features | Automatic White Balance |
| Features | Auto Gain Control |
| Features | Auto Gain Control |
| Features | Back Light Compensation (BLC) |
| Features | Built-in IR LED |
| Features | Removable IR Cut-off Filter |
| Features | Rugged Design |
| Features | Built-in Infrared Illuminator |
| Features | Enter/Exit Detector |
| Features | Back Light Compensation (BLC) |
| Features | Built-in IR LED |
| Features | Removable IR Cut-off Filter |
| Features | Dynamic Noise Reduction |
| Features | Wide Dynamic Range |
| Form factor | Dome |
| Form factor | Dome |
| Height | 15.8" |
| Height | 15.8" |
| Image Sensor Type | CMOS |
| Image Sensor Type | CMOS |
| Input voltage | 30 V AC |
| Input voltage | 30 V AC |
| Lens Type | Varifocal |
| Lens Type | Varifocal |
| Longest Shutter Speed | 1/1 Second |
| Longest Shutter Speed | 1/1 Second |
| Manufacturer | The Bosch Group |
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | MIC-7522-Z30G |
| Manufacturer Part Number | MIC-7522-Z30G |
| Manufacturer Website Address | http://www.bosch.com |
| Manufacturer Website Address | http://www.bosch.com |
| Marketing Information | The MIC IP starlight 7100i camera is an advanced PTZ surveillance platform for mission-critical applications. With starlight imaging technology and excellent lowlight sensitivity the camera is the perfect solution for robust and high-quality imaging needs.
The camera's ruggedized design meets customer expectations in demanding environments that exceed the capabilities of conventional IP cameras. Even in installations subject to harsh shock/vibration conditions and/or extreme weather the camera provides high-quality video images.
The camera is the ideal choice for: - Transportation: highways bridges/tunnels and ports
- Critical infrastructure: power generation/ transmission refineries/pipelines and mining
- High-security: government facilities and data centers
- Mission-critical applications involving harsh environments that require high-resolution imaging
- Complex scenes with many details under any lighting condition
- Installations where downtime is undesired because of high service costs
Functions
Exceptional low-light performance
The latest sensor technology combined with the sophisticated noise suppression results in an exceptional sensitivity in color. The low-light performance is so good that the camera continues to provide excellent color performance even with a minimum of ambient light.
High dynamic range
The dynamic range of the camera is outstanding and is obvious in real-world performance comparisons. In extended dynamic range mode the camera uses an electronic shutter to capture four images with different exposure time and reproduce a high-contrast frame. The result is that you can view details in both the bright areas (highlights) and the dark areas (shadows) of a scene at the same time. You can easily distinguish objects and features (for example faces) with bright backlight.
Ruggedized design for extreme applications
The camera is designed to last in surveillance applications that are beyond the mechanical capabilities of conventional positioning systems. The entire metal body is anodized and has been engineered to withstand high-impact low-frequency vibration. The camera models comply to IK10 rating for impact resistance and to the IEC 60068 standards applicable to vibration and shock.
The camera has a closed-loop positioning system. The system allows the camera to maintain its position under continuous vibration or after an extreme shock event even without homing or pre-position calibration. |
