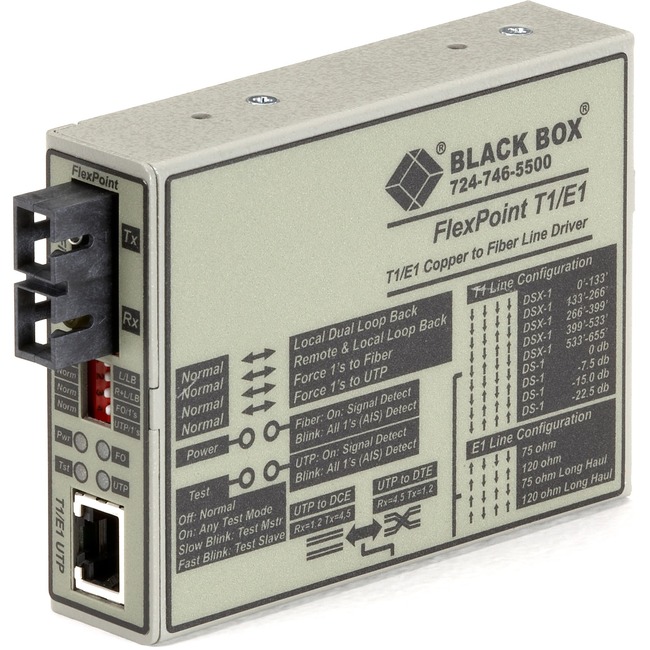

Black Box FlexPoint T1/E1 MT663A-SSC Transceiver/Media Converter - 1 x SC Ports - DuplexSC Port - Single-mode - T1/E1 - Rack-mountable, Wall Mountable - TAA Compliant
1 x SC Ports - DuplexSC Port - Single-mode - T1/E1 - Rack-mountable, Wall Mountable - TAA Compliant
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Standard | 62.5/125 µm |
| Fiber Optic Cable Standard | 9/125 µm |
| Fiber Optic Cable Standard | 50/125 µm |
| Maximum Distance Supported | 17.40 Mile |
| SC Port Type | Duplex |
| Brand Name | Black Box |
| Country of origin | United States |
| Depth | 4" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Form factor | Wall Mountable |
| Height | 1" |
| Limited Warranty | 2 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | MT663A-SSC |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | - Easy to install.
- Connects T1 or E1 PBXs CSUs or routers over fiber to protect against noise and increase network reliability.
- Supports AMI B8ZS and HDB3 line codes.
- A crossover switch on the RJ-45/RJ-48 port enables easy equipment connections.
- Extensive diagnostics including local and remote fiber loopback switches.
- LEDs display T1/E1 link status modes of operation and line segment errors.
- To conveniently rackmount up to five FlexPoint Fiber Converters use the optional 5-Position Rackmounting Kit (LMC205). To order see "Related Products".
- Use optional Wallmounting Hardware (LMC206-WALL) to mount individual FlexPoint Fiber Converters on virtually any surface (also available under "Related Products".)
Use this flexible converter/line driver to connect your T1 or E1 devices to single-mode fiber to get extra distance as well as protection from environmental noise.
FlexPoint™ Converters from Black Box are versatile and cost-effective standalone converters that you can upgrade to a chassis-based system. They provide the ultimate in flexibility and reliability for your expanding multimedia LAN.
The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes.
Tailor the system to your requirements. Get the converters you need now and use them individually. Then when your LAN grows mount your converters on the wall in the FlexPoint 5-Position Rackmounting Kit or in the FlexPoint Power Chassis. The chassis holds 14 converters and single or dual AC power supplies. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | T1/E1 |
| Package Contents | - FlexPoint T1/E1 MT663A-SSC Transceiver/Media Converter
- AC Power Supply
|
| Packaged Quantity | 1 |
| Power source | Power Supply |
| Product Family | FlexPoint T1/E1 |
| Product Line | FlexPoint |
| Product Name | FlexPoint T1/E1 MT663A-SSC Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| UPC Alternates | 700604199147 822088071037 |
| USB | No |
| Weight (Approximate) | 6.40 oz |
| Width | 3" |
