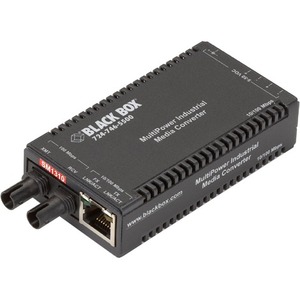

"Fast Ethernet (100-Mbps) Industrial Media Converter - 10/100-Mbps Copper to 100-Mbps Singlemode Fiber, Hardened Temperature, 1310nm, 40km, ST " - 1 x Network (RJ-45) - 1 x ST Ports - DuplexST Port - USB - Single-mode - Fast Ethernet - 100Base-T, 100Base-X - 24.85 Mile - Power Adapter - Standalone, DIN Rail Mountable - TAA Compliant
1 x Network (RJ-45) - 1 x ST Ports - DuplexST Port - USB - Single-mode - Fast Ethernet - 100Base-T, 100Base-X - 24.85 Mile - Power Adapter - Standalone, DIN Rail Mountable - TAA Compliant
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Standard | 9/125 µm |
| Fiber Optic Wavelength | 1310 nm |
| Maximum Distance Supported | 24.85 Mile |
| Number of PoE (RJ-45) Ports | 1 |
| Number of ST Ports | 2 |
| PoE Port Type | PSE |
| ST Port Type | Duplex |
| Brand Name | Black Box |
| Country of origin | Taiwan |
| Depth | 4.7" |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Form factor | DIN Rail Mountable |
| Form factor | Rack-mountable |
| Form factor | Standalone |
| Height | 1" |
| Limited Warranty | 6 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LIC024A-R3 |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | This ultra-compact plug-and-play converter offers multiple power options including support for the IEEE 802.3af Power over Ethernet (PoE) standard. Plus the Industrial MultiPower Media Converter is designed for use in harsh industrial environments. In all there are four different ways to power the converter: with its AC adapter using 5 - 50-VDC terminal block power via an optional USB Power Adapter Cable (which you plug into your PC's USB port and is sold separately) or over a PoE link.
You can even use multiple power options at the same time to provide maximum redundancy and ensure that your mission-critical applications remain up and running. For instance you can connect a converter to power sourcing equipment (PSE) for PoE while also using AC adapter power DC terminal block power and USB bus power. Then if any one of these power sources fails the other sources will continue to supply power to the converter seamlessly.
You can also connect a PSE switch to an uninterruptible power supply to ensure that the switch and each connected media converter always have power.
The converter comes with DIN clips so you can attach it to a DIN rail. When installing multiple Industrial MultiPower Media Converters on a DIN rail use one DC input source then cascade from one DC block to the next until you reach the maximum current available. |
| Marketing Information | This ultra-compact plug-and-play converter offers multiple power options including support for the IEEE 802.3af Power over Ethernet (PoE) standard. Plus the Industrial MultiPower Media Converter is designed for use in harsh industrial environments. In all there are four different ways to power the converter: with its AC adapter using 5 - 50-VDC terminal block power via an optional USB Power Adapter Cable (which you plug into your PC's USB port and is sold separately) or over a PoE link.
You can even use multiple power options at the same time to provide maximum redundancy and ensure that your mission-critical applications remain up and running. For instance you can connect a converter to power sourcing equipment (PSE) for PoE while also using AC adapter power DC terminal block power and USB bus power. Then if any one of these power sources fails the other sources will continue to supply power to the converter seamlessly.
You can also connect a PSE switch to an uninterruptible power supply to ensure that the switch and each connected media converter always have power.
The converter comes with DIN clips so you can attach it to a DIN rail. When installing multiple Industrial MultiPower Media Converters on a DIN rail use one DC input source then cascade from one DC block to the next until you reach the maximum current available.
NOTE: The included AC power adapter doesn't work with the earlier version of this converter (LIC024A).
This product works with: - USB Power Adapter Cable (LHC021A)
- Power Tray (LHC018A-AC-R2)
Questions? Contact our FREE Tech Support.
This product is covered by one or more of the following: United States Patent Nos. 7457250; 8155012; 8902760; 8942107; and/or 9049019. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 100Base-T |
| Network Technology | 100Base-X |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents | - MultiPower Miniature Transceiver/Media Converter
- 100-240-VAC 50-60-Hz Adapter
- DIN Clip on DIN-35 Rails
|
| Plug/Connector Type | Terminal Block |
| Power source | Power Adapter |
| Product Line | Multipower Miniature |
| Product Name | MultiPower Miniature Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 3 |
| Total Number of Ports | 2 |
| UPC Alternates | 822088149149 |
| Weight (Approximate) | 1.20 lb |
| Width | 2" |
