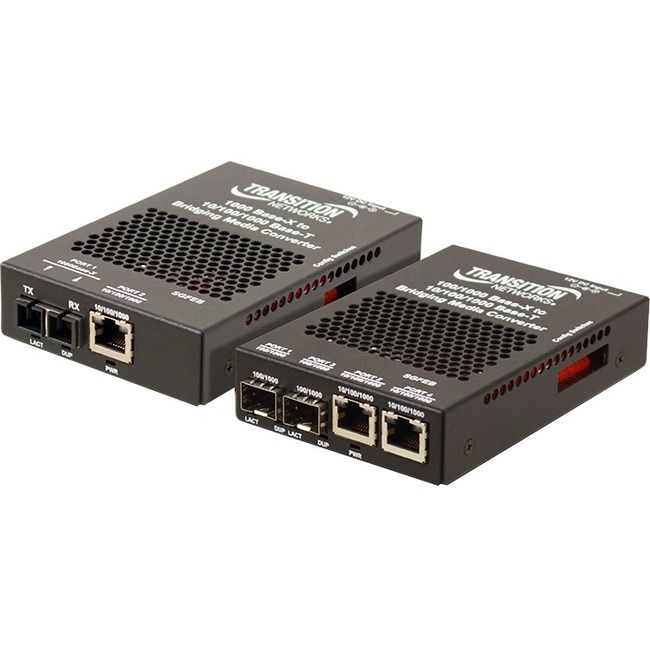

Transition Networks 10/100/1000 Ethernet Media Converter Stand-Alone
| $386.12 Retail $528.00 |
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
- The Rack-mountable provides convenient installation
1 x Network (RJ-45) - 1 x SC Ports - Multi-mode - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX - 721.78 ft - AC Adapter - Rack-mountable, Wall Mountable, Rail-mountable, Desktop
Product Specifications
| Fiber Mode Supported | Multi-mode |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Standard | 62.5/125 µm |
| Fiber Optic Cable Standard | 50/125 µm |
| Fiber Optic Cable Standard | 62.5/125 µm |
| Fiber Optic Cable Standard | 50/125 µm |
| Maximum Distance Supported | 721.78 ft |
| Maximum Distance Supported | 721.78 ft |
| Brand Name | Transition Networks |
| Brand Name | Transition Networks |
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Depth | 4.8" |
| Depth | 4.8" |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Rack-mountable |
| Form factor | Desktop |
| Form factor | Wall Mountable |
| Form factor | Desktop |
| Form factor | Rail-mountable |
| Form factor | Rack-mountable |
| Form factor | Rail-mountable |
| Form factor | Wall Mountable |
| Height | 1" |
| Height | 1" |
| Limited Warranty | Lifetime |
| Limited Warranty | Lifetime |
| Manufacturer | Transition Networks Inc |
| Manufacturer | Transition Networks Inc |
| Manufacturer Part Number | SGFEB1013-130-NA |
| Manufacturer Part Number | SGFEB1013-130-NA |
| Manufacturer Website Address | http://www.transition.com |
| Manufacturer Website Address | http://www.transition.com |
| Marketing Information | The SGFEB provides a cost effective method for integrating 1000Base-SX/LX fiber into a 10/100/1000Base-T copper environment. Deploying fiber into today's networks provides the ability to transmit data over significantly longer distances than is possible on copper. Fiber also protects your data from external sources of noise and interference improving network performance. |
| Marketing Information | The SGFEB provides a cost effective method for integrating 1000Base-SX/LX fiber into a 10/100/1000Base-T copper environment. Deploying fiber into today's networks provides the ability to transmit data over significantly longer distances than is possible on copper. Fiber also protects your data from external sources of noise and interference improving network performance. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-SX |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-SX |
| Number of Network (RJ-45) Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Power source | AC Adapter |
| Power source | AC Adapter |
| Product Model | SGFEB1013-130 |
| Product Model | SGFEB1013-130 |
| Product Name | 10/100/1000 Ethernet Media Converter Stand-Alone |
| Product Name | 10/100/1000 Ethernet Media Converter Stand-Alone |
| Product Type | Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| Total Number of Ports | 2 |
| UPC Alternates | 648177039050 |
| UPC Alternates | 648177039050 |
| USB | No |
| USB | No |
| Weight (Approximate) | 8.80 oz |
| Weight (Approximate) | 8.80 oz |
| Width | 3.3" |
| Width | 3.3" |
