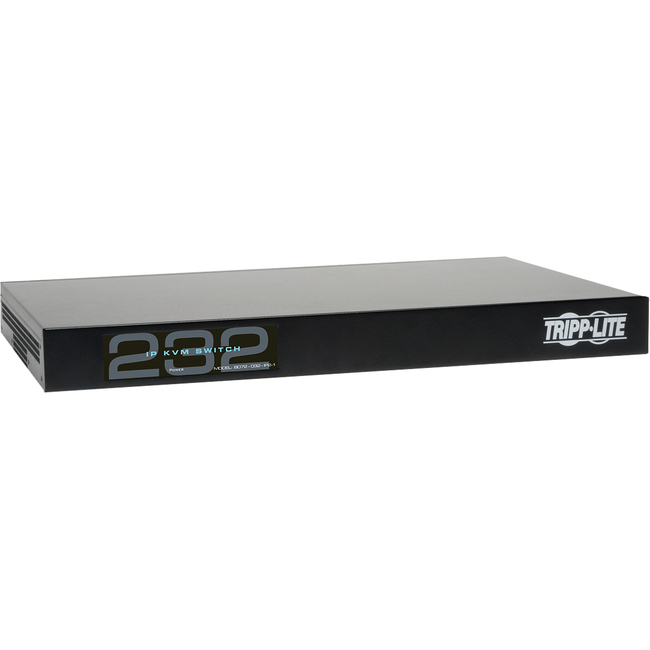

Tripp Lite 32-Port Cat5 IP KVM Switch 1 Local 2 Remote User 1URM Rackmount

• UL 60950-1 (USA)
• CSA (Canada)
• FCC Part 15 Class A
• CE IEC 60950-1

• UL 60950-1 (USA)
• CSA (Canada)
• FCC Part 15 Class A
• CE IEC 60950-1

Tripp Lite's B072-032-IP2 KVM Switch is the optimal solution for controlling up to 32 computers/servers locally from across the room down the street or around the globe on a network or the Internet.This KVM switch can be accessed and controlled remotely so there's no need to travel to the server room or network closet. A Java-based application allows access via web browser from any secure IP connection; a non-browser client that can bypass browser-related Java Security prompts is available. The B072-032-IP2 uses inexpensive user-supplied Cat5e/6/6a cabling with Server Interface Units (sold separately) so you can connect computers/servers located up to 100 ft. away from the switch. This switch features dual Ethernet ports and dual power supplies; if one fails the other takes over keeping access uninterrupted. Switch easily between the 32 ports using an on-screen display (OSD) hotkey commands or a remote toolbar. Multi-level password protection prohibits unauthorized users from accessing connected computers and a local user and up to two remote users can each log on and access different ports simultaneously.Two serial ports allow control of serial-manageable devices such as IP PDUs firewalls and routers; individual ports can be assigned to an IP PDU port to power on/off the server connected to that port. This KVM switch is compatible with Windows and Linux operating systems and it supports VGA video resolutions up to 1920 x 1080 @ 60 Hz. Heavy-duty steel housing stands up to frequent use.Virtual Media allows an.iso file to be mounted to a target server and accessed as if it were stored directly on it. Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit. Other features include RADIUS and LDAP/S authentication system-sent SNMP messaging and an event log that tracks logins reboots and network setting changes.Free NetCommander-AXS Management Software is available to access and control all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface you can access server ports on any of your KVM switches power cycle or power on/off outlets of IP PDUs and manage KVM settings. This software can be downloaded free of charge from the model support page for the B072-032-IP2.

Tripp Lite's B072-032-IP2 KVM Switch is the optimal solution for controlling up to 32 computers/servers locally from across the room down the street or around the globe on a network or the Internet.This KVM switch can be accessed and controlled remotely so there's no need to travel to the server room or network closet. A Java-based application allows access via web browser from any secure IP connection; a non-browser client that can bypass browser-related Java Security prompts is available. The B072-032-IP2 uses inexpensive user-supplied Cat5e/6/6a cabling with Server Interface Units (sold separately) so you can connect computers/servers located up to 100 ft. away from the switch. This switch features dual Ethernet ports and dual power supplies; if one fails the other takes over keeping access uninterrupted. Switch easily between the 32 ports using an on-screen display (OSD) hotkey commands or a remote toolbar. Multi-level password protection prohibits unauthorized users from accessing connected computers and a local user and up to two remote users can each log on and access different ports simultaneously.Two serial ports allow control of serial-manageable devices such as IP PDUs firewalls and routers; individual ports can be assigned to an IP PDU port to power on/off the server connected to that port. This KVM switch is compatible with Windows and Linux operating systems and it supports VGA video resolutions up to 1920 x 1080 @ 60 Hz. Heavy-duty steel housing stands up to frequent use.Virtual Media allows an.iso file to be mounted to a target server and accessed as if it were stored directly on it. Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit. Other features include RADIUS and LDAP/S authentication system-sent SNMP messaging and an event log that tracks logins reboots and network setting changes.Free NetCommander-AXS Management Software is available to access and control all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface you can access server ports on any of your KVM switches power cycle or power on/off outlets of IP PDUs and manage KVM settings. This software can be downloaded free of charge from the model support page for the B072-032-IP2.

• 32-Port 2+1 User NetCommander Cat5 IP KVM Switch
• Rackmount Hardware
• 2 x Power Cords

• 32-Port 2+1 User NetCommander Cat5 IP KVM Switch
• Rackmount Hardware
• 2 x Power Cords
