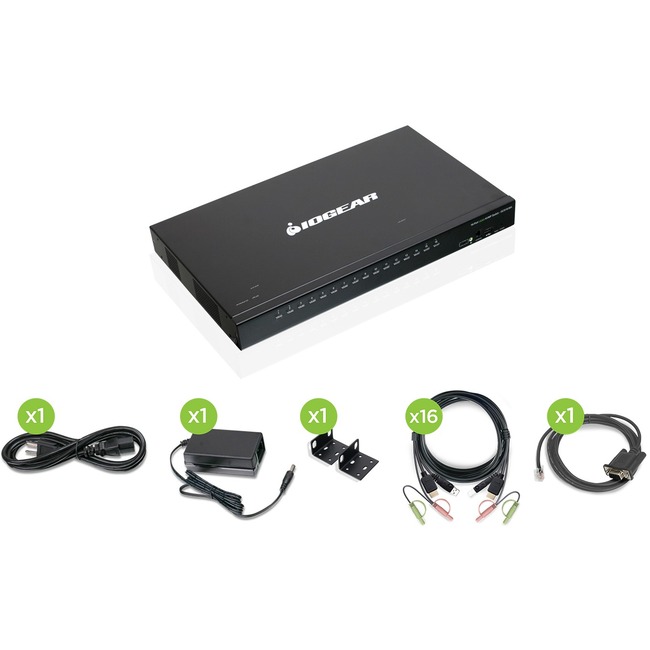

IOGEAR 16-Port USB HDMI KVMP Switch with USB Cable Sets (TAA Compliant)
| $1,447.89 Retail $1,999.95 |
- Controls up to 16 HDMI® sources while sharing 2 additional USB 2.0 devices
- Supports up to 1080p (1920 x 1200) HD video resolution
- Cascade up to 2 levels1 - control up to 256 computers from a single console
- Features 2 built-in USB 2.0 ports 2 for USB peripheral sharing
- Multi-display feature allows viewing of up to 8 monitors when stacking up to (8) GCS1816H together
- Independent KVM and USB focus switching
- Supports 2 level password protection security for On-Screen Display (OSD)
- OSD Backup/Restore configuration and user profile information
- Broadcast Mode sends commands to all connected computers
- Auto Scan Mode monitors connected computers
16 Computer(s) - 1 Local User(s) - 1920 x 1200 - 20 x USB - 17 x HDMI - Rack-mountable, Desktop - 1U - TAA Compliant
Product Specifications
| Number of HDMI Ports | 17 |
| Brand Name | IOGEAR |
| Country of origin | Taiwan |
| Depth | 10" |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Form factor | Desktop |
| Height | 1.8" |
| Limited Warranty | 3 Year |
| Manufacturer | IOGEAR Inc |
| Manufacturer Part Number | GCS1816HKITU |
| Manufacturer Website Address | http://www.iogear.com |
| Marketing Information | 16-Port HDMI KVMP Switch with USB KVM Cable Set IOGEAR's 16-port USB HDMI KVMP Switch with USB Cable Setallows you to control and access up to 16 computers from a single USB keyboard USB mouse and an HDMI monitor console. Using the included USB cables experience high definition video resolution to 1080p (1920 x 1200) while sharing USB 2.0 peripherals and listening to 2.1 stereo surround sound. IOGEAR's 16-Port USB HDMI KVMP Switch is designed to control up to 256 computers by cascading two levels of the GCS1816H. The built-in USB 2.0 hub allows peripheral sharing between the connected system and is backwards compatible with USB 1.1. Administrators can easily broadcast messages announcements firmware updates or notifications to all connected sources. EDID Support IOGEAR's Video DynaSync™ technology optimizes the display resolution by reading and remembering the monitor's parameters (EDID) so there is no delay or change in video resolution when switching between or booting computers. Easily switch between connected computers by either manually pressing the front panel push-buttons entering hotkey combinations from the keyboard or via the On-Screen Display (OSD) system. The KVM's convenient Auto-Scan feature permits automatic scanning and monitoring of activities on all connected devices. This 16-port HDMI KVMP switch provides 2.1 audio support allowing you to enjoy stereo surround sound through connected speakers. Enhance productivity and view all connected sources on up to eight displays by stacking eight (8) IOGEAR GCS1816H together. |
| Marketing Information | 16-Port HDMI KVMP Switch with USB KVM Cable Set IOGEAR's 16-port USB HDMI KVMP Switch with USB Cable Setallows you to control and access up to 16 computers from a single USB keyboard USB mouse and an HDMI monitor console. Using the included USB cables experience high definition video resolution to 1080p (1920 x 1200) while sharing USB 2.0 peripherals and listening to 2.1 stereo surround sound. IOGEAR's 16-Port USB HDMI KVMP Switch is designed to control up to 256 computers by cascading two levels of the GCS1816H. The built-in USB 2.0 hub allows peripheral sharing between the connected system and is backwards compatible with USB 1.1. Administrators can easily broadcast messages announcements firmware updates or notifications to all connected sources. EDID Support IOGEAR's Video DynaSync™ technology optimizes the display resolution by reading and remembering the monitor's parameters (EDID) so there is no delay or change in video resolution when switching between or booting computers. Easily switch between connected computers by either manually pressing the front panel push-buttons entering hotkey combinations from the keyboard or via the On-Screen Display (OSD) system. The KVM's convenient Auto-Scan feature permits automatic scanning and monitoring of activities on all connected devices. This 16-port HDMI KVMP switch provides 2.1 audio support allowing you to enjoy stereo surround sound through connected speakers. Enhance productivity and view all connected sources on up to eight displays by stacking eight (8) IOGEAR GCS1816H together. |
| Maximum Video Resolution | 1920 x 1200 |
| Number of Computers Supported | 16 |
| Number of USB Ports | 20 |
| Package Contents |
|
| Packaged Quantity | 1 |
| Product Model | GCS1816H |
| Product Name | 16-Port USB HDMI KVMP Switch with USB Cable Sets (TAA Compliant) |
| Product Type | KVM Switchbox |
| Rack Height | 1U |
| UPC Alternates | 881317518651 |
| Weight (Approximate) | 8.80 lb |
| Width | 17" |
