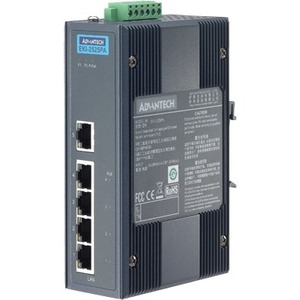

Advantech 5-port Switch with 4 port-PoE and 24/48 V DC Power Input - 5 Ports - 2 Layer Supported - Twisted Pair - DIN Rail Mountable, Wall Mountable
5 Ports - 2 Layer Supported - Twisted Pair - DIN Rail Mountable, Wall Mountable
| Total Number of Network Ports | 5 |
| Total Number of Network Ports | 5 |
| Brand Name | Advantech |
| Brand Name | Advantech |
| Depth | 3.7" |
| Depth | 3.7" |
| Ethernet Technology | Fast Ethernet |
| Ethernet Technology | Fast Ethernet |
| Form factor | DIN Rail Mountable |
| Form factor | Wall Mountable |
| Form factor | Wall Mountable |
| Form factor | DIN Rail Mountable |
| Height | 5.5" |
| Height | 5.5" |
| Layer Supported | 2 |
| Layer Supported | 2 |
| Manageable | No |
| Manageable | No |
| Manufacturer | Advantech Co. Ltd |
| Manufacturer | Advantech Co. Ltd |
| Manufacturer Part Number | EKI-2525PA-AE |
| Manufacturer Part Number | EKI-2525PA-AE |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer Website Address | http://www.advantech.com |
| Marketing Information | The EKI-2525PA and EKI-2528PAI are a 5/8-port unmanaged PoE (Power-over-Ethernet) Industrial Ethernet switches that supports 4 PoE ports which are classified as power source equipment (PSE). These PoE devices make centralized power supply possible and provide up to 15.4 watts of power per port. Advantech EKI PoE devices can be used to power IEEE 802.3af compliant powered devices (PD) through Ethernet cable and eliminate the need for additional power wiring. Advantech EKI PoE devices come equipped with all the standard features of the EKI family. Furthermore they offer a 24/48 V DC redundant power input design and is secured with a double protection mechanism; Power Polarity Reverse Protect and an Overload Current Resettable Fuse. Advantech EKI PoE devices come with compact metal housing that rates IP30 to help against from dusty industrial environments. |
| Marketing Information | The EKI-2525PA and EKI-2528PAI are a 5/8-port unmanaged PoE (Power-over-Ethernet) Industrial Ethernet switches that supports 4 PoE ports which are classified as power source equipment (PSE). These PoE devices make centralized power supply possible and provide up to 15.4 watts of power per port. Advantech EKI PoE devices can be used to power IEEE 802.3af compliant powered devices (PD) through Ethernet cable and eliminate the need for additional power wiring. Advantech EKI PoE devices come equipped with all the standard features of the EKI family. Furthermore they offer a 24/48 V DC redundant power input design and is secured with a double protection mechanism; Power Polarity Reverse Protect and an Overload Current Resettable Fuse. Advantech EKI PoE devices come with compact metal housing that rates IP30 to help against from dusty industrial environments. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100Base-TX |
| Network Technology | 10/100Base-TX |
| Port/Expansion Slot Details | 5 x Fast Ethernet Network |
| Port/Expansion Slot Details | 5 x Fast Ethernet Network |
| Product Model | EKI-2525PA |
| Product Model | EKI-2525PA |
| Product Name | 5-port Switch with 4 port-PoE and 24/48 V DC Power Input |
| Product Name | 5-port Switch with 4 port-PoE and 24/48 V DC Power Input |
| Product Series | EKI-2000 |
| Product Series | EKI-2000 |
| Product Type | Ethernet Switch |
| Product Type | Ethernet Switch |
| Width | 1.9" |
| Width | 1.9" |
