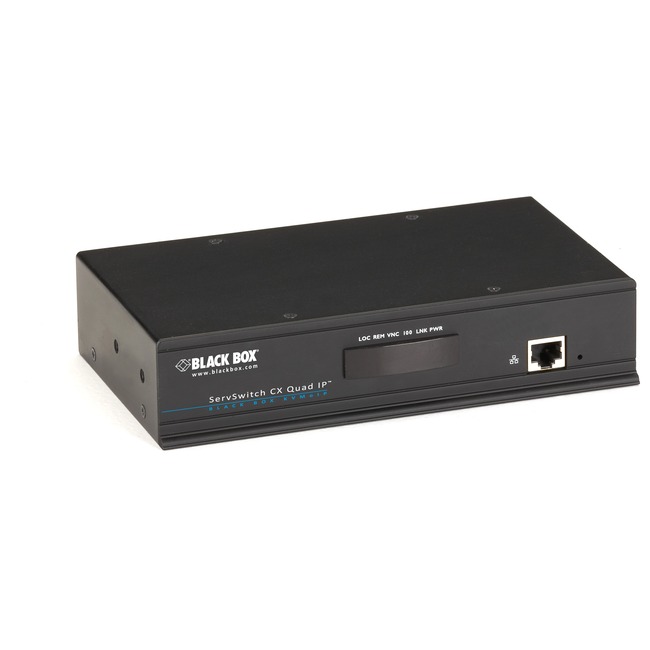

Black Box ServSwitch CX Quad IP - 16 Computer(s) - 1 Local User(s) - 4 Remote User(s) - 1920 x 1200 - 17 x Network (RJ-45) - 2 x USB1 x VGA - Rack-mountable, Desktop - 1U
16 Computer(s) - 1 Local User(s) - 4 Remote User(s) - 1920 x 1200 - 17 x Network (RJ-45) - 2 x USB1 x VGA - Rack-mountable, Desktop - 1U
| KVM Technology | Digital |
| Number of Remote Users Supported | 4 |
| Brand Name | Black Box |
| Certifications & Standards | CE |
| Country of origin | United Kingdom |
| Depth | 1.8" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Form factor | Desktop |
| Graphic Mode | WUXGA |
| Graphic Mode | UXGA |
| Height | 7.9" |
| Input voltage | 220 V AC |
| Input voltage | 110 V AC |
| Limited Warranty | 2 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KV4161A |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | Description
ServSwitch CX Quad IP
Quick Facts
- IP support enables you to access servers remotely.
- Connect up to four IP users plus one local user simultaneously.
- 1600 x 1200 maximum resolution or up to 1920 x 1200 in half-width mode.
Further Details
- Simplify cabling with CAT5 CAT5e or CAT6 UTP cable.
- Supports PC Macintosh® and Sun™.
- Connect PS/2 or USB supported servers/computers.
- Cascade switches to control up to 256 servers.
The ServSwitch™ CX Quad IP has all the features you're looking for to help manage your enterprise network. Like the ServSwitch CX with IP (KV1416A-R2 KV1424-R2) this model is compatible with all major computer platforms; connects via lightweight inexpensive twisted-pair cable; and enables you to access servers across any IP network-even the Internet. The ServSwitch CX Quad IP supports up to four remote users over TCP/IP using VNC plus a local user for a total number of five users simultaneously.
Reaches as far as your network.
Access and switch remotely between servers over a private intranet or over the Internet. All you need is a Java® enabled Web browser. Password security keeps out unauthorized users.
It's secure too.
Although the ServSwitch CX Quad IP can be installed behind the security of your network firewall it also has the robust security features it needs to be safe on its own. Sophisticated 128-bit public/private key protection locks the switch tight against unauthorized access. Two-tier password protection-administrative and non-adminstrative-adds another layer of protection. You can also restrict client IP addresses limit access to dialup connections only or use non-standard port numbers to further confound would-be hackers.
Easier connections than ever!
There are no bulky KVM cables to deal with. Connect servers via lightweight and inexpensive CAT5 CAT5e or CAT6 UTP cable.
The servers connect with UTP cable. At the server end a Server Access Module (SAM) (sold separately) provides keyboard video and mouse connections. Servers may be placed up to 32 feet (9.8 m) from the switch.
|
| Maximum Operating Distance | 984.20 ft |
| Maximum Video Resolution | 1920 x 1200 |
| Number of Computers Supported | 16 |
| Number of Network (RJ-45) Ports | 17 |
| Number of USB Ports | 2 |
| Package Contents | - ServSwitch CX Quad IP
- 1 x 5 VDC 4 Amp Power Supply
- 4 x Rubber Feet
|
| Packaged Quantity | 1 |
| Product Line | ServerSwitch |
| Product Name | ServSwitch CX Quad IP |
| Product Type | KVM Switchbox |
| Rack Height | 1U |
| UPC Alternates | 700604206500 822088068686 |
| Width | 4.8" |
