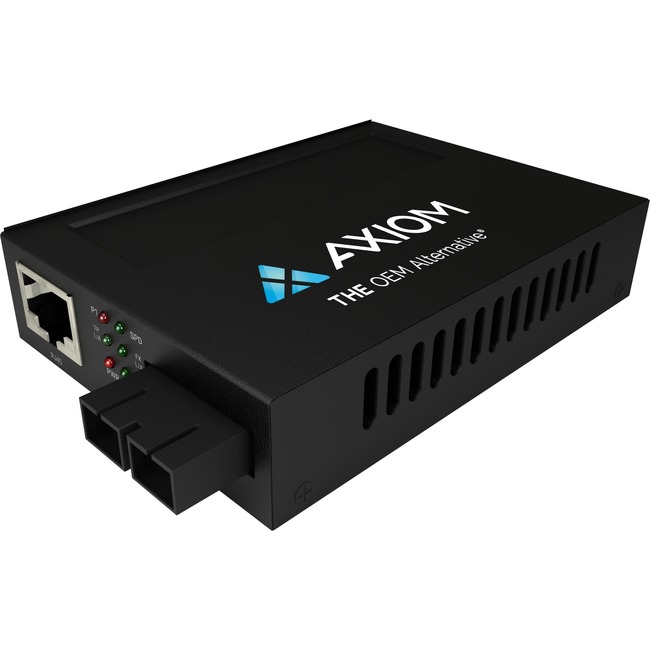

Axiom 1Gbs POE+ RJ45 to 1000BASE-SX Fiber Media Converter - MMF, SC, 2km, 1310nm
| $159.97 Retail $205.00 |
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
- With 1000Base-SX technology get up to 1000Mbps data transfer rate over twisted pair cable
Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x SC Ports - Multi-mode - Gigabit Ethernet - 1000Base-SX, 10/100/1000Base-T
Product Specifications
| Fiber Mode Supported | Multi-mode |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Wavelength | 1310 nm |
| Fiber Optic Wavelength | 1310 nm |
| Maximum Distance Supported | 1.24 Mile |
| Maximum Distance Supported | 1.24 Mile |
| Network (RJ-45) | Yes |
| Network (RJ-45) | Yes |
| Number of PoE+ (RJ-45) Ports | 1 |
| Number of PoE+ (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| PoE Port Type | PSE |
| Brand Name | Axiom |
| Brand Name | Axiom |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Limited Warranty | 1 Year |
| Limited Warranty | 1 Year |
| Manufacturer | Axiom Memory Solutions |
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | MCP32-T2-M3S2-AX |
| Manufacturer Part Number | MCP32-T2-M3S2-AX |
| Manufacturer Website Address | http://www.axiommemory.com |
| Manufacturer Website Address | http://www.axiommemory.com |
| Marketing Information | Features The Axiom POE+ (PSE) Series are a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter which allows two types of network segment to be connected easily. Compliant with IEEE802.3at standard the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply providing power to or IEEE802.3at powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).
|
| Marketing Information | Features The Axiom POE+ (PSE) Series are a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter which allows two types of network segment to be connected easily. Compliant with IEEE802.3at standard the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply providing power to or IEEE802.3at powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).
|
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 1000Base-SX |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-SX |
| Network Technology | 10/100/1000Base-T |
| Power source | AC |
| Power source | AC |
| Product Name | 1Gbs POE+ RJ45 to 1000BASE-SX Fiber Media Converter - MMF SC 2km 1310nm |
| Product Name | 1Gbs POE+ RJ45 to 1000BASE-SX Fiber Media Converter - MMF SC 2km 1310nm |
| Product Type | Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| Total Number of Ports | 2 |
| UPC Alternates | 840177840272 |
| UPC Alternates | 840177840272 |
