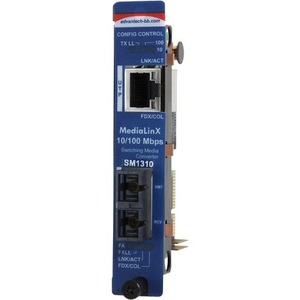

Advantech Slide-In Modular Media Converter 10/100Mbps to Fiber Series - 1 x Network (RJ-45) - 1 x SC Ports - Single-mode - Fast Ethernet - 10/100Base-T, 10/100Base-X
1 x Network (RJ-45) - 1 x SC Ports - Single-mode - Fast Ethernet - 10/100Base-T, 10/100Base-X
| Fiber Mode Supported | Single-mode |
| Fiber Optic Wavelength | 1310 nm |
| Maximum Distance Supported | 24.85 Mile |
| Brand Name | Advantech |
| Country of origin | Taiwan |
| Depth | 2.8" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Height | 4.2" |
| Manufacturer | Advantech Co. Ltd |
| Manufacturer Part Number | IMC-750-SE |
| Manufacturer Website Address | http://www.advantech.com |
| Marketing Information | The IMC-750/751 series are slide-in module Ethernet-to-fiber media converters for the IMC-7xx chassis which support hot-swappable and easy installation. They allow network operators to incorporate multiple fiber types and wavelengths within a network. They can be monitored and controlled via a central site with the IMC-710 SNMP management module by iView2 Telnet or CLI while installed in a IMC-71x series chassis.
Link Fault Pass Through (LFPT) is a diagnostic feature that can enable or disable links to assist end users in troubleshooting a failed segment and configuration control to retain the latest configuration regardless of how the initial configuration was set up. The IMC-750 series can convert a 10/100 ~ 100Mbps copper-to-fiber media rate to auto-negotiation functionality on the twisted pair port for operation and can fix it at 100Mbps copper-to-fiber with the IMC-751 series.
The IMC-754I-SFP converter is protocol-independent with dual SFP ports which can provide a single conversion between different wavelengths or single-mode and multi-mode fiber single-mode to single-mode fiber or multi-mode to single-strand single-mode fiber. The SFP port must use an SFP of the same speed while allowing for different fiber types. Additionally the IMC-754I-SFP is an industrial equipment device. The unit operates in environments that demand extended operating temperatures. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 10/100Base-T |
| Network Technology | 10/100Base-X |
| Number of Network (RJ-45) Ports | 1 |
| Product Name | Slide-In Modular Media Converter 10/100Mbps to Fiber Series |
| Product Series | IMC-750 |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| Weight (Approximate) | 3.88 oz |
| Width | 0.8" |
