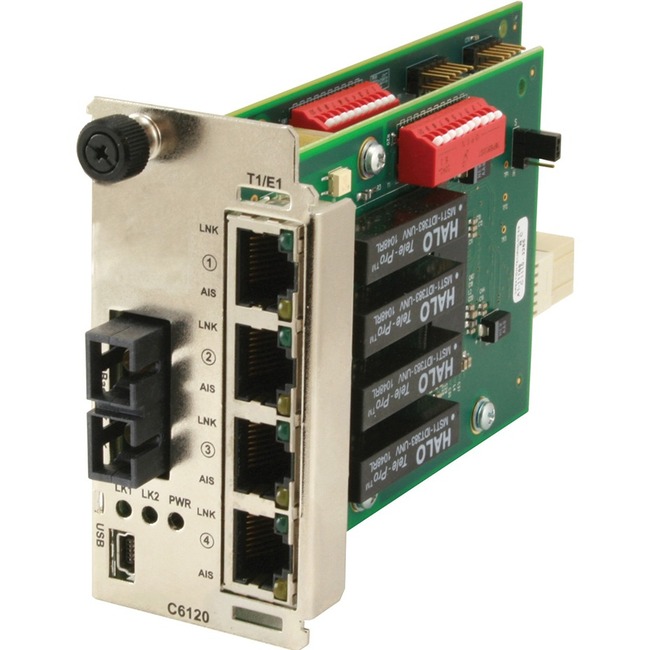

Transition Networks C6120 Interface Module - For Optical Network, Data Networking - 4 x RJ-48 T1/E1/J1 Network, 1 x RJ-45 10/100Base-TX Network - Optical Fiber, Twisted Pair - Multi-modeT1/E1/J1, 10/100Base-TX1 x Expansion Slots - SFP
For Optical Network, Data Networking - 4 x RJ-48 T1/E1/J1 Network, 1 x RJ-45 10/100Base-TX Network - Optical Fiber, Twisted Pair - Multi-modeT1/E1/J1, 10/100Base-TX1 x Expansion Slots - SFP
| Fiber Mode Supported | Multi-mode |
| Fiber Mode Supported | Multi-mode |
| Fiber Mode Supported | Multi-mode |
| Interfaces/Ports Details | 1 x RJ-45 10/100Base-TX Network |
| Interfaces/Ports Details | 1 x RJ-45 10/100Base-TX Network |
| Interfaces/Ports Details | 1 x RJ-45 10/100Base-TX Network |
| Interfaces/Ports Details | 4 x RJ-48 T1/E1/J1 Network |
| Interfaces/Ports Details | 4 x RJ-48 T1/E1/J1 Network |
| Interfaces/Ports Details | 4 x RJ-48 T1/E1/J1 Network |
| Number of Total Expansion Slots | 1 |
| Number of Total Expansion Slots | 1 |
| Number of Total Expansion Slots | 1 |
| Application/Usage | Data Networking |
| Application/Usage | Optical Network |
| Application/Usage | Data Networking |
| Application/Usage | Optical Network |
| Application/Usage | Optical Network |
| Application/Usage | Data Networking |
| Brand Name | Transition Networks |
| Brand Name | Transition Networks |
| Brand Name | Transition Networks |
| Compatibility | ION Chassis |
| Compatibility | ION Chassis |
| Compatibility | ION Chassis |
| Connector Type | RJ-45 |
| Connector Type | RJ-48 |
| Connector Type | RJ-45 |
| Connector Type | RJ-45 |
| Connector Type | RJ-48 |
| Connector Type | RJ-48 |
| Country of origin | United States |
| Country of origin | United States |
| Country of origin | United States |
| Depth | 6.5" |
| Depth | 6.5" |
| Depth | 6.5" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmental Certification | WEEE |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Expansion Slot Type | SFP |
| Expansion Slot Type | SFP |
| Expansion Slot Type | SFP |
| Height | 3.4" |
| Height | 3.4" |
| Height | 3.4" |
| Limited Warranty | Lifetime |
| Limited Warranty | Lifetime |
| Limited Warranty | Lifetime |
| Manufacturer | Transition Networks Inc |
| Manufacturer | Transition Networks Inc |
| Manufacturer | Transition Networks Inc |
| Manufacturer Part Number | C6120-1040 |
| Manufacturer Part Number | C6120-1040 |
| Manufacturer Part Number | C6120-1040 |
| Manufacturer Website Address | http://www.transition.com |
| Manufacturer Website Address | http://www.transition.com |
| Manufacturer Website Address | http://www.transition.com |
| Marketing Information | The ION C6120 is a managed T1/E1/J1 mux media converter module and provides a solution for those users that need to extend multiple T1/E1/J1 connections along with a 10/100 Ethernet connection all over fiber. The C6120 includes (4) RJ-48 ports (1) 10/100 Ethernet port and (1) fiber port. The device is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types distances and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure. The C6120 converter must be used in pairs. A typical installation will include a modular card installed in a managed ION chassis linked over fiber to a stand-alone S6120 in a remote location. |
| Marketing Information | The ION C6120 is a managed T1/E1/J1 mux media converter module and provides a solution for those users that need to extend multiple T1/E1/J1 connections along with a 10/100 Ethernet connection all over fiber. The C6120 includes (4) RJ-48 ports (1) 10/100 Ethernet port and (1) fiber port. The device is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types distances and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure. The C6120 converter must be used in pairs. A typical installation will include a modular card installed in a managed ION chassis linked over fiber to a stand-alone S6120 in a remote location. |
| Marketing Information | The ION C6120 is a managed T1/E1/J1 mux media converter module and provides a solution for those users that need to extend multiple T1/E1/J1 connections along with a 10/100 Ethernet connection all over fiber. The C6120 includes (4) RJ-48 ports (1) 10/100 Ethernet port and (1) fiber port. The device is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types distances and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure. The C6120 converter must be used in pairs. A typical installation will include a modular card installed in a managed ION chassis linked over fiber to a stand-alone S6120 in a remote location. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | T1/E1/J1 |
| Network Technology | 10/100Base-TX |
| Network Technology | 10/100Base-TX |
| Network Technology | 10/100Base-TX |
| Network Technology | T1/E1/J1 |
| Network Technology | T1/E1/J1 |
| Product Name | C6120 Interface Module |
| Product Name | C6120 Interface Module |
| Product Name | C6120 Interface Module |
| Product Series | C6120 |
| Product Series | C6120 |
| Product Series | C6120 |
| Product Type | Interface Module |
| Product Type | Interface Module |
| Product Type | Interface Module |
| Total Number of Ports | 5 |
| Total Number of Ports | 5 |
| Total Number of Ports | 5 |
| UPC Alternates | 648177034741 |
| UPC Alternates | 648177034741 |
| UPC Alternates | 648177034741 |
| Weight (Approximate) | 1 lb |
| Weight (Approximate) | 1 lb |
| Weight (Approximate) | 1 lb |
| Width | 1.7" |
| Width | 1.7" |
| Width | 1.7" |
