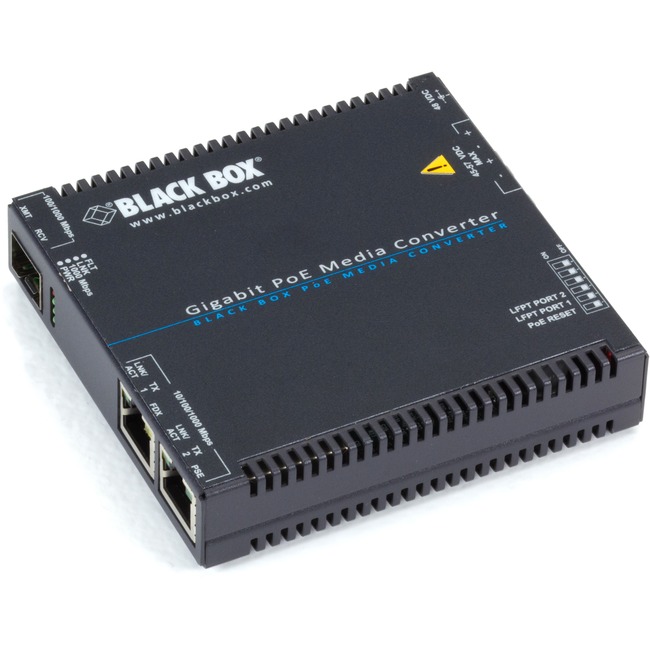

Black Box Gigabit PoE Media Converter, 10/100/1000BASE-T to SFP - Network (RJ-45) - 2x PoE (RJ-45) Ports - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-X - 1 x Expansion Slots - SFP - 1 x SFP Slots - Wall Mountable, Rail-mountable - TAA Compliant
Network (RJ-45) - 2x PoE (RJ-45) Ports - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-X - 1 x Expansion Slots - SFP - 1 x SFP Slots - Wall Mountable, Rail-mountable - TAA Compliant
| Number of PoE (RJ-45) Ports | 2 |
| Number of Total Expansion Slots | 1 |
| Additional Information | This product is covered by one of more of the following: United States Patent Nos. 7457250; 8902760; and/or 9019838. |
| Brand Name | Black Box |
| Country of origin | United States |
| Depth | 3.8" |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP |
| Form factor | Rail-mountable |
| Form factor | Wall Mountable |
| Height | 0.8" |
| Limited Warranty | 6 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LGC5200A |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | Further Details
This tough media converter is the ideal way extend your network over fiber and also power a PoE device. Use it to link to faraway PoE devices such as IP security cameras wireless access points and VoIP phones.
The media converter features two autosensing 10/100/1000 UTP ports plus an SFP port that can be customized to virtually any interface-including multimode fiber single-mode fiber or Gigabit copper-through the use of a standard SFP. One UTP port supports 802.3af Power over Ethernet enabling it to power a PoE PD device; the other is a straightforward Ethernet port which can be used for network expansion.
The Gigabit PoE Media Converter can be powered three ways: from an AC power supply (LGC5200-PS order separately) via the DC power jack or via the DC terminal block. When used with DC power to the terminal block the converter supports an extended operating temperature range of +32 to +158° F (0 to +70° C).
The converter requires only one power source to power both the converter and a PoE+ device; you can position the PoE+ device up to 100 meters (328 feet) away from the converter enabling flexible placement of wireless APs and security cameras. A pair of input terminals and output terminals enables you to cascade DC power in a DIN rail installation (optional DIN Rail Clip (LXC-DR) is sold separately). |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 1000Base-X |
| Network Technology | 10/100/1000Base-TX |
| Package Contents | Media Converter LGC5200A) Power Supply (LGC5200-PS) |
| Power source | AC Adapter |
| Product Name | Gigabit PoE Media Converter 10/100/1000BASE-T to SFP |
| Product Type | Transceiver/Media Converter |
| UPC Alternates | 098379252250 822088107941 |
| USB | No |
| Width | 3.6" |
