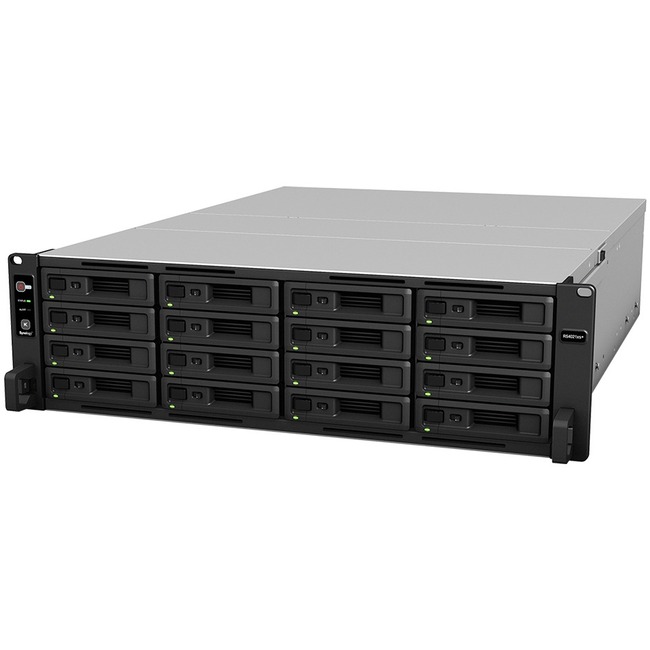

Synology RackStation RS4021XS+ SAN/NAS Storage System - Intel Xeon D-1541 Octa-core (8 Core) 2.10 GHz - 16 x HDD Supported - 0 x HDD Installed - 16 x SSD Supported - 0 x SSD Installed - 16 GB RAM DDR4 SDRAM - Serial ATA Controller - RAID Supported 0, 1, 5, 6, 10, Basic, JBOD, RAID F1 - 16 x Total Bays - 16 x 2.5"/3.5" Bay - Gigabit Ethernet, 10 Gigabit Ethernet - 2 USB Port(s) - Network (RJ-45) - DiskStation Manager - CIFS, AFP, NFS, FTP, WEBDAV, SMB 1.0, SMB 2.0, SMB 3.0, NFSv3, NFSv4, NFS
Intel Xeon D-1541 Octa-core (8 Core) 2.10 GHz - 16 x HDD Supported - 0 x HDD Installed - 16 x SSD Supported - 0 x SSD Installed - 16 GB RAM DDR4 SDRAM - Serial ATA Controller - RAID Supported 0, 1, 5, 6, 10, Basic, JBOD, RAID F1 - 16 x Total Bays - 16 x 2.5"/3.5" Bay - Gigabit Ethernet, 10 Gigabit Ethernet - 2 USB Port(s) - Network (RJ-45) - DiskStation Manager - CIFS, AFP, NFS, FTP, WEBDAV, SMB 1.0, SMB 2.0, SMB 3.0, NFSv3, NFSv4, NFSv4.1, ... - 3U - Rack-mountable
| Maximum Power Supply Wattage | 800 W |
| Number of Hard Drives Installed | 0 |
| Number of Power Supplies Installed | 2 |
| Processor Core | Octa-core (8 Core) |
| Redundant Power Supply | Yes |
| Brand Name | Synology |
| Controller Type | Serial ATA |
| Country of origin | Taiwan |
| Depth | 25.8" |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Form factor | Rack-mountable |
| Height | 5.2" |
| Manufacturer | Synology Inc |
| Manufacturer Part Number | RS4021XS+ |
| Manufacturer Website Address | http://www.synology.com |
| Marketing Information | Securing your business assets The 16-bay RS4021xs+ provides solid data security and lightening-fast performance with over 234K 4K random read IOPS and 6258 MB/s sequential read throughput. Together with its 8-core processor ECC memory advanced snapshot technology and built-in 10GbE connectivity the RS4021xs+ can support large multi-user environments while handling data-intensive workloads. Compute Intel® Xeon® D-1541 8-core 2.1 GHz Networking Built-in dual-port 10GbE Memory 16 GB ECC DDR4 Up to 64 GB Scalability Up to 40 drive bays with RX1217(RP) Engineered for service continuity The RS4021xs+ ensures mission-critical data is always available enabling businesses to deliver the best results even in the face of disaster. Redundant power Dual PSUs provide protection against a PSU failure or accidental cord removal while hot-swappable fans can be replaced without powering down the system. Maximize service availability Synology High Availability (SHA) pairs two identical units together creating an active-passive cluster with minute-level failover. Learn more Next-generation file system Btrfs prevents data corruption and reduces maintenance overheads with advanced storage technologies and optimized snapshots. Learn more Customize to your business The RS4021xs+ includes two PCIe slots for performance networking and storage upgrades enabling it to adapt to any business environment. -
Double bandwidth Upgrade network bandwidth in minutes by 2x or more with Synology's range of 10GbE NICs. -
SSD cache Boost read/write IOPS by up to 16 times by enabling SSD cache with our Synology M.2 NVMe adapter cards and SNV3500 SSDs or by installing one or more 2.5" SAT5200 SSDs. -
Storage expansion Quickly and easily scale up to 40 drives with two RX1217(RP) expansion units. The ultimate backup solutions - license-free
Keep disaster at bay
Hyper Backup A comprehensive backup and recovery solution for securing data stored on Synology servers. Backup data locally to another Synology device rsync server or cloud-based storage such as Google Drive Dropbox S3-compatible destinations and Synology C2. Deduplication integrity checks and incremental transfer technology reduce bandwidth and storage used. Learn more Snapshot Replication Easily schedule flexible point-in-time backups of shared folders and iSCSI LUNs with an RPO as low as 5 minutes and recovery in seconds. Set up replication and failover to other Synology storage systems for fast RTOs and minimal service disruption. Learn more Active Backup Suite Enables administrators to easily backup the entire IT infrastructure to their NAS including Windows & Linux workstations and servers file servers VMware and Hyper-V virtual machines and Microsoft 365 and Google Workspace accounts. Backups benefit from deduplication multiversioning and optimizations to reduce bandwidth and storage used. Learn more |
| Memory Technology | DDR4 SDRAM |
| Number of Network (RJ-45) Ports | 6 |
| Number of Total Expansion Bays | 16 |
| Operating System | DiskStation Manager |
| Packaged Quantity | 1 |
| Processor Manufacturer | Intel |
| Processor model | D-1541 |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon |
| Product Family | RackStation XS |
| Product Line | RackStation |
| Product Name | RackStation RS4021XS+ SAN/NAS Storage System |
| Product Series | XS |
| Product Type | SAN/NAS Storage System |
| Protocols | NFSv4.1 |
| Protocols | SMB 2.0 |
| Protocols | HTTP |
| Protocols | CalDAV |
| Protocols | SMB 1.0 |
| Protocols | NFSv3 |
| Protocols | iSCSI |
| Protocols | HTTPS |
| Protocols | FTP |
| Protocols | DLNA |
| Protocols | AFP |
| Protocols | SNMP |
| Protocols | NFSv4 |
| Protocols | NFS |
| Protocols | CIFS |
| Protocols | LDAP |
| Protocols | SMB 3.0 |
| Protocols | WEBDAV |
| Rack Height | 3U |
| RAID Levels | 0 1 5 6 10 Basic JBOD RAID F1 |
| Standard Memory | 16 GB |
| UPC Alternates | 846504004089 |
| Weight (Approximate) | 38.36 lb |
| Width | 19" |
