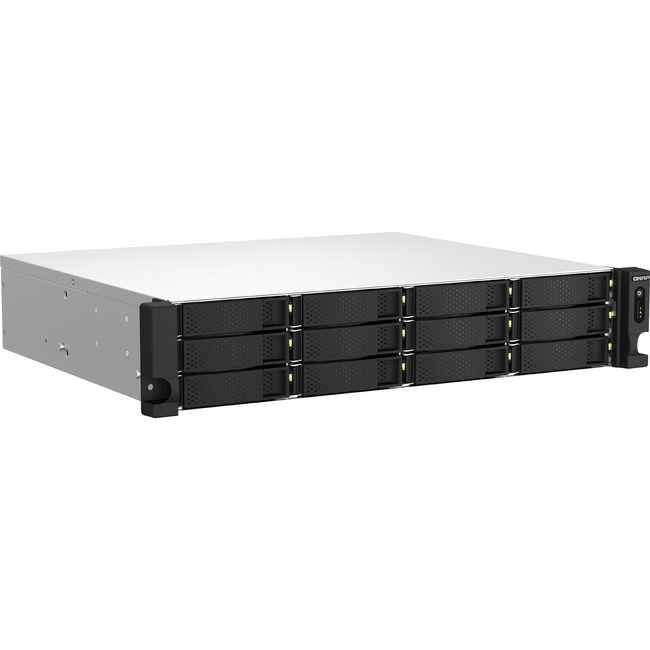

QNAP TS-1264U-RP-8G SAN/NAS Storage System
| $2,190.17 |
- SAN/NAS Storage System offers maximum storage efficiency and convenience
- Holds up to 12 HDDs to let you expand limitlessly
- Through RAID levels (0, 1, 5, 6, 10, 50, 60, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- Experience responsive performance, power, adaptability and fun with Intel Celeron 2 ghz processor
- Rack-mountable san/nas storage system allows maximum space utilization with easy and convenient access and retrieval of the data
- Lets you conveniently connect to the 2.5 gigabit ethernet Ethernet technology to offer maximum productivity
- QTS 5.0.1 OS makes you more productive and creative
Intel Celeron N5095 Quad-core (4 Core) 2 GHz - 12 x HDD Supported - 0 x HDD Installed - 12 x SSD Supported - 0 x SSD Installed - 8 GB RAM - Serial ATA/600 Controller - RAID Supported 0, 1, 5, 6, 10, 50, 60, JBOD - 12 x Total Bays - 12 x 2.5"/3.5" Bay - 1 x Total Slot(s) - 2.5 Gigabit Ethernet - HDMI - 4 USB Port(s) - 2 USB 2.0 Port(s) - Network (RJ-45) - QTS 5.0.1 - LDAP, HTTPS, L2TP, SFTP, DHCP, SSH, IPSec, FTPS, AFP, FTP, CIFS/SMB, ... - 4 GB Flash Memory Capacity - 2U
Product Specifications
| Maximum Power Supply Wattage | 300 W |
| Number of Hard Drives Installed | 0 |
| Number of Power Supplies Installed | 2 |
| Number of Total Expansion Slots | 1 |
| Processor Core | Quad-core (4 Core) |
| Redundant Power Supply | Yes |
| Brand Name | QNAP |
| Controller Type | Serial ATA/600 |
| Depth | 16.7" |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Expansion Slot Type | PCI Express 3.0 x2 |
| Flash Memory Capacity | 4 GB |
| Form factor | Rack-mountable |
| Height | 3.5" |
| Limited Warranty | 3 Year |
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | TS-1264U-RP-8G-US |
| Manufacturer Website Address | http://www.qnap.com |
| Marketing Information | Intel® quad-core rackmount NAS with dual-port 2.5GbE and PCIe expandability for high-speed transmission and virtualization applications Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports. PCIe expandability Install a PCIe Gen3 x2 card to expand the core functionality of the TS-1264U-RP including a Multi-Gig 10GbE/5GbE/2.5GbE network card a QM2 card or a USB 3.2 Gen 2 (10Gbps) card. PCIe expandability Install a PCIe Gen3 x2 card to expand the core functionality of the TS-1264U-RP including a Multi-Gig 10GbE/5GbE/2.5GbE network card a QM2 card or a USB 3.2 Gen 2 (10Gbps) card. Snapshots Protect your files and data from accidental deletion and malware attacks with snapshots that fully record the system status and data. License-free virtualized environment Host multiple containerized apps to run a wide range of applications and services. Drives Auto-Tiering Qtier™ auto-tiering technology and SSD caching enable constant storage optimization. Flexible expansion Scale your storage capacity to fit growing data needs by connecting QNAP's expansion units. Quad-core high performance The TS-1264U-RP is powered by an Intel Celeron N5095 quad-core processor and supports 8 GB DDR4 memory two 2.5GbE ports and SATA 6 Gb/s drives. The integrated Intel® AES-NI encryption engine also helps protect confidential data without impacting system performance. Streamline large file transfers and video editing with 2.5GbE The TS-1264U-RP comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps transmission speeds improving the efficiency of bandwidth-hungry business applications such as large file transfers fast backup/restore and multimedia transfer & editing. |
| Number of Total Expansion Bays | 12 |
| Operating System | QTS 5.0.1 |
| Package Contents |
|
| Processor Manufacturer | Intel |
| Processor model | N5095 |
| Processor Speed | 2 GHz |
| Processor Type | Celeron |
| Product Model | TS-1264U-RP-8G |
| Product Name | TS-1264U-RP-8G SAN/NAS Storage System |
| Product Series | TS-x64 |
| Product Type | SAN/NAS Storage System |
| Protocols | TFTP |
| Protocols | SNMPv2 |
| Protocols | FXP |
| Protocols | SSH |
| Protocols | SFTP |
| Protocols | NFS |
| Protocols | LDAP |
| Protocols | IPv6 |
| Protocols | IPv4 |
| Protocols | CIFS/SMB |
| Protocols | AFP |
| Protocols | SSL |
| Protocols | HTTPS |
| Protocols | FTPS |
| Protocols | FTP |
| Protocols | iSCSI |
| Protocols | Telnet |
| Protocols | IPSec |
| Protocols | DDNS |
| Protocols | L2TP |
| Protocols | PPTP |
| Protocols | WEBDAV |
| Protocols | TLS |
| Protocols | HTTP |
| Protocols | DHCP |
| Rack Height | 2U |
| RAID Levels | 0 1 5 6 10 50 60 JBOD |
| Standard Memory | 8 GB |
| Total Number of USB Ports | 4 |
| UPC Alternates | 885022024766 |
| Weight (Approximate) | 20.79 lb |
| Width | 19" |
