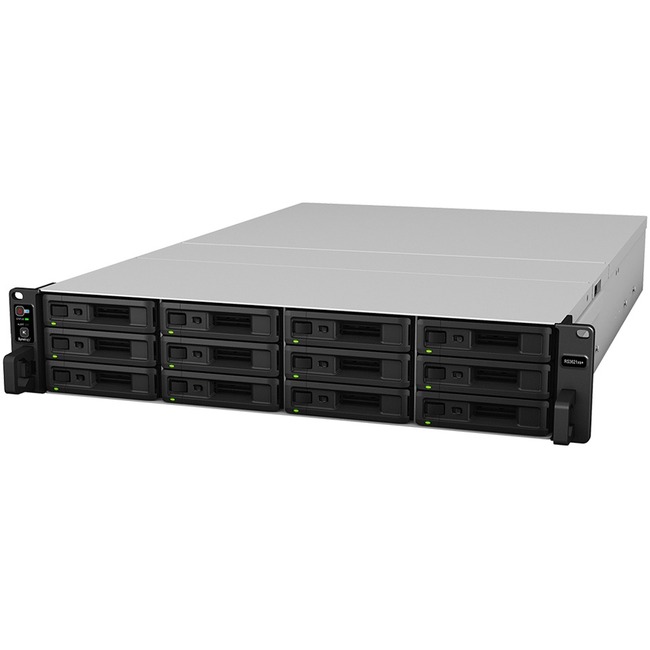

Synology RackStation RS3621XS+ SAN/NAS Storage System - Intel Xeon D-1541 Octa-core (8 Core) 2.10 GHz - 12 x HDD Supported - 0 x HDD Installed - 12 x SSD Supported - 0 x SSD Installed - 8 GB RAM DDR4 SDRAM - Serial ATA Controller - RAID Supported 0, 1, 5, 6, 10, Basic, JBOD, RAID F1 - 12 x Total Bays - 12 x 2.5"/3.5" Bay - 2 x Total Slot(s) - Gigabit Ethernet, 10 Gigabit Ethernet - 2 USB Port(s) - Network (RJ-45) - DiskStation Manager - CIFS, AFP, NFS, FTP, WEBDAV, SMB 1.0, SMB 2.0, SMB 3.0
Intel Xeon D-1541 Octa-core (8 Core) 2.10 GHz - 12 x HDD Supported - 0 x HDD Installed - 12 x SSD Supported - 0 x SSD Installed - 8 GB RAM DDR4 SDRAM - Serial ATA Controller - RAID Supported 0, 1, 5, 6, 10, Basic, JBOD, RAID F1 - 12 x Total Bays - 12 x 2.5"/3.5" Bay - 2 x Total Slot(s) - Gigabit Ethernet, 10 Gigabit Ethernet - 2 USB Port(s) - Network (RJ-45) - DiskStation Manager - CIFS, AFP, NFS, FTP, WEBDAV, SMB 1.0, SMB 2.0, SMB 3.0, NFSv3, NFSv4, NFSv4.1, ... - 2U - Rack-mountable
| Maximum Power Supply Wattage | 500 W |
| Number of Hard Drives Installed | 0 |
| Number of Power Supplies Installed | 2 |
| Processor Core | Octa-core (8 Core) |
| Redundant Power Supply | Yes |
| Brand Name | Synology |
| Controller Type | Serial ATA |
| Country of origin | Taiwan |
| Depth | 28.5" |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | PCI Express 3.0 x8 |
| Form factor | Rack-mountable |
| Height | 3.5" |
| Manufacturer | Synology Inc |
| Manufacturer Part Number | RS3621XS+ |
| Manufacturer Website Address | http://www.synology.com |
| Marketing Information | Accelerate your business operations The 12-bay RS3621xs+ is capable of delivering over 238K 4K random read IOPS and 5819 MB/s sequential read throughput- a true enterprise powerhouse. With full power supply redundancy an 8-core processor ECC memory advanced snapshot technology and file self-healing the RS3621xs+ provides a reliable foundation to any data-driven business. Compute Intel® Xeon® D-1541 8-core 2.1 GHz Networking Built-in dual-port 10GbE Memory 8 GB ECC DDR4 Up to 64 GB Scalability Up to 36 drive bays with RX1217(RP) Storage you can trust The RS3621xs+ keeps your data protected while you concentrate on delivering the best results to your customers - even when disaster strikes. Redundant power Dual PSUs provide protection against a PSU failure or accidental cord removal while hot-swappable fans allow them to be replaced without powering down the system. Maximize service availability Synology High Availability (SHA) pairs two identical units together creating an active-passive cluster with minute-level failover. Next-generation file system Btrfs prevents data corruption and reduces maintenance overheads with advanced storage technologies and optimized snapshots. Tailored to your business The RS3621xs+ includes two PCIe slots for performance networking and storage upgrades enabling it to adapt to any business environment. -
Double bandwidth Upgrade network bandwidth in minutes by 2x or more with Synology's range of 10GbE NICs. -
SSD cache Boost read/write IOPS by up to 16 times by enabling SSD cache with our Synology M.2 NVMe adapter cards and SNV3500 SSDs or by installing one or more 2.5" SAT5200 SSDs. -
Storage expansion Quickly and easily scale up to 36 drives with two RX1217(RP) expansion units. License-free data protection
Keep disaster at bay Hyper Backup A comprehensive backup and recovery solution for securing data stored on Synology servers. Backup data locally to another Synology device rsync server or cloud-based storage such as Google Drive Dropbox S3-compatible destinations and Synology C2. Deduplication integrity checks and incremental transfer technology reduce bandwidth and storage used. Snapshot Replication Easily schedule flexible point-in-time backups of shared folders and iSCSI LUNs with an RPO as low as 5 minutes and recovery in seconds. Set up replication and failover to other Synology storage systems for fast RTOs and minimal service disruption. Active Backup Suite Enables administrators to easily backup the entire IT infrastructure to their NAS including Windows & Linux workstations and servers file servers VMware and Hyper-V virtual machines and Microsoft 365 and Google Workspace accounts. Backups benefit from deduplication multiversioning and optimizations to reduce bandwidth and storage used. |
| Memory Technology | DDR4 SDRAM |
| Number of Network (RJ-45) Ports | 6 |
| Number of Total Expansion Bays | 12 |
| Operating System | DiskStation Manager |
| Packaged Quantity | 1 |
| Processor Manufacturer | Intel |
| Processor model | D-1541 |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon |
| Product Family | RackStation XS+ |
| Product Line | RackStation |
| Product Name | RackStation RS3621XS+ SAN/NAS Storage System |
| Product Series | XS+ |
| Product Type | SAN/NAS Storage System |
| Protocols | FTP |
| Protocols | NFSv3 |
| Protocols | SMB 2.0 |
| Protocols | iSCSI |
| Protocols | WEBDAV |
| Protocols | SMB 1.0 |
| Protocols | SNMP |
| Protocols | HTTPS |
| Protocols | DLNA |
| Protocols | SMB 3.0 |
| Protocols | HTTP |
| Protocols | NFSv4.1 |
| Protocols | NFSv4 |
| Protocols | AFP |
| Protocols | NFS |
| Protocols | CIFS |
| Protocols | CalDAV |
| Protocols | LDAP |
| Rack Height | 2U |
| RAID Levels | 0 1 5 6 10 Basic JBOD RAID F1 |
| Standard Memory | 8 GB |
| UPC Alternates | 846504004072 |
| Weight (Approximate) | 31.97 lb |
| Width | 19" |
