Tripp Lite 40kVA Smart Online 3-Phase UPS Medium Frame Modular 4 Batteries - 10 Minute Full Load - 22 Minute Half Load - 40 kVA / 36 kW - SNMP Manageable, Telnet, SSHHardwired - Input Voltage: 120 V AC, 230 V AC - Output Voltage: 120 V AC, 230 V AC - Tower
10 Minute Full Load - 22 Minute Half Load - 40 kVA / 36 kW - SNMP Manageable, Telnet, SSHHardwired - Input Voltage: 120 V AC, 230 V AC - Output Voltage: 120 V AC, 230 V AC - Tower
| Phase | Three Phase |
| Waveform Type | Pure Sine Wave |
| Backup/Run Time (Full Load) | 10 Minute |
| Backup/Run Time (Half Load) | 22 Minute |
| Brand Name | Tripp Lite |
| Country of origin | China |
| Depth | 43.3" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Tower |
| Height | 79.1" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Limited Warranty | 2 Year |
| Load Capacity | 40 kVA |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SV40KM2P4B |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | The SV40KM2P4B SmartOnline® SV Series 40kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure uninterrupted power protection. Featuring a modular scalable design with high-efficiency voltage and frequency independent (VFI) operation this on-line UPS system is ideal for protecting a variety of critical IT systems.
The SV40KM2P4B includes pre-installed input bypass and output breakers as well as a static transfer switch (STS) two 20kVA SV20PM power modules and four SVBM battery modules. Space is included for up to two additional user-installable SV20PM power modules. External ±120VDC battery options such as BP240V370 are also available from Tripp Lite for even more extended runtime.
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring configuration control and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.
With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode this 40kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Front-panel display offers full UPS condition and status reporting. |
| Network Management | SNMP Manageable |
| Network Management | Telnet |
| Network Management | SSH |
| Package Contents | - SmartOnline SV40KM2P4B 40kVA Tower UPS
- DB9 Cabling
- Pre-installed WEBCARDLX Network Interface
- 2 x SV20PM 20kVA Power Modules
- 4 x SVBM Battery Modules
- Owner's Manual
|
| Plug/Connector Type | Hardwired |
| Product Family | SmartOnline SV |
| Product Line | SmartOnline |

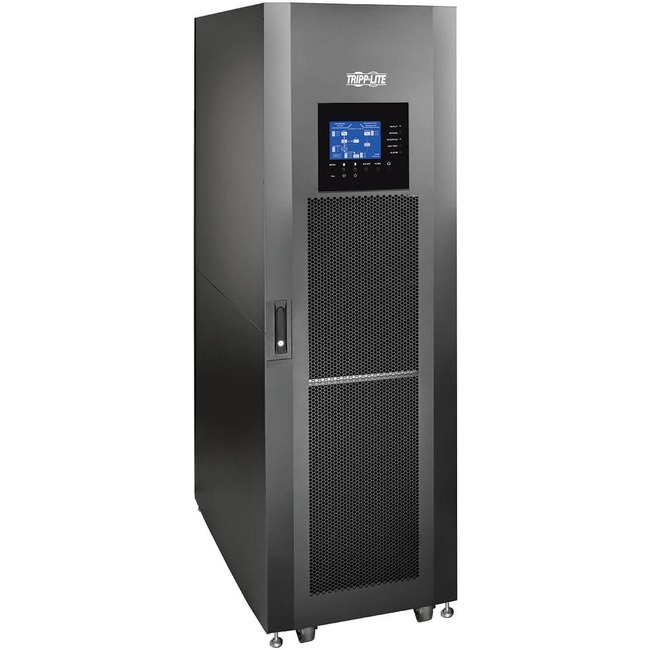

| Product Name | SmartOnline SV40KM2P4B 40kVA Tower UPS |
| Product Series | SV |
| Product Type | Dual Conversion Online UPS |
| UPC Alternates | 037332213129 |
| Weight (Approximate) | 1675.01 lb |
| Width | 23.6" |
