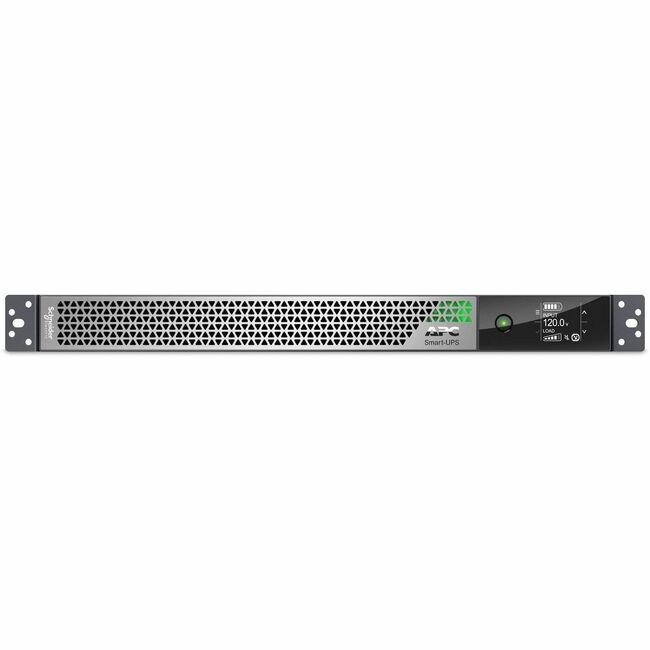

APC by Schneider Electric Smart-UPS Ultra Rack/Tower/Wall/Ceiling/Desktop Mountable 2200VA UPS
| $4,728.39 Retail $6,665.00 |
- Replacement battery (1) is available
- 1U, 2200VA/1950W UPS with 5 mounting styles: rack/tower/wall/ceiling/desk under mount
- Lithium-ion batteries lasts 3X VRLA UPS, no need to replace the battery during the life of the UPS
- EcoStruxure™ Ready for remote monitoring and management
- Wireless communication capable with optional WiFi Device accessory (AP9834)
- 5-year warranty on UPS and internal batteries
1U Rack/Tower/Wall/Ceiling/Desktop Mountable - 1.50 Hour Recharge - 6.05 Minute Stand-by - 120 V AC Input - 120 V AC, 125 V AC Output - Sine Wave - USB - LCD Display - 3 x NEMA 5-20R, 1 x NEMA L5-20R
Product Specifications
| Battery Energy | 1123.2 kJ |
| Load Capacity (VA) | 2200 VA |
| Load Capacity (W) | 2200 W |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Output Frequency | 60 Hz |
| Receptacle Detail | 3 x NEMA 5-20R |
| Receptacle Detail | 1 x NEMA L5-20R |
| Storage Relative Humidity | 0% - 95% |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Waveform Type | Sine Wave |
| Alarm | Yes |
| Application/Usage | Retail |
| Application/Usage | Voice/Data Network |
| Application/Usage | Server |
| Application/Usage | Medical Laboratory |
| Application/Usage | Light Industrial Application |
| Backup/Run Time (Full Load) | 6.05 Minute |
| Backup/Run Time (Half Load) | 12.65 Minute |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Size | 50V |
| Brand Name | APC by Schneider Electric |
| Depth | 22" |
| Display | LCD |
| Environmental Certification | EU RoHS |
| Environmental Certification | WEEE |
| Environmental Certification | REACH |
| Environmental Certification | China RoHS |
| Environmental Certification | Green Premium |
| Form factor | Rack/Tower/Wall/Ceiling/Desktop Mountable |
| Height | 1.7" |
| Input voltage | 120 V AC |
| Limited Warranty | 5 Year |
| Load Capacity | 2200 VA/2200 W |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRTL2K2RM1UNC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Marketing Information | Features Benefits
Applications Smart-UPS Ultra provides ultra-high density On-Line power protection with Lithium-ion batteries for servers voice / data networks retail medical labs and light industrial applications. |
| Maximum Operating Temperature | 104°F (40°C) |
| Network Management | Network Card |
| Output voltage | 125 V AC |
| Package Contents |
|
| Packaged Quantity | 1 |
| Plug/Connector Type | NEMA 5-20P |
| Product color | Silver Gray |
| Product Line | Smart-UPS Ultra |
| Product Name | Smart-UPS Ultra Rack/Tower/Wall/Ceiling/Desktop Mountable 2200VA UPS |
| Product Type | Double Conversion Online UPS |
| Rack Height | 1U |
| Receptacle Type | NEMA 5-20R |
| Receptacle Type | NEMA L5-20R |
| Sound Emission | 55 dB |
| Typical Battery Recharge Time | 1.50 Hour |
| UPC Alternates | 731304435563 |
| Weight (Approximate) | 35.05 lb |
| Width | 17" |
