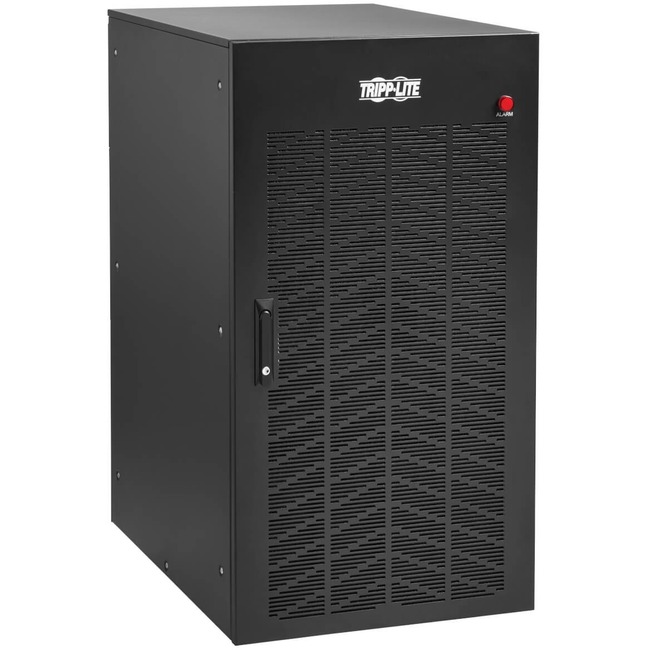

Tripp Lite UPS 3-Phase Smart Online 100kVA Input Isolation Transformer 600V

Name: Tripp Lite UPS 3-Phase Smart Online 100kVA Input Isolation Transformer 600V
Brand: Tripp Lite by Eaton
SKU: 8YL057
Price: 9696.05 USD

New

Tripp Lite UPS 3-Phase Smart Online 100kVA Input Isolation Transformer 600V - 100 kVA - 600 V AC Input - 600 V AC Output

0 Review(s) Item: S3MT-100K600V | By: Tripp Lite | 0 In Stock

Sorry This Product is Currently not Available to Buy.

Recommended for government, manufacturing, healthcare and corporate settings
Up to 97.7% efficiency with a quiet acoustic profile less than 65 dBA
Resettable protection relay/switch and red LED indicator warn against overheating
Rugged stainless steel housing with compact footprint comes ready for installation
Compatible with 80-100kVA/kW Tripp Lite S3M-Series 208V 3-phase UPS systems
2-year limited warranty

More Details

Sorry This Product is Currently not Available to Buy.

You may be also interested

Description
Reviews

Tripp Lite UPS 3-Phase Smart Online 100kVA Input Isolation Transformer 600V - 100 kVA - 600 V AC Input - 600 V AC Output
100 kVA - 600 V AC Input - 600 V AC Output

Product Specifications

Input Receptacles	Hardwired
Input Receptacles	Hardwired
Shipping Depth	37.80"
Shipping Depth	37.80"
Shipping Height	55.10"
Shipping Height	55.10"
Shipping Width	27.60"
Shipping Width	27.60"
Additional Information	Input Voltage Range : (-45% +25%) for 40% load (-20% +25%) for 100% load Input Amp(s) : 134 A AC Input Configuration : Delta AC Input Frequency : 50/60 Frequency Range : 40/70Hz Voltage Selection : NONE Input Inrush Current : 1160 A VA Rating : 100K Input Number of Phases : 3PH AC Output Voltage (V) : 600 V AC Output Amps 374 A Output Number of Phases : 3PH + N AC Output Configuration : WYE Output Isolation : Yes Output Breaker Rating : 400 A Connection Type : COPPER BAR
Additional Information	Input Voltage Range : (-45% +25%) for 40% load (-20% +25%) for 100% load Input Amp(s) : 134 A AC Input Configuration : Delta AC Input Frequency : 50/60 Frequency Range : 40/70Hz Voltage Selection : NONE Input Inrush Current : 1160 A VA Rating : 100K Input Number of Phases : 3PH AC Output Voltage (V) : 600 V AC Output Amps 374 A Output Number of Phases : 3PH + N AC Output Configuration : WYE Output Isolation : Yes Output Breaker Rating : 400 A Connection Type : COPPER BAR
Brand Name	Tripp Lite
Brand Name	Tripp Lite
Compatibility	Tripp Lite 80-100kVA/kW S3M-Series 208V 3-Phase UPS System
Compatibility	Tripp Lite 80-100kVA/kW S3M-Series 208V 3-Phase UPS System
Country of origin	China
Country of origin	China
Depth	33.5"
Depth	33.5"
Environmental Certification	RoHS
Environmental Certification	RoHS
Environmentally Friendly	Yes
Environmentally Friendly	Yes
Form factor	Tower
Form factor	Tower
Height	47.2"
Height	47.2"
Input voltage	600 V AC
Input voltage	600 V AC
Limited Warranty	2 Year
Limited Warranty	2 Year

Manufacturer	Tripp Lite by Eaton
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	S3MT-100K600V
Manufacturer Part Number	S3MT-100K600V
Manufacturer Website Address	http://www.tripplite.com
Manufacturer Website Address	http://www.tripplite.com
Marketing Information	Get Complete Step-Down/Step-Up and Isolation Protection Tripp Lite's S3MT-100K600V 100kVA/kW transformer offers line isolation and protection to the connected 3-phase UPS system and its load. It isolates the UPS and connected components from line surges and spikes caused by utility power disruptions that can damage equipment or corrupt data. The step-down input isolation transformer is ideal for 4-wire (3Ph+N+PE) IT loads in government manufacturing healthcare and corporate settings with a 600V electrical feed and 208/120V equipment. Performs with High Efficiency up to 97.7% Not only is the S3MT-100K600V very efficient with up to 97.7 percent efficiency but it is also very quiet with a noise profile less than 65 dBA. A built-in circuit breaker on the output side helps prevent dangerous power overloads. Three ball-bearing cooling fans help prevent overheating. An overheat-sensing relay and switch combine with a red LED indicator to provide over-temperature warning and overheating protection. Small Footprint for Quick Installation in a Compact Space The compact footprint enables installation of the S3MT-100K600V with minimal space. The rugged stainless steel housing ships ready for immediate tower installation with a compatible 80-100kVA/kW Tripp Lite S3M-Series 208V 3-phase UPS system.
Marketing Information	Get Complete Step-Down/Step-Up and Isolation Protection Tripp Lite's S3MT-100K600V 100kVA/kW transformer offers line isolation and protection to the connected 3-phase UPS system and its load. It isolates the UPS and connected components from line surges and spikes caused by utility power disruptions that can damage equipment or corrupt data. The step-down input isolation transformer is ideal for 4-wire (3Ph+N+PE) IT loads in government manufacturing healthcare and corporate settings with a 600V electrical feed and 208/120V equipment. Performs with High Efficiency up to 97.7% Not only is the S3MT-100K600V very efficient with up to 97.7 percent efficiency but it is also very quiet with a noise profile less than 65 dBA. A built-in circuit breaker on the output side helps prevent dangerous power overloads. Three ball-bearing cooling fans help prevent overheating. An overheat-sensing relay and switch combine with a red LED indicator to provide over-temperature warning and overheating protection. Small Footprint for Quick Installation in a Compact Space The compact footprint enables installation of the S3MT-100K600V with minimal space. The rugged stainless steel housing ships ready for immediate tower installation with a compatible 80-100kVA/kW Tripp Lite S3M-Series 208V 3-phase UPS system.
Package Contents	SmartOnline S3MT-100K600V Isolation Transformer 4 x Bottom Skirts 24 x Screws Owner's Manual
Package Contents	SmartOnline S3MT-100K600V Isolation Transformer 4 x Bottom Skirts 24 x Screws Owner's Manual
Power Rating	100 kVA
Power Rating	100 kVA
Product Line	SmartOnline
Product Line	SmartOnline
Product Name	SmartOnline S3MT-100K600V Isolation Transformer
Product Name	SmartOnline S3MT-100K600V Isolation Transformer
Product Series	S3MT
Product Series	S3MT
Product Type	Isolation Transformer
Product Type	Isolation Transformer
Shipping Weight (Approximate)	1102 lb
Shipping Weight (Approximate)	1102 lb
System Requirements
System Requirements
UPC Alternates	037332253170
UPC Alternates	037332253170
Weight (Approximate)	1049 lb
Weight (Approximate)	1049 lb
Width	23.6"
Width	23.6"

Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.
