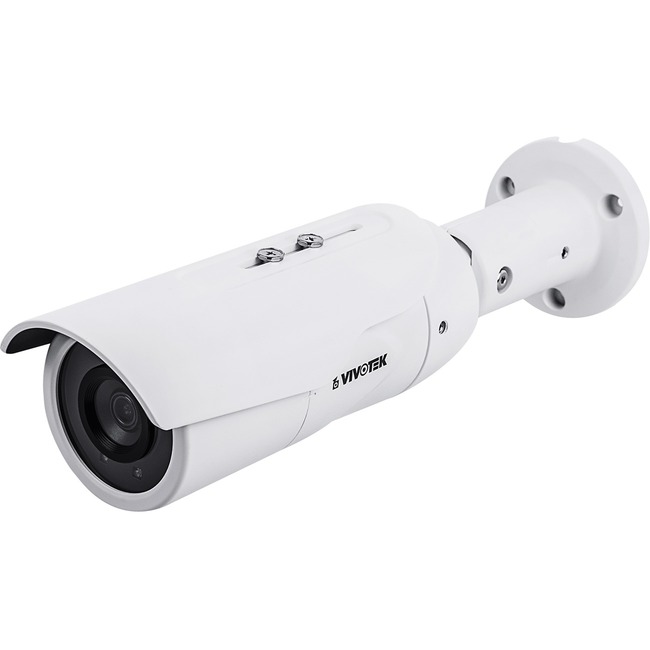

Vivotek IB9389-EH-V2 5 Megapixel Outdoor Network Camera - Color - Bullet - TAA Compliant - 98.43 ft Infrared Night Vision - H.265, H.264, MJPEG - 2560 x 1920 - 3.60 mm Fixed Lens - CMOS - Pole Mount, Corner Mount, Junction Box Mount - IK10 - IP66 - Vandal Proof, Weather Proof
98.43 ft Infrared Night Vision - H.265, H.264, MJPEG - 2560 x 1920 - 3.60 mm Fixed Lens - CMOS - Pole Mount, Corner Mount, Junction Box Mount - IK10 - IP66 - Vandal Proof, Weather Proof
| Field of View | 76° (Horizontal) 56° (Vertical) 100° (Diagonal) |
| Impact Protection Rating | IK10 |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP66 |
| Maximum Aperture | f/2 |
| Maximum Illumination | 0 lux |
| Minimum Operating Temperature | -40°F (-40°C) |
| Network (RJ-45) | Yes |
| Night Vision Distance | 98.43 ft |
| Night Vision Type | Infrared |
| Number of IR LEDs | 4 |
| Operating Humidity | 98% |
| Brand Name | Vivotek |
| Color Supported | Color |
| Connectivity technology | Wired |
| Diameter | 3.4" |
| Durability | Weather Proof |
| Durability | Vandal Proof |
| Effective Camera Resolution | 5 Megapixel |
| Features | Motion Detection |
| Features | Password Protection |
| Features | Audio Detection |
| Features | Electronic Image Stabilization |
| Features | Face Detection |
| Features | Defog |
| Features | Cross Line Detection |
| Features | 3D Noise Reduction |
| Features | White Balance |
| Features | Privacy Masking |
| Features | Day/Night |
| Features | Shock Detection |
| Features | SD Card Local Storage |
| Features | Gain Control |
| Features | Built-in Microphone |
| Features | Built-in Infrared Illuminator |
| Features | Audio Compression |
| Features | Wide Dynamic Range |
| Features | Human Detection |
| Features | Highlight Compensation (HLC) |
| Features | Back Light Compensation (BLC) |
| Form factor | Bullet |
| Image Sensor Type | CMOS |
| Lens Type | Fixed |
| Limited Warranty | 36 Month |
| Longest Shutter Speed | 1/5 Second |
| Manufacturer | Vivotek Inc |
| Manufacturer Part Number | IB9389-EH_V2 |
| Manufacturer Website Address | http://www.vivotek.com |
| Marketing Information | VIVOTEK's IB9389 series is a H.265 bullet network camera equipped with a 5-Megapixel sensor enabling resolution of 2560x1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology the IB9389 series is capable of capturing high-quality imagery in both high-contrast and low-light environments.
The IB9389 series offers various lens options for different user scenarios: fixed focus manual focus and remote focus lenses. The camera is equipped with IR illuminators with a 30-meter effective range for better night visibility. To provide reliable coverage in harsh outdoor environments the IB9389 series is encased in IP66 and IK10 housing.
The IB9389 series comes with VIVOTEK's Smart Stream III technology and H.265 codec suppor t. It is capable of reducing bandwidth consumption to 90% while maintaining supreme image quality. Additionally VIVOTEK's VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in the diversified surveillance market. |
| Maximum Focal Length | 3.60 mm |
| Maximum frame rate | 60 fps |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Video Resolution | 2560 x 1920 |
| Mount Type | Junction Box Mount |
| Mount Type | Corner Mount |
| Mount Type | Pole Mount |
| Package Contents | - IB9389-EH-V2 Network Camera
- Quick Installation Guide
- Alignment Sticker
- Screw Pack
|
| Product Model | IB9389-EH-V2 |
| Product Name | IB9389-EH-V2 Network Camera |
| Product Series | IB9389 |
| Product Type | Network Camera |
| Shortest Shutter Speed | 1/32000 Second |
| Storage Type | Memory Card |
| Video Formats | H.264 |
| Video Formats | MJPEG |
| Video Formats | H.265 |
| Weight (Approximate) | 2.20 lb |
