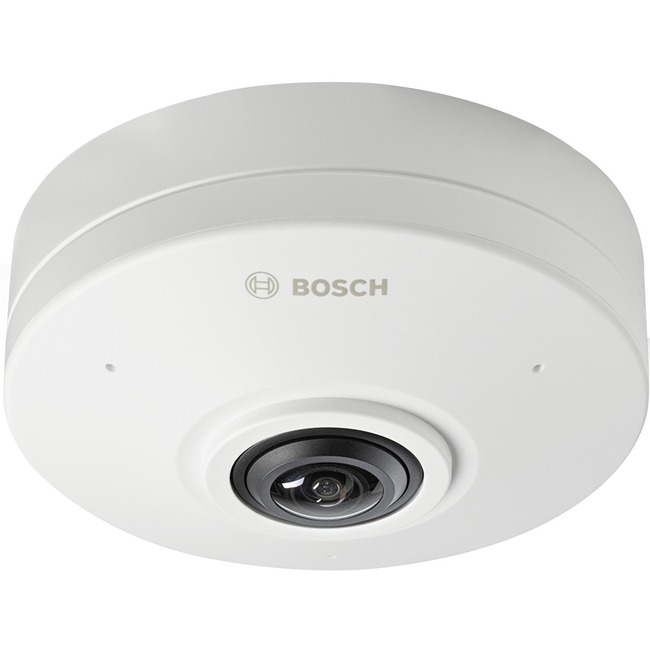

Bosch FlexiDome 6 Megapixel Indoor/Outdoor Full HD Network Camera - Color, Monochrome - Dome - Infrared Night Vision - H.265, H.264, Motion JPEG, H.265 (HEVC) - 1920 x 1080 - 1.16 mm Fixed Lens - CMOS - HDMI - Surface Mount, Pendant Mount, Wall Mount, Pipe Mount, Ceiling Mount, Pole Mount, Tilted Mount, Corner Mount, In-ceiling - IK08 - Vandal Resistant, Impact Resistant
Infrared Night Vision - H.265, H.264, Motion JPEG, H.265 (HEVC) - 1920 x 1080 - 1.16 mm Fixed Lens - CMOS - HDMI - Surface Mount, Pendant Mount, Wall Mount, Pipe Mount, Ceiling Mount, Pole Mount, Tilted Mount, Corner Mount, In-ceiling - IK08 - Vandal Resistant, Impact Resistant
| Field of View | 182° (H) x 182° (V) |
| Impact Protection Rating | IK08 |
| Indoor/Outdoor | Indoor/Outdoor |
| Lens Mount Type | Board Mount |
| Maximum Aperture | f/2.0 |
| Minimum Operating Temperature | 14°F (-10°C) |
| Night Vision Type | Infrared |
| Operating Humidity | 100% |
| Brand Name | Bosch |
| Color Supported | Color |
| Color Supported | Monochrome |
| Connectivity technology | Wired |
| Country of origin | Thailand |
| Diameter | 4.3" |
| Durability | Impact Resistant |
| Durability | Vandal Resistant |
| Effective Camera Resolution | 6 Megapixel |
| Environmental Certification | EU RoHS |
| Environmental Certification | China RoHS |
| Environmental Certification | EU WEEE |
| Environmentally Friendly | Yes |
| Features | Privacy Masking |
| Features | Wide Dynamic Range |
| Features | Region of Interest |
| Features | Dynamic Noise Reduction |
| Features | Back Light Compensation (BLC) |
| Features | Video Content Analytics |
| Features | Automatic White Balance |
| Features | Day/Night |
| Form factor | Dome |
| Height | 1.9" |
| Image Sensor Type | CMOS |
| Lens Type | Fixed |
| Longest Shutter Speed | 1/25 Second |
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | NDS-5703-F360 |
| Manufacturer Website Address | http://www.bosch.com |
| Marketing Information | The NDS-5703-F360 is a vandal resistant discreet aesthetic panoramic camera for indoor and outdoor surveillance without blind spots. Its stereographic panoramic lens provides full 360° coverage without blind spots ideal for surveillance applications that require wide area coverage in a single detailed view. The camera offers full situational awareness and simultaneous high-resolution zoomed-in images. The high-end system on chip (SoC) provides dewarping for easy integration and flexible viewing and recording. Built-in Intelligent Video Analytics enriches full situational awareness and triggers relevant alerts. Audio AI gives meaning to the sounds it captures. With its video output for HDMI-compatible devices it can be directly connected to a Public View Monitor making it a perfect fit for a retail environment. Functions | 6MP sensor resolution
The camera offers a 6MP sensor to optimize for the amount of details required. This offers 30 fps to ensure real-time motion in your scenes. Together with its stereographic lens the image circle offers a 4.5MP effective resolution. Panoramic vision and Intelligent Video Analytics
Combining Bosch Intelligent Video Analytics software with full panoramic vision produces an extremely powerful surveillance tool which enriches full situational awareness. With intelligent tracking movement can be followed continuously throughout the full image circle. There is no need to hand off tracking from one camera to another greatly simplifying movement analysis. The system reliably detects tracks and analyzes objects and alerts you when predefined alarms are triggered. A smart set of alarm rules makes complex tasks easy and reduces false alarms to a minimum. Specifically designed for the most demanding environments. It is extremely resistant to false triggers caused by challenging environments with snow wind (moving trees) rain hail and water reflections. Calibration is quick and easy - just enter the mounting height of the camera. The internal gyro/accelerometer sensor provides the rest of the information to precisely calibrate the video analytics. |
| Maximum Focal Length | 1.16 mm |
| Maximum frame rate | 30 fps |
| Maximum Operating Temperature | 113°F (45°C) |
| Maximum Video Resolution | 1920 x 1080 |
| Mount Type | Pipe Mount |
| Mount Type | Corner Mount |
| Mount Type | Ceiling Mount |
| Mount Type | Tilted Mount |
| Mount Type | Surface Mount |
| Mount Type | Wall Mount |
| Mount Type | Pole Mount |
| Mount Type | Pendant Mount |
| Mount Type | In-ceiling |
| Package Contents | - NDS-5703-F360 Fixed dome 6MP 360º FLEXIDOME Panoramic 5100i
- 1 x Camera Base
- 1 x Camera Cover
- 1 x TR15 Allen Key for microSD Slot Lock
- 1 x Quick Installation Guide
- 1 x Safety Information
- 3 x Installer UX Labels
|
| Power source type | PoE |
| Product color | White |
| Product Family | FlexiDome 5100i |
| Product Line | FlexiDome |
| Product Name | NDS-5703-F360 Fixed dome 6MP 360º FLEXIDOME Panoramic 5100i |
| Product Series | 5100i |
| Product Type | Network Camera |
| Recording Formats | Full HD |
| Shortest Shutter Speed | 1/500 Second |
| Storage Type | Memory Card |
| UPC Alternates | 800549974110 |
| Video Formats | Motion JPEG |
| Video Formats | H.265 |
| Video Formats | H.264 |
| Video Formats | H.265 (HEVC) |
| Weight (Approximate) | 10.93 oz |
