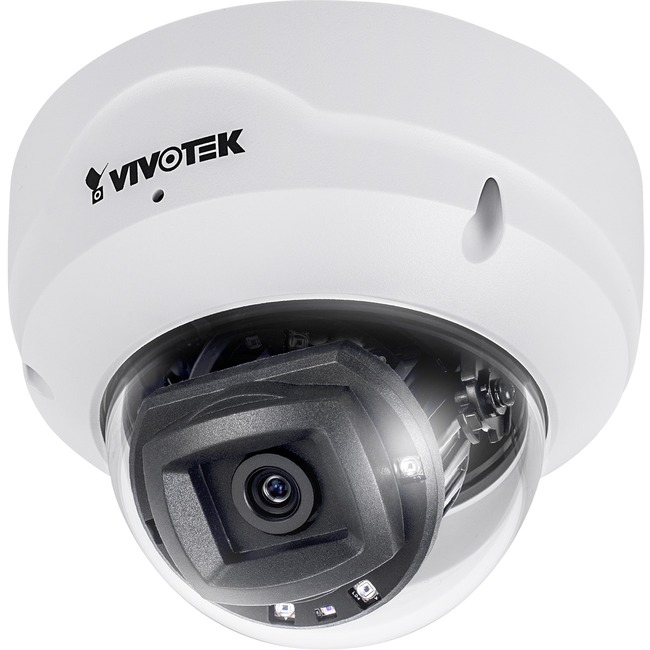

Vivotek FD9189-HT-v2 5 Megapixel Indoor Network Camera - Color - Dome - TAA Compliant - 98.43 ft Infrared Night Vision - H.264, MJPEG, H.265 - 2560 x 1920 - 2.80 mm- 10 mm Varifocal Lens - 3.6x Optical - CMOS
98.43 ft Infrared Night Vision - H.264, MJPEG, H.265 - 2560 x 1920 - 2.80 mm- 10 mm Varifocal Lens - 3.6x Optical - CMOS
Field of View | 95° ~ 41° (Horizontal) 69° ~ 31° (Vertical) 127° ~ 51° (Diagonal) |
Indoor/Outdoor | Indoor |
Maximum Aperture | f/2.74 |
Minimum Aperture | f/1.8 |
Minimum Focal Length | 2.80 mm |
Minimum Operating Temperature | 14°F (-10°C) |
Network (RJ-45) | Yes |
Night Vision Distance | 98.43 ft |
Night Vision Type | Infrared |
Number of IR LEDs | 4 |
Operating Humidity | 90% |
Brand Name | Vivotek |
Color Supported | Color |
Connectivity technology | Wired |
Diameter | 5.1" |
Effective Camera Resolution | 5 Megapixel |
Features | SD Card Local Storage |
Features | Day/Night |
Features | Built-in Microphone |
Features | Wide Dynamic Range |
Features | Back Light Compensation (BLC) |
Features | Password Protection |
Features | Face Detection |
Features | Audio Detection |
Features | Motion Detection |
Features | Highlight Compensation (HLC) |
Features | Audio Compression |
Features | Cross Line Detection |
Features | Electronic Image Stabilization |
Features | Defog |
Features | Shock Detection |
Features | Privacy Masking |
Features | Gain Control |
Features | Built-in Infrared Illuminator |
Features | White Balance |
Features | 3D Noise Reduction |
Form factor | Dome |
Image Sensor Type | CMOS |
Lens Type | Varifocal |
Limited Warranty | 36 Month |
Longest Shutter Speed | 1/5 Second |
Manufacturer | Vivotek Inc |
Manufacturer Part Number | FD9189-HT-v2 |
Manufacturer Website Address | http://www.vivotek.com |
Marketing Information | VIVOTEK's FD9189-v2 series is a H.265 indoor dome network camera equipped with a 5-Megapixel sensor enabling resolution of 2560x1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology the FD9189-v2 series is capable of capturing high-quality imagery in both high-contrast and low-light environments.
The FD9189-v2 series offers two lens options for different user scenarios: fixed-focal and remote focus lenses. The camera is equipped with IR illuminators with a 30-meter effective range for better night visibility.
The FD9189-v2 series comes with VIVOTEK's Smart Stream III technology and H.265 codec support. It is capable of reducing bandwidth consumption to 90% while maintaining supreme image quality. Additionally VIVOTEK's VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in the diversified surveillance market. |
Maximum Focal Length | 10 mm |
Maximum frame rate | 60 fps |
Maximum Operating Temperature | 122°F (50°C) |
Maximum Video Resolution | 2560 x 1920 |
Optical zoom | 3.6x |
Package Contents | - FD9189-HT-v2 Network Camera
- Quick Installation Guide
- Alignment Sticker
- Screw Pack
|
Product Name | FD9189-HT-v2 Network Camera |
Product Series | FD9189-v2 |
Product Type | Network Camera |
Shortest Shutter Speed | 1/32000 Second |
Storage Type | Memory Card |
Video Formats | H.264 |
Video Formats | H.265 |
Video Formats | MJPEG |
Weight (Approximate) | 12.52 oz |
