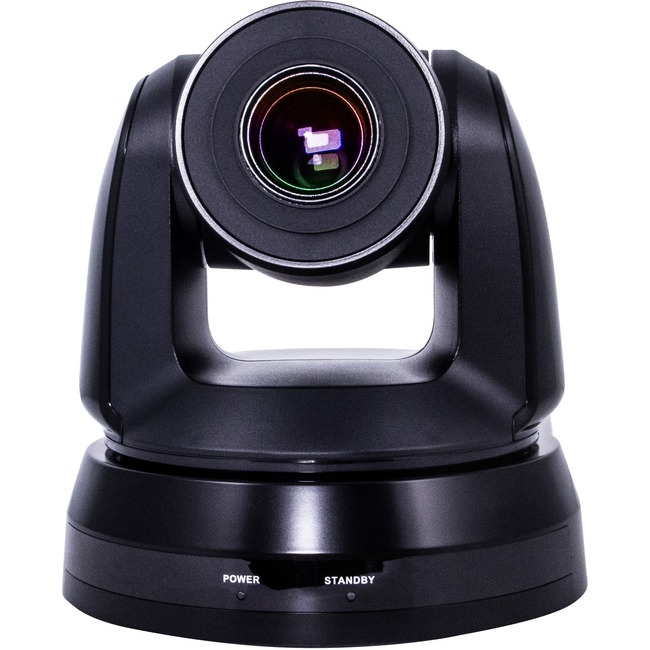

Marshall CV620 2 Megapixel Full HD Surveillance Camera - Color - 1920 x 1080 - 5.30 mm- 110 mm Zoom Lens - 20x Optical - CMOS - HDMI - Wall Mount, Ceiling Mount
1920 x 1080 - 5.30 mm- 110 mm Zoom Lens - 20x Optical - CMOS - HDMI - Wall Mount, Ceiling Mount
| Analog Video Signal Format | 3G-SDI |
| Analog Video Signal Format | 3G/HD-SDI |
| Maximum Aperture | f/1.6 |
| Minimum Aperture | f/3.8 |
| Minimum Focal Length | 5.30 mm |
| Brand Name | Marshall |
| Color Supported | Color |
| Connectivity technology | Wired |
| Effective Camera Resolution | 2 Megapixel |
| Features | White Balance |
| Features | PTZ |
| HDMI | Yes |
| Image Sensor Type | CMOS |
| Input voltage | 12 V DC |
| Lens Type | Zoom |
| Manufacturer | Marshall Electronics Inc |
| Manufacturer Part Number | CV620-BK4 |
| Manufacturer Website Address | http://www.mars-cam.com |
| Marketing Information | The 4th generation Marshall CV620 HD PTZ Camera captures crisp HD video with the added versatility of a smooth pan-tilt-zoom chassis and 20X optical zoom block. Designed for high performance applications including broadcast television live events corporate installations and more. Additionally the CV620 includes precise picture adjustment settings and professional 3G/HDSDI and HDMI outputs for convenient integration and installation.
Crisp HD Video Output
The CV620 is built around a professional-grade 2-Megapixel 1/2.8-inch sensor with smooth 20x Optical Zoom (5.3~110mm) outputting HD video up to 1920x1080p 1920x1080i and 1280x720p at 60fps. Versatile Camera Positioning
The CV620 is equipped with synchronous pan tilt and zoom motors for smooth and silent camera movements during operation. A 20X optical zoom block provides flexibility from 5.3mm to 110mm maintaining image crispness in wide and tight shots. Professional Outputs and Control Interface
Simultaneous 3G/HDSDI and HDMI outputs with control options over RS-422 RS-232 or IR remote control provide flexibility for inclusion in most modern workflows. Flexible Control Options
The CV620 offers easy control over iris shutter white balance focus pan/tilt speeds and more controllable by IR remote RS-232 or RS-422 with support for control protocols including Visca Pelco and more.
Additionally the CV620 is compatible with Marshall's VS-PTC-IP PTZ Camera Controller providing intuitive adjustment of pan/tilt/zoom pan/tilt speeds white balance and more with one button dials and rocker control. |
| Maximum Focal Length | 110 mm |
| Maximum frame rate | 60 fps |
| Maximum Video Resolution | 1920 x 1080 |
| Mount Type | Wall Mount |
| Mount Type | Ceiling Mount |
| Optical zoom | 20x |
| Package Contents | - 20x HD60 3G/HDI PTZ Camera
- Ceiling Mount
|
| Product color | Black |
| Product Model | CV620 |
| Product Name | 20x HD60 3G/HDI PTZ Camera |
| Product Type | Surveillance Camera |
| Recording Formats | Full HD |
| Weight (Approximate) | 4.41 lb |
