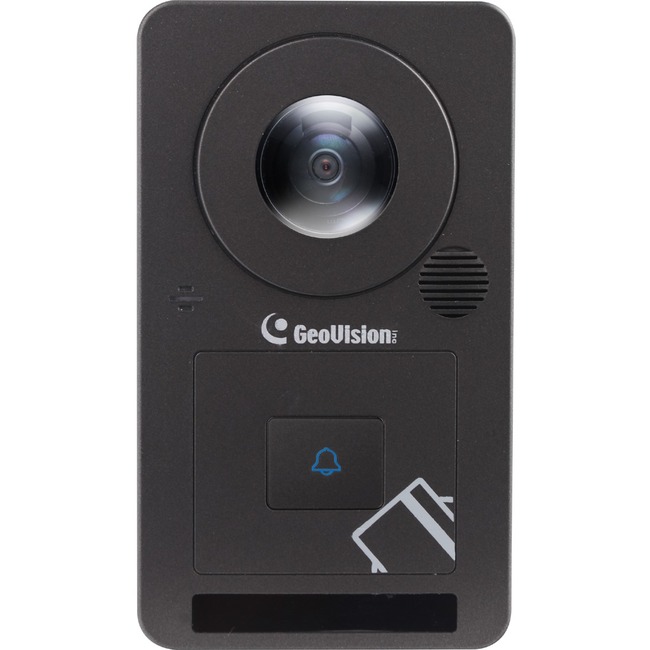

GeoVision 2MP H.264 IP Camera Reader - 2 Megapixel - CMOS - 180° Horizontal0 lux - Gate Entrance, Access Control, Door Entry
2 Megapixel - CMOS - 180° Horizontal0 lux - Gate Entrance, Access Control, Door Entry
| Camera Resolution | 2 Megapixel |
| Additional Information | Camera:
- Picture Elements: 1920 (H) x 1080 (V)
- Shutter Speed: Automatic Manual (1/5 ~ 1/8000 sec)
- White Balance: Automatic Manual (2800K ~ 8500K)
- S/N Ratio: 52 db
Lens:
- Day / Night function: Yes (with removable IR-cut filter)
- Lens Type: Fixed
- Focal Length: 1.7 mm
- Maximum Aperture: F/2.5
- Mount: M12
- Image Format: 1/2.8"
- IR LED Quantity: 2
- Max. IR Distance: 3 m (9.84 ft.)
Operation:
- Video Compressio:n H.264 MJPEG
- Video Streaming: Dual streams from H.264 and MJPEG
- Video Resolution:
- Stream 1: 1920 x 1080 (16:9)
- Stream 2: 640 x 360 (16:9)
- Frame Rate: 15 fps at 1920 x 1080
- Image Setting: Brightness Contrast Saturation Sharpness Gamma White Balance Image Orientation Shutter Speed
- Audio Compression: G.711
Network:
- Interface: 10/100 Ethernet
- Protocol: DHCP DynDNS FTP HTTP HTTPS NTP PSIA QoS (DSCP) RTSP SIP SMTP SNMP TCP UDP UPnP 3GPP/ISMA
Mechanical:
- Local Storage: Micro SD card
- Connectors:
- Power: 2-pin terminal block
- Ethernet: Ethernet (10/100 Base-T) RJ-45 Connector
- Audio: Built-in microphone and speaker
- RS-485: RS-485 + RS-485
General:
- Operating Temperature: -10 ~ 50 °C (14 ~ 122 °F)
- Humidity: 10% to 90% (no condensation)
- Ingress Protection: IP66
Reader:
- CPU: 32-bit RISC microprocessor
- Frequency: 13.56 MHz for ISO14443A (Mifare DESFire Mifare Plus and Mifare Classic)
- RS-485 Interface: 1 RS-485 interface for GV-WTR
- TCP/IP Interface: 1 TCP/IP interface for GV-AS controller
- Communication Protocol: TCP/IP
- Digital I/O:
- 2 inputs dry contact NO/NC
- 1 relay output (30V DC 0.5A)
- ID Formats: GID and UID
|
| Application/Usage | Access Control |
| Application/Usage | Door Entry |
| Application/Usage | Gate Entrance |
| Brand Name | GeoVision |
| Certifications & Standards | |
| Compatibility | Compatible GV-ASManager and GV-AS Controller:
- GV-ASManager: V5.1.0 or later
- GV-AS210 / 2110 / 2111: V2.20 or later
- GV-AS410 / 4110 / 4111: V2.20 or later
- GV-AS810 / 8110 / 8111: V2.20 or later
- GV-AS1520: V2.02 or later
- GV-AS1620: V1.00 or later
- GV-CS1320: V3.00 or later
|
| Depth | 1.4" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 5.4" |
| Horizontal Viewing Angle | 180° |
| Image Sensor Type | CMOS |
| Input voltage | 12 V DC |
| Manufacturer | GeoVision Inc |
| Manufacturer Part Number | GV-CR1320 |
| Manufacturer Website Address | http://www.geovision.com.tw |
| Marketing Information | GV-CR1320 is a 13.56 MHz card reader with a built-in 2 MP camera. GV-CR1320 recognizes access control cards and grants access as regulated by the connected controller. Its camera captures the live view of entrance and transmits it to the access control system GV-ASManager through network connection without the need of installing and maintaining a separate camera in addition to the card reader. VoIP Calls:
When the touchpad is activated GV-CR1320 will place a call to the operator through VoIP. The operator can then communicate with the visitor and enter an access code to open the door.
Card Swiping plus Face Detection:
The Card and Face mode enables GV-CR1320 to perform face detection together with card verification before access can be granted. |
| Minimum Illumination | 0 lux |
| Package Contents | - 2MP H.264 IP Camera Reader
- Mounting Plate
- 2 x Standard Screws
- 2 x Plastic Screw Anchors
- Security Screw
- Torx Wrench
- Silica Gel Bag
- Micro SD Card 2 GB (Inserted and Formatted)
- Download Guide
- Warranty Card
|
| Power consumption | 25.50 W |
| Product Name | 2MP H.264 IP Camera Reader |
| Product Type | Video Door Phone Sub Station |
| Weight (Approximate) | 11.11 oz |
| Width | 3.1" |
