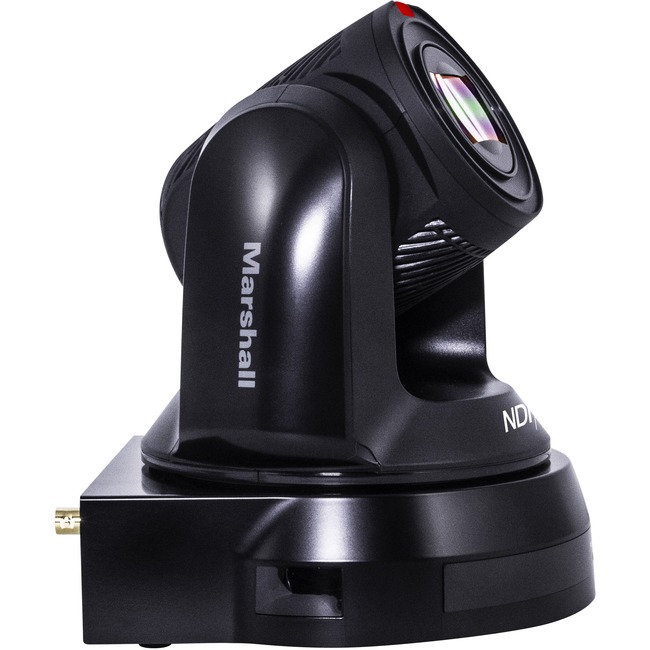

Marshall CV630-NDI 8.5 Megapixel 4K Network Camera - Color - H.264, H.265 (HEVC) - 3840 x 2160 - 4.60 mm- 135 mm Zoom Lens - 30x Optical - CMOS - HDMI - Wall Mount, Ceiling Mount
H.264, H.265 (HEVC) - 3840 x 2160 - 4.60 mm- 135 mm Zoom Lens - 30x Optical - CMOS - HDMI - Wall Mount, Ceiling Mount
| Analog Video Signal Format | 3G-SDI |
| Field of View | 70° |
| Maximum Aperture | f/3.5 |
| Minimum Aperture | f/1.6 |
| Minimum Focal Length | 4.60 mm |
| Brand Name | Marshall |
| Color Supported | Color |
| Connectivity technology | Wired |
| Effective Camera Resolution | 8.5 Megapixel |
| Features | PTZ |
| Features | Automatic White Balance |
| HDMI | Yes |
| Image Sensor Type | CMOS |
| Input voltage | 12 V DC |
| Lens Type | Zoom |
| Manufacturer | Marshall Electronics Inc |
| Manufacturer Part Number | CV630-NDI |
| Manufacturer Website Address | http://www.mars-cam.com |
| Marketing Information | The Marshall CV630-IP PTZ Camera captures crisp UHD video combined with smooth PTZ camera positioning and 30X optical zoom for a versatile networked video solution. NDI®|HX provides low latency high quality frame-accurate video and audio in real time to IP workflows. NDI® Tools opens up the ability to integrate more video devices and applications into your NDI production workflow.
High Performance Video Output
Featuring NDI HX with simultaneous HDMI and 3GSDI from a professional level 8-megapixel UHD sensor and smooth synchronous movements. At its core the CV630-IP packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video at 30fps with support for HD resolutions.
Versatile Camera Positioning
The CV630-NDI is equipped with synchronous pan tilt and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm with a nearly 70-degree angle-of-view at its widest through close-ups at long distances. Simultaneous Networked and Streaming Outputs
Multiple simultaneous video streams are available over HDMI 3G-SDI and NDI HX. Install one-cable to camera with NDI HX for all functions simple connect to any Ethernet port - THAT'S IT - or use Ethernet for Power/Preview and other outputs (3GSDI/HDMI) for simultaneous workflows for streaming production or archiving. Flexible Control Options
The CV630-NDI offers easy control over broadcast settings controllable from NDI Tools such as NDI Studio Monitor and other NDI Tools which opens the ability to integrate more networked video sources into your production workflow. Additionally the CV630-NDI is compatible with Marshall's VS-PTC-IP PTZ Camera Controller providing intuitive adjustment of pan/tilt/zoom pan/tilt speeds white balance and more with one button dials and rocker control. |
| Maximum Focal Length | 135 mm |
| Maximum frame rate | 30 fps |
| Maximum Video Resolution | 3840 x 2160 |
| Mount Type | Ceiling Mount |
| Mount Type | Wall Mount |
| Optical zoom | 30x |
| Product color | Black |
| Product Name | 30x UHD30 NDI PTZ Camera |
| Product Type | Network Camera |
| Recording Formats | 4K |
| Video Formats | H.264 |
| Video Formats | H.265 (HEVC) |
| Weight (Approximate) | 4.40 lb |
