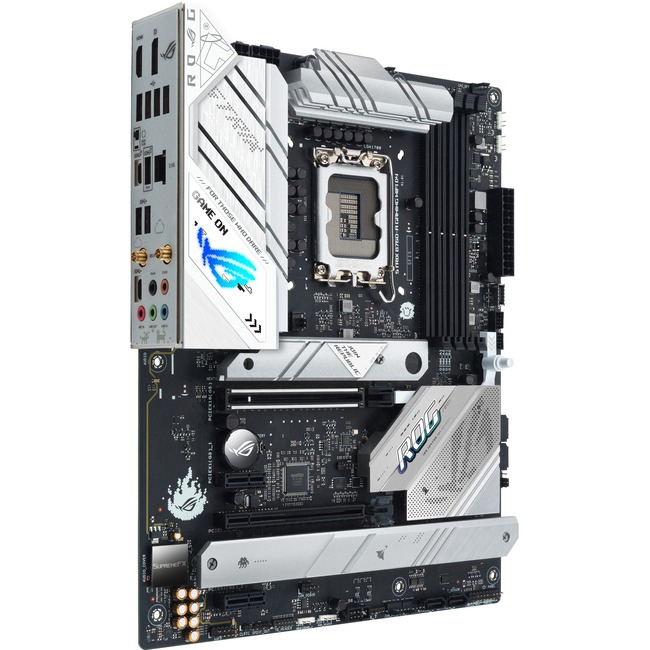

Asus ROG Strix B760-A GAMING WIFI D4 Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX
| $231.57 Retail $239.99 |
- Compatible Core processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Supported 0 RAID levels provide data reliability and fault tolerance
- IEEE 802.11 a/b/g/n/ac/ax wireless standard support lets you connect to the internet and have instant access to social media, music, movies, and online games
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Thunderbolt host interface provides a fast and reliable transfer of information from your computer to the connected devices
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports t
Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
Product Specifications
| Bluetooth Standard | Bluetooth 5.3 |
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| HDMI Version | 2.1 |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 4000 MHz |
| Memory Speed Supported | 5066 MHz |
| Memory Speed Supported | 3200 MHz |
| Memory Speed Supported | 3400 MHz |
| Memory Speed Supported | 3333 MHz |
| Memory Speed Supported | 3000 MHz |
| Memory Speed Supported | 2666 MHz |
| Memory Speed Supported | 4800 MHz |
| Memory Speed Supported | 4600 MHz |
| Memory Speed Supported | 3733 MHz |
| Memory Speed Supported | 2800 MHz |
| Memory Speed Supported | 5000 MHz |
| Memory Speed Supported | 4400 MHz |
| Memory Speed Supported | 2133 MHz |
| Memory Speed Supported | 3466 MHz |
| Memory Speed Supported | 5333 MHz |
| Memory Speed Supported | 4266 MHz |
| Memory Speed Supported | 2933 MHz |
| Memory Speed Supported | 2400 MHz |
| Memory Speed Supported | 3600 MHz |
| Number of Memory Slots | 4 |
| Number of Onboard USB 2.0 Ports | 3 |
| Number of PCI Express x1 Slots | 2 |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 5.0 |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express Standard | PCI Express 3.0 |
| Processor Generation Supported | 13th Gen |
| Processor Generation Supported | 12th Gen |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Pentium Gold |
| Processor Supported | Celeron |
| Processor Supported | Core |
| S/PDIF | Yes |
| Total Number of Onboard USB Ports | 6 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Audio Channels | 7.1 |
| Brand Name | Asus ROG |
| Controller Type | Serial ATA/600 |
| Depth | 9.6" |
| Form factor | ATX |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROG STRIX B760-A GAMING WIFI D4 |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | On its face the Strix B760-A D4 wears a light aesthetic but beneath its grey aluminum heatsinks lies a dark PCB flush with high-performance hardware. A VRM configuration equipped to handle high-core-count Intel® 13th Gen processors PCIe 5.0 bandwidth for graphics cards and next-gen WiFi 6E team up to bring devilishly good gaming to this heavenly board. PCIE® SLOT Q-RELEASE A physical button unlocks the first PCIe slot's security latch with one press greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device. M.2 Q-LATCH The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive eliminating the need for a traditional screw. BIOS FLASHBACK™ BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick plug it into the USB BIOS FlashBack port and press the button. Updates can even be performed without having memory or a CPU installed. Q-LED Four onboard LEDs indicate power status and identify problems with CPU memory graphics card or boot device for quick diagnosis. ALL-ROUND PERFORMANCE The neat aesthetics of the Strix B760-A D4 were no distraction when crafting this motherboard's power delivery and thermal arrays. You'll get a fully fledged gaming experience and then some with this beast. POWER ARCHITECTURE 12 + 1 power stages deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease. ALLOY CHOKES AND DURABLE CAPACITORS High-end chokes and durable capacitors are engineered to resist extreme temperatures enabling performance that exceeds industry standards. SIX-LAYER PCB A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability. OPTIMEM II OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance and it adds shielding zones that significantly reduce crosstalk. VRM HEATSINK ARRAYCovering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13th Gen processors. M.2 HEATSINKS Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability. CPU FAN HEADERS Positioned near the top of the motherboard a pair of PWM/DC fan headers give easy access for CPU coolers. AIO PUMP FAN HEADER A dedicated PWM/DC header connects self-contained water-cooling setups. |
| Memory form factor | DIMM |
| Memory form factor | UDIMM |
| Memory Technology | DDR4 SDRAM |
| Product Line | Strix |
| Product Model | B760-A GAMING WIFI D4 |
| Product Name | Strix B760-A GAMING WIFI D4 Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| RAID Levels | 5 |
| RAID Levels | 10 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| Total Number of USB Ports | 9 |
| Width | 12" |
