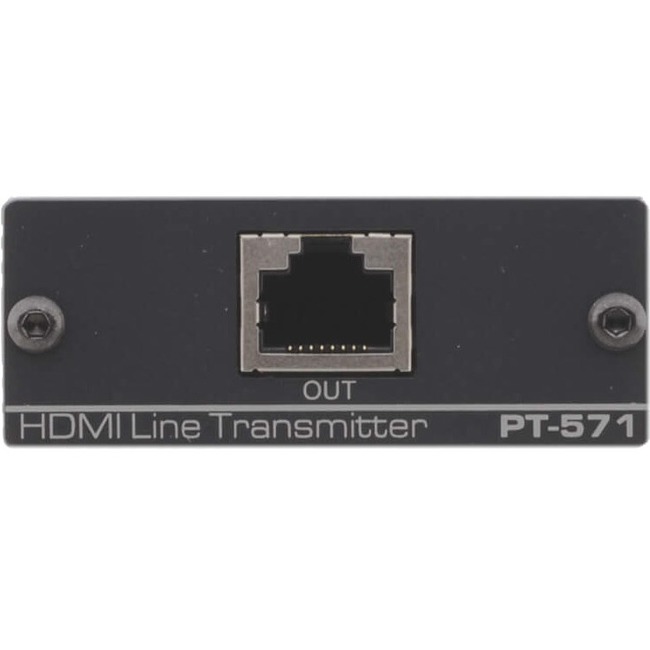

Kramer HDMI HDCP 2.2 Compact Transmitter over PoC Long-Reach DGKat - 1 Input Device - 1 Output Device - 295.28 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1080p, 1080i - Twisted Pair - Rack-mountable
1 Input Device - 1 Output Device - 295.28 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1080p, 1080i - Twisted Pair - Rack-mountable
| Network (RJ-45) | Yes |
| Transmitter Depth | 2.04" |
| Transmitter Height | 0.96" |
| Transmitter Weight (Approximate) | 3.53 oz |
| Transmitter Width | 2.45" |
| Brand Name | Kramer |
| Connectivity technology | Wired |
| Form factor | Rack-mountable |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | 90-70832090 |
| Manufacturer Website Address | http://www.kramerelectronics.com |
| Marketing Information | The PT-571 is a twisted pair transmitter for HDMI signals. The PT-571 converts an HDMI signal to a single twisted pair signal and the PT-572 converts the twisted pair signal back to an HDMI signal.
FEATURES
Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel)
HDTV Compatible
HDCP Compliant
DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables
HDMI Support
3D Pass-Through
System Range - Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables. Note: Transmission range depends on the signal resolution graphics card and display used. If using third-party shielded CAT cables both ends of the shield must be soldered to the connectors for the products to function properly
EDID PassThru - Passes EDID signals between the source and display
Status LED - Lights red when receiving power only orange when output and power are attached and yellow when both an active input and output are attached
Power Connect™ System - A single connection to the transmitter powers the receiver
Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel) HDTV Compatible HDCP Compliant DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables HDMI Support 3D Pass-Through System Range - Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables. Note: Transmission range depends on the signal resolution graphics card and display used. If using third-party shielded CAT cables both ends of the shield must be soldered to the connectors for the products to function properly EDID PassThru - Passes EDID signals between the source and display Status LED - Lights red when receiving power only orange when output and power are attached and yellow when both an active input and output are attached Power Connect™ System - A single connection to the transmitter powers the receiver Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter |
| Maximum Operating Distance | 295.28 ft |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents | - HDMI HDCP 2.2 Compact Transmitter Over PoC Long-Reach DGKat
- Power Supply
|
| Product Model | PT-571 |
| Product Name | HDMI HDCP 2.2 Compact Transmitter over PoC Long?Reach DGKat |
| Product Type | Video Extender Transmitter |
| Supported video modes | 1080i |
| Supported video modes | 1080p |
